Cylinder Head (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA S/C Enhanced) of Land Rover Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2014+) [5.0 OHC SGDI SC V8 Petrol] - Cylinder Head (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA...

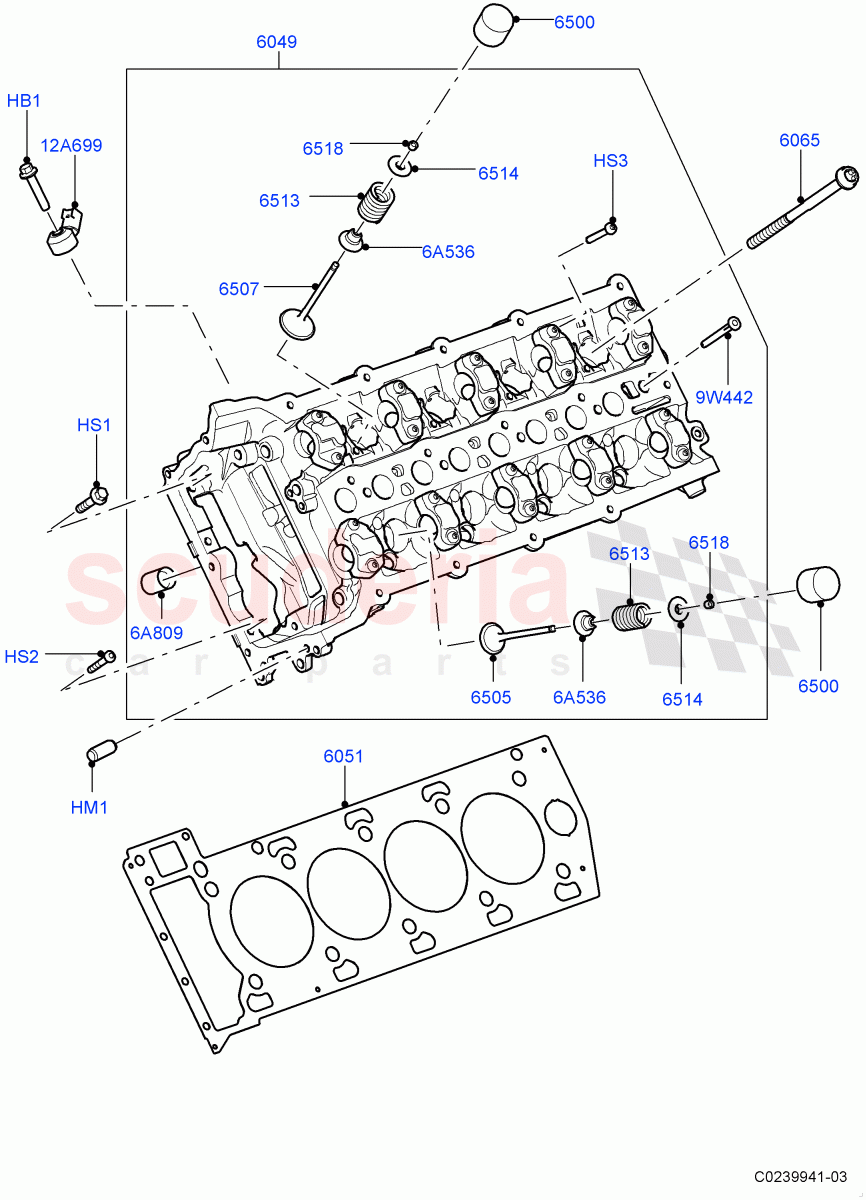

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR010903	BOLT	$3.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000505	DOWEL	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011700	SCREW	$1.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010905	SCREW	$1.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011271	SCREW	$1.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR038754	CYLINDER HEAD	$3,044.22	To Order
	LR038755	CYLINDER HEAD	$2,984.54	To Order
	LR082798	CYLINDER HEAD	$3,059.15	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR105294	GASKET-CYLINDER HEAD	$109.77	To Order
	LR181763	GASKET - CYLINDER HEAD	$109.77	To Order
	LR084186	GASKET-CYLINDER HEAD	$109.77	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR026143	BOLT - HEX.HEAD	$6.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037205	TAPPET - VALVE	$12.18	To Order
	LR037211	TAPPET - VALVE	$11.48	To Order
	LR037229	TAPPET - VALVE	$11.00	To Order

...and 47 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR035551	VALVE - EXHAUST	$33.40	To Order
	LR055528	VALVE - EXHAUST	$29.88	To Order
	LR082739	VALVE - EXHAUST	$30.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010863	VALVE - INLET	$38.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038167	SPRING - VALVE	$60.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010702	RETAINER - VALVE SPRING	$4.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008878	COLLET - VALVE SPRING RETAINER	$1.37	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR038164	Seat - Spring	Enquire	To Order
	LR054369	SEAT - SPRING	$5.30	To Order
	LR078819	SEAT - SPRING	$5.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077674	VALVE - CHECK	$9.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011996	TUBE - DRAIN	$7.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008877	SENSOR - ENGINE KNOCK	$112.55	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR010903	BOLT	LR010903 BOLT knock sensor, M8 x 40MM	$3.13	4
HM1	LR000505	DOWEL	LR000505 DOWEL 6 x 14MM, Pin - Dowell	$0.47	4
HS1	LR011700	SCREW IN STOCK	LR011700 SCREW M8 X 35MM IN STOCK	$1.40	2
HS2	LR010905	SCREW IN STOCK	LR010905 SCREW M6 x 35MM IN STOCK	$1.16	4
HS3	LR011271	SCREW IN STOCK	LR011271 SCREW M6 x 30MM IN STOCK	$1.24	40
6A536	LR038164	Seat - Spring	LR038164 Seat - Spring To: EA300637	-	32	Enquire
6A536	LR054369	SEAT - SPRING	LR054369 SEAT - SPRING From: EA300638 / To: GA550003	$5.30	32
6A536	LR078819	SEAT - SPRING	LR078819 SEAT - SPRING From: GA550004	$5.26	32
6A809	LR077674	VALVE - CHECK	LR077674 VALVE - CHECK	$9.66	1
9W442	LR011996	TUBE - DRAIN	LR011996 TUBE - DRAIN Drain	$7.08	2
12A699	LR008877	SENSOR - ENGINE KNOCK	LR008877 SENSOR - ENGINE KNOCK	$112.55	4
6049	LR038754	CYLINDER HEAD	LR038754 CYLINDER HEAD RH / To: EA299999	$3,044.22	1
6049	LR038755	CYLINDER HEAD	LR038755 CYLINDER HEAD LH / To: EA299999	$2,984.54	1
6049	LR082798	CYLINDER HEAD	LR082798 CYLINDER HEAD RH / From: EA300000 / To: GA568918	$3,059.15	1
6049	LR082799	CYLINDER HEAD	LR082799 CYLINDER HEAD LH / From: EA300000 / To: GA568918	$3,059.15	1
6049	LR101117	CYLINDER HEAD	LR101117 CYLINDER HEAD RH / From: GA568919 / To: HA999999	$2,735.83	1
6049	LR101118	CYLINDER HEAD	LR101118 CYLINDER HEAD LH / From: GA568919 / To: HA999999	$2,609.84	1
6049	LR101929	CYLINDER HEAD	LR101929 CYLINDER HEAD RH / From: JA000001	$2,277.76	1
6049	LR101930	CYLINDER HEAD	LR101930 CYLINDER HEAD LH / From: JA000001	$2,704.09	1
6051	LR105294	GASKET-CYLINDER HEAD	LR105294 GASKET-CYLINDER HEAD RH / To: EA299999	$109.77	1
6051	LR181763	GASKET - CYLINDER HEAD	LR181763 GASKET - CYLINDER HEAD LH / To: EA299999	$109.77	1
6051	LR084186	GASKET-CYLINDER HEAD	LR084186 GASKET-CYLINDER HEAD RH / From: EA300000 / To: GA568918	$109.77	1
6051	LR084185	GASKET-CYLINDER HEAD	LR084185 GASKET-CYLINDER HEAD LH / From: EA300000 / To: GA568918	$109.77	1
6051	LR105294	GASKET-CYLINDER HEAD	LR105294 GASKET-CYLINDER HEAD RH / From: GA568919	$109.77	1
6051	LR181763	GASKET - CYLINDER HEAD	LR181763 GASKET - CYLINDER HEAD LH / From: GA568919	$109.77	1
6065	LR026143	BOLT - HEX.HEAD	LR026143 BOLT - HEX.HEAD M11 X 178	$6.42	20
6500	LR037205	TAPPET - VALVE	LR037205 TAPPET - VALVE 2.950mm	$12.18	-
6500	LR037211	TAPPET - VALVE	LR037211 TAPPET - VALVE 2.965MM	$11.48	-
6500	LR037229	TAPPET - VALVE	LR037229 TAPPET - VALVE 2.98MM	$11.00	-
6500	LR037243	TAPPET - VALVE	LR037243 TAPPET - VALVE 2.995MM	$11.00	-
6500	LR037252	TAPPET - VALVE	LR037252 TAPPET - VALVE 3.010MM	$10.09	-
6500	LR037253	TAPPET - VALVE	LR037253 TAPPET - VALVE 3.025MM	$9.70	-
6500	LR037254	TAPPET - VALVE	LR037254 TAPPET - VALVE 3.040MM	$12.18	-
6500	LR037258	TAPPET - VALVE	LR037258 TAPPET - VALVE 3.055MM	$11.09	-
6500	LR037262	TAPPET - VALVE	LR037262 TAPPET - VALVE 3.070MM	$10.66	-
6500	LR037264	TAPPET - VALVE	LR037264 TAPPET - VALVE 3.085MM	$12.18	-
6500	LR037267	TAPPET - VALVE	LR037267 TAPPET - VALVE 3.100MM	$12.18	-
6500	LR037269	TAPPET - VALVE	LR037269 TAPPET - VALVE 3.115MM	$11.60	-
6500	LR037272	TAPPET - VALVE	LR037272 TAPPET - VALVE 3.130MM	$11.60	-
6500	LR037275	TAPPET - VALVE	LR037275 TAPPET - VALVE 3.145MM	$12.18	-
6500	LR037279	TAPPET - VALVE	LR037279 TAPPET - VALVE 3.160MM	$11.60	-
6500	LR037284	TAPPET - VALVE	LR037284 TAPPET - VALVE 3.175MM	$11.60	-
6500	LR037286	TAPPET - VALVE	LR037286 TAPPET - VALVE 3.190MM	$11.66	-
6500	LR037287	TAPPET - VALVE	LR037287 TAPPET - VALVE 3.205MM	$12.18	-
6500	LR037288	TAPPET - VALVE	LR037288 TAPPET - VALVE 3.220MM	$12.02	-
6500	LR037289	TAPPET - VALVE	LR037289 TAPPET - VALVE 3.235MM	$11.66	-
6500	LR037292	TAPPET - VALVE	LR037292 TAPPET - VALVE 3.250MM	$11.66	-
6500	LR037298	TAPPET - VALVE	LR037298 TAPPET - VALVE 3.265MM	$12.18	-
6500	LR037306	TAPPET - VALVE	LR037306 TAPPET - VALVE 3.280MM	$11.66	-
6500	LR037307	TAPPET - VALVE	LR037307 TAPPET - VALVE 3.295MM	$12.18	-
6500	LR037308	TAPPET - VALVE IN STOCK	LR037308 TAPPET - VALVE 3.310MM IN STOCK	$12.18	-
6500	LR037309	TAPPET - VALVE	LR037309 TAPPET - VALVE 3.325MM	$12.18	-
6500	LR037310	TAPPET - VALVE IN STOCK	LR037310 TAPPET - VALVE 3.340MM IN STOCK	$12.18	-
6500	LR037311	TAPPET - VALVE IN STOCK	LR037311 TAPPET - VALVE 3.355MM IN STOCK	$11.66	-
6500	LR037312	TAPPET - VALVE	LR037312 TAPPET - VALVE 3.370MM	$12.02	-
6500	LR037313	TAPPET - VALVE	LR037313 TAPPET - VALVE 3.385MM	$12.18	-
6500	LR037314	TAPPET - VALVE	LR037314 TAPPET - VALVE 3.400MM	$12.18	-
6500	LR037315	TAPPET - VALVE	LR037315 TAPPET - VALVE 3.415MM	$12.18	-
6500	LR037316	TAPPET - VALVE	LR037316 TAPPET - VALVE 3.430MM	$12.02	-
6500	LR037317	TAPPET - VALVE	LR037317 TAPPET - VALVE 3.445MM	$12.18	-
6500	LR037318	TAPPET - VALVE IN STOCK	LR037318 TAPPET - VALVE 3.460MM IN STOCK	$11.09	-
6500	LR037322	TAPPET - VALVE IN STOCK	LR037322 TAPPET - VALVE 3.475MM IN STOCK	$12.18	-
6500	LR037328	TAPPET - VALVE	LR037328 TAPPET - VALVE 3.490MM	$12.18	-
6500	LR037329	TAPPET - VALVE	LR037329 TAPPET - VALVE 3.505MM	$11.66	-
6500	LR037330	TAPPET - VALVE	LR037330 TAPPET - VALVE 3.520MM	$12.02	-
6500	LR037331	TAPPET - VALVE	LR037331 TAPPET - VALVE 3.535MM	$11.09	-
6500	LR037332	TAPPET - VALVE	LR037332 TAPPET - VALVE 3.550MM	$11.60	-
6500	LR037333	TAPPET - VALVE	LR037333 TAPPET - VALVE 3.565MM	$12.18	-
6500	LR037334	TAPPET - VALVE	LR037334 TAPPET - VALVE 3.580MM	$11.66	-
6500	LR037335	TAPPET - VALVE	LR037335 TAPPET - VALVE 3.595MM	$11.60	-
6500	LR037336	TAPPET - VALVE	LR037336 TAPPET - VALVE 3.610MM	$12.24	-
6500	LR037343	TAPPET - VALVE	LR037343 TAPPET - VALVE 3.625MM	$12.18	-
6500	LR037344	TAPPET - VALVE	LR037344 TAPPET - VALVE 3.640MM	$11.96	-
6500	LR037345	TAPPET - VALVE	LR037345 TAPPET - VALVE 3.655MM	$12.18	-
6500	LR037346	TAPPET - VALVE	LR037346 TAPPET - VALVE 3.670MM	$11.09	-
6500	LR037347	TAPPET - VALVE	LR037347 TAPPET - VALVE 3.685MM	$12.18	-
6505	LR035551	VALVE - EXHAUST	LR035551 VALVE - EXHAUST To: EA323781	$33.40	16
6505	LR055528	VALVE - EXHAUST	LR055528 VALVE - EXHAUST From: EA323782 / To: GA558454	$29.88	16
6505	LR082739	VALVE - EXHAUST	LR082739 VALVE - EXHAUST From: GA558455	$30.00	16
6507	LR010863	VALVE - INLET	LR010863 VALVE - INLET	$38.09	16
6513	LR038167	SPRING - VALVE	LR038167 SPRING - VALVE	$60.34	32
6514	LR010702	RETAINER - VALVE SPRING	LR010702 RETAINER - VALVE SPRING	$4.57	32
6518	LR008878	COLLET - VALVE SPRING RETAINER IN STOCK	LR008878 COLLET - VALVE SPRING RETAINER IN STOCK	$1.37	64
