Transmission Cooling Systems (Solihull Plant Build) (2.0L I4 High Dohc Aj200 Petrol, 8 Speed Auto...

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] - Transmission Cooling Systems (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol, 8 Speed Auto...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108166 BOLT $0.72 IN STOCK
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.98 IN STOCK
Photo Part No Description Price (each) Stock
LR049457 O-RING $3.30 IN STOCK
Photo Part No Description Price (each) Stock
LR036354 OIL COOLER $247.68 To Order
Photo Part No Description Price (each) Stock
LR100478 TUBE - OIL COOLER $213.74 To Order
LR116113 TUBE - OIL COOLER $216.93 To Order
View All

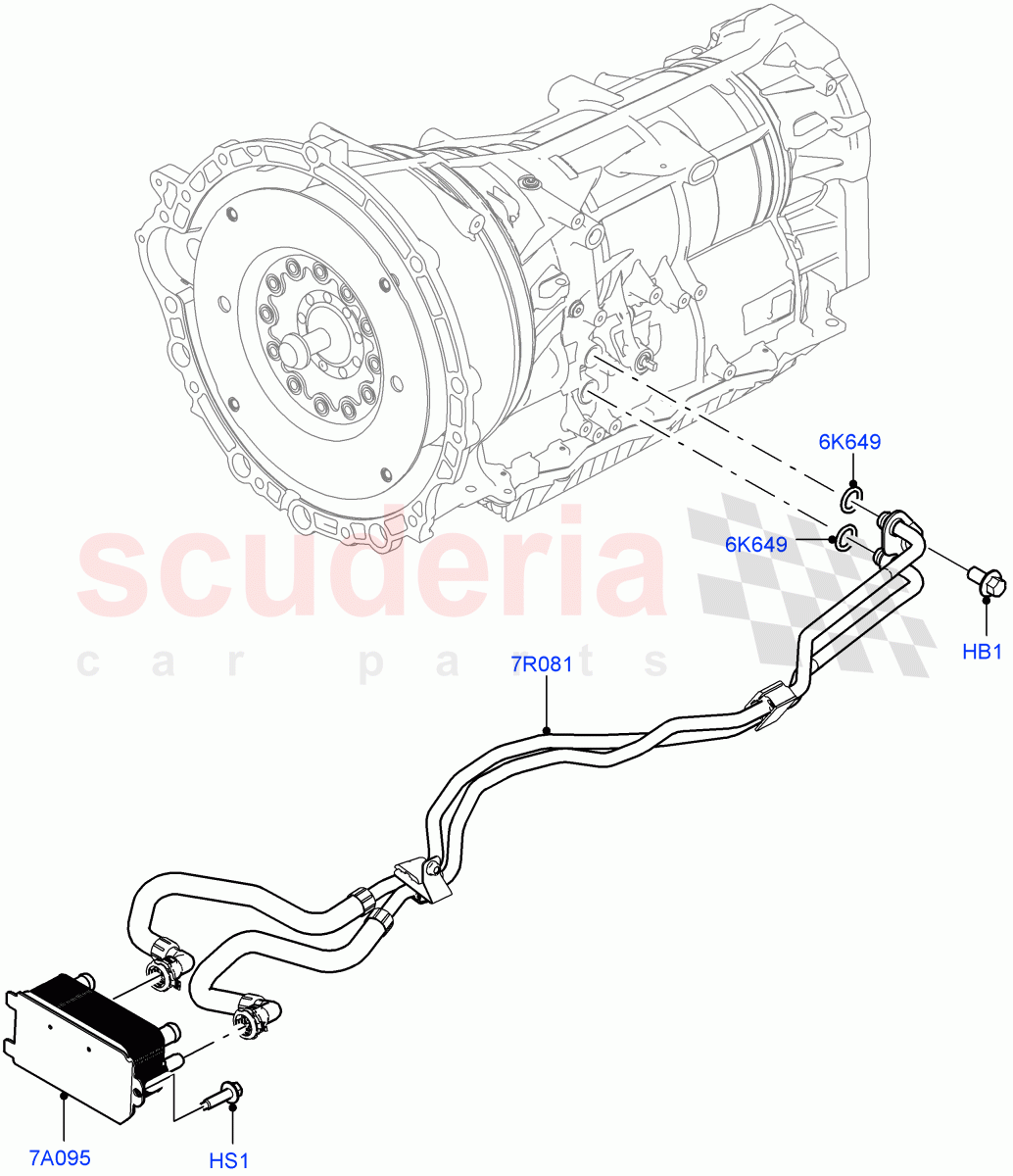

Transmission Cooling Systems (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol, 8 Speed Auto Trans ZF 8HP45) ((V) FROMJA000001) of Land Rover Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108166
BOLT
Hexagonal Head, M8 X 16MM, To Transmission / From: JA000001
IN STOCK 		$0.72 1
HS1 FS106206
SCREW
Hexagonal Head, M6 X 20MM, Oil Cooler / From: JA000001
IN STOCK 		$0.98 1
6K649 LR049457
O-RING
IN STOCK 		$3.30 2
7A095 LR036354
OIL COOLER
From: JA000001 		$247.68 1
7R081 LR100478
TUBE - OIL COOLER
From: JA000001 / To: JA198829 		$213.74 1
7R081 LR116113
TUBE - OIL COOLER
From: JA198830 		$216.93 1
