Transmission Cooling Systems (Solihull Plant Build) (3.0L Dohc Gdi Sc V6 Petrol, 8 Speed Auto Trans...

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] - Transmission Cooling Systems (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL, 8 Speed Auto Trans...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108166 BOLT $0.72 IN STOCK
Photo Part No Description Price (each) Stock
RYP500190 SCREW $0.64 IN STOCK
Photo Part No Description Price (each) Stock
RYG500220 SCREW $3.50 IN STOCK
Photo Part No Description Price (each) Stock
LR049457 O-RING $3.30 IN STOCK
Photo Part No Description Price (each) Stock
LR036354 OIL COOLER $247.68 To Order
Photo Part No Description Price (each) Stock
LR035552 TUBE - OIL COOLER $220.24 To Order
View All

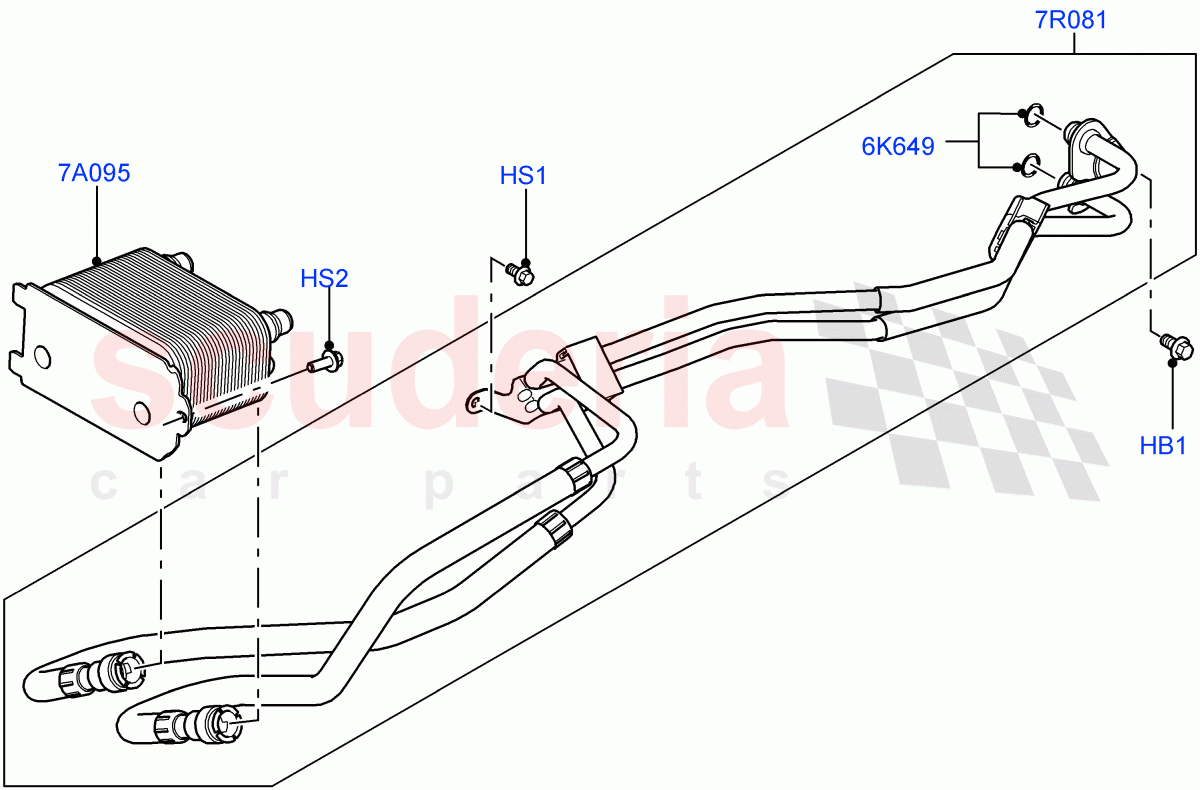

Transmission Cooling Systems (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL, 8 Speed Auto Trans ZF 8HP45) ((V) FROMEA000001) of Land Rover Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108166
BOLT
Hexagonal Head, M8 X 16MM
IN STOCK 		$0.72 1
HS1 RYP500190
SCREW
Hexagonal Head, M6 x 12MM
IN STOCK 		$0.64 1
HS2 RYG500220
SCREW
Hexagonal Head, M6 X 20MM
IN STOCK 		$3.50 1
6K649 LR049457
O-RING
IN STOCK 		$3.30 2
7A095 LR036354
OIL COOLER 		$247.68 1
7R081 LR035552
TUBE - OIL COOLER 		$220.24 1
