Name: Front Cross Member & Stabilizer Bar (Crossmember) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC AJ200, 2.0L I4 High DOHC AJ200 Petrol, 2.0L AJ200P Hi PHEV) ((V) FROMHA000001)
Rating: 5.0 (1 reviews)

Front Cross Member & Stabilizer Bar (Crossmember) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC AJ200, 2.0L I4 High DOHC AJ200 Petrol, 2.0L AJ200P Hi PHEV) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] - Front Cross Member & Stabilizer Bar (Crossmember) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID...

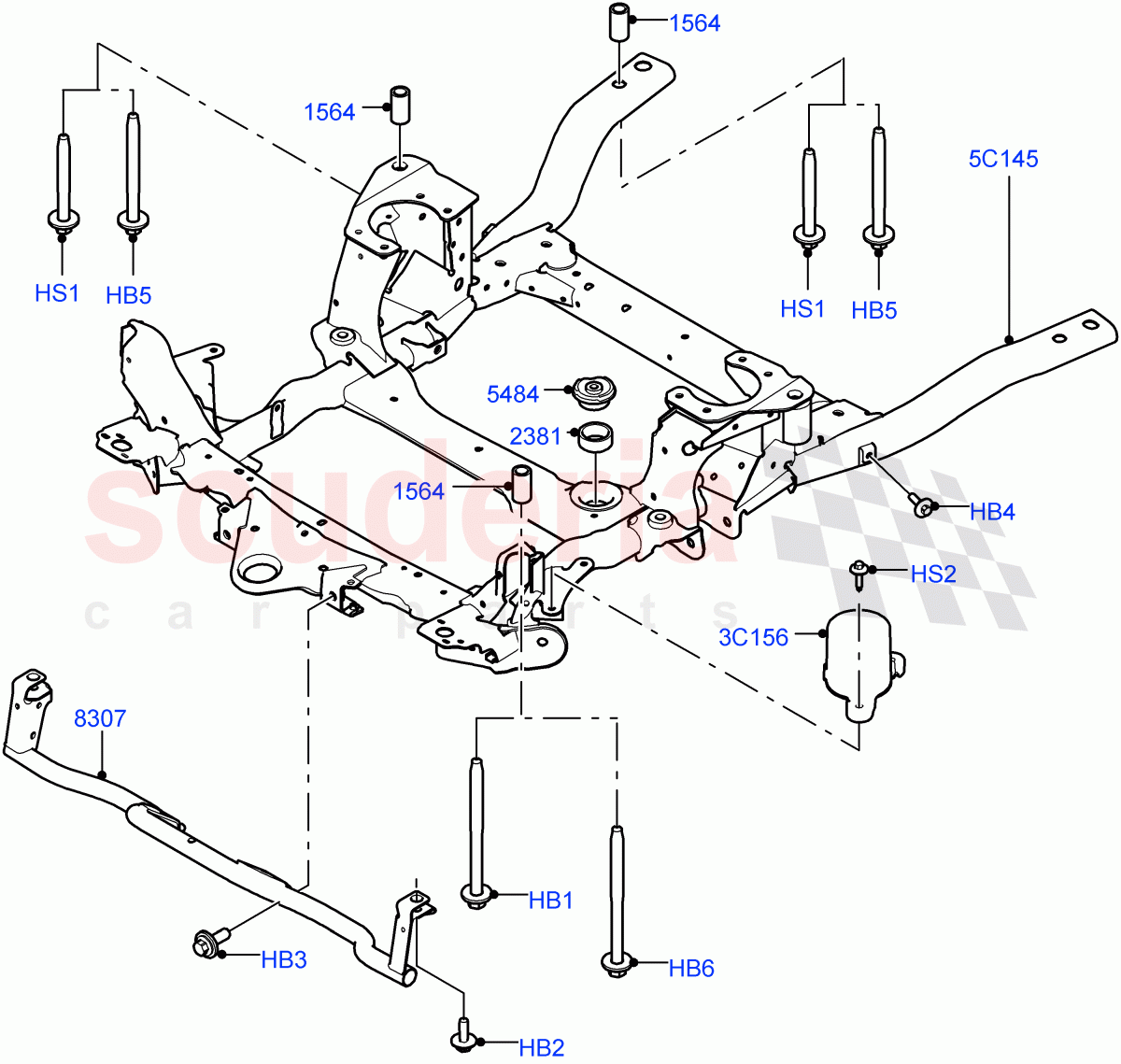

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR051047	BOLT	$14.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037935	BOLT AND WASHER - HEX.HEAD	$2.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR038571	BOLT	$3.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105631	BOLT AND WASHER - HEX.HEAD	$2.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR097372	BOLT	$10.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR124637	BOLT	$14.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051046	SCREW AND WASHER	$8.51	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501170	SCREW AND WASHER	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067391	INSERT - THREADED	$26.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100914	SLEEVE - INSULATING	$12.59	To Order
	LR100914	SLEEVE - INSULATING	$12.59	To Order
	LR100914	SLEEVE - INSULATING	$12.59	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR090577	INSULATOR - BUSH TYPE	$37.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038572	GUARD - RADIATOR	$237.91	To Order
	LR081521	GUARD - RADIATOR	$130.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081522	DAMPER - VIBRATION	$181.08	To Order
	LR081523	DAMPER - VIBRATION	$181.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081348	FRAME	$3,131.81	To Order
	LR105632	FRAME	$2,941.18	To Order
	LR128141	FRAME	$3,100.78	To Order

...and 11 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR051047	BOLT	LR051047 BOLT Hexagonal Head, M14 X 185, Please Use When Body Shell Is Replaced - Self Cutting Thread Bolt / From: HA000001	$14.58	2
HB2	LR037935	BOLT AND WASHER - HEX.HEAD IN STOCK	LR037935 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M10 X 25MM / From: HA000001 IN STOCK	$2.40	2
HB3	LR038571	BOLT	LR038571 BOLT Hexagonal Head, M12 X 35MM / From: HA000001	$3.73	2
HB4	LR105631	BOLT AND WASHER - HEX.HEAD	LR105631 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M6 / From: JA000001	$2.16	2
HB5	LR097372	BOLT IN STOCK	LR097372 BOLT Hexagonal Head, M14 X 148MM, Please Use When Old Fixing Is Replaced - Non Self Cutting Bolt / From: HA000001 IN STOCK	$10.02	4
HB6	LR124637	BOLT	LR124637 BOLT M14 X 200MM, Please Use When Old Fixing Is Replaced - Non Self Cutting Bolt / From: HA000001	$14.45	2
HS1	LR051046	SCREW AND WASHER	LR051046 SCREW AND WASHER Hexagonal Head, M14 X 145, Please Use When Body Shell Is Replaced - Self Cutting Thread Bolt / From: HA000001	$8.51	4
HS2	RYG501170	SCREW AND WASHER	RYG501170 SCREW AND WASHER Hexagonal Head, M8 X 30MM / From: HA000001	$0.61	4
3C156	LR081522	DAMPER - VIBRATION	LR081522 DAMPER - VIBRATION RH / From: HA000001	$181.08	1
3C156	LR081523	DAMPER - VIBRATION	LR081523 DAMPER - VIBRATION LH / From: HA000001	$181.08	1
5C145	LR081348	FRAME	LR081348 FRAME From: HA000001 / To: HA999999	$3,131.81	1
5C145	LR105632	FRAME	LR105632 FRAME From: JA000001 / To: KA853913	$2,941.18	1
5C145	LR128141	FRAME	LR128141 FRAME From: KA853914 / To: KA999999	$3,100.78	1
5C145	LR128141	FRAME	LR128141 FRAME From: LA800000 / To: LA898456	$3,100.78	1

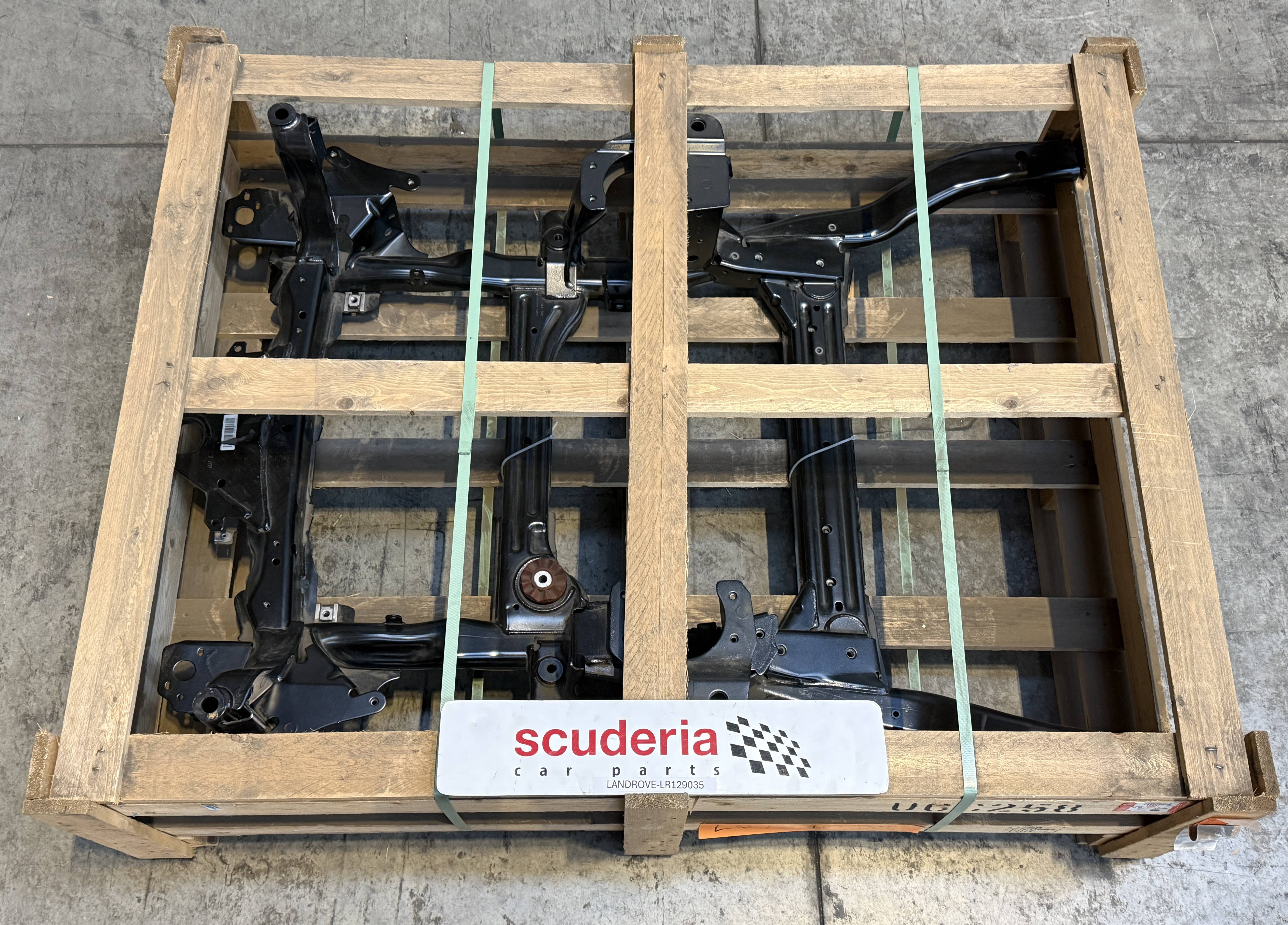

5C145	LR129035	FRAME IN STOCK	LR129035 FRAME From: LA898457 / To: LA899999 IN STOCK	$875.87	1
5C145	LR129035	FRAME IN STOCK	LR129035 FRAME From: LA700000 / To: LA799999 IN STOCK	$875.87	1
5C145	LR129035	FRAME IN STOCK	LR129035 FRAME From: MA000001 / To: MA765376 IN STOCK	$875.87	1
5C145	LR148210	FRAME	LR148210 FRAME From: MA765377 / To: MA999999	$1,921.19	1
5C145	LR155983	FRAME	LR155983 FRAME From: NA798870 / To: NA799999	$1,859.80	1
5C145	LR148210	FRAME	LR148210 FRAME From: NA700000 / To: NA798869	$1,921.19	1
5C145	LR155983	FRAME	LR155983 FRAME From: NA200000 / To: NA201816	$1,859.80	1
5C145	LR162062	FRAME	LR162062 FRAME From: NA201817 / To: NA211053	$1,746.60	1
5C145	LR166114	FRAME	LR166114 FRAME From: NA211054 / To: NA699999	$1,804.27	1
5C145	LR166114	FRAME	LR166114 FRAME From: PA000001	$1,804.27	1
1564	LR067391	INSERT - THREADED	LR067391 INSERT - THREADED M20 x 1.5 + M14, Threaded / From: HA000001	$26.65	6
2381	LR100914	SLEEVE - INSULATING	LR100914 SLEEVE - INSULATING From: GA000001 / To: MA999999	$12.59	1
2381	LR100914	SLEEVE - INSULATING	LR100914 SLEEVE - INSULATING From: NA200000 / To: NA231486	$12.59	1
2381	LR100914	SLEEVE - INSULATING	LR100914 SLEEVE - INSULATING From: NA700000 / To: NA799999	$12.59	1
2381	LR169865	SLEEVE - INSULATING	LR169865 SLEEVE - INSULATING From: NA231487 / To: NA699999	$12.73	1
2381	LR169865	SLEEVE - INSULATING	LR169865 SLEEVE - INSULATING From: PA000001	$12.73	1
5484	LR090577	INSULATOR - BUSH TYPE	LR090577 INSULATOR - BUSH TYPE Differential / From: HA000001	$37.68	1
8307	LR038572	GUARD - RADIATOR	LR038572 GUARD - RADIATOR Radiator / From: HA000001 / To: HA176313	$237.91	1
8307	LR081521	GUARD - RADIATOR	LR081521 GUARD - RADIATOR Radiator / From: HA176314	$130.24	1
