Drive Shaft - Rear Axle Drive (Propshaft) ((V) Toga999999)

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] - Drive Shaft - Rear Axle Drive (Propshaft) ((V) TOGA999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
TYG500130 BOLT $3.12 To Order
Photo Part No Description Price (each) Stock
TYP500180 SCREW $6.17 To Order
Photo Part No Description Price (each) Stock
RYG500270 SCREW $2.84 To Order
Photo Part No Description Price (each) Stock
TYF500020 WASHER - SEALING $2.93 To Order
Photo Part No Description Price (each) Stock
KYH500100 NUT - SPRING $1.67 To Order
Photo Part No Description Price (each) Stock
LR066317 BRACKET - DRIVESHAFT $46.68 To Order
Photo Part No Description Price (each) Stock
LR034512 NUT - PROPSHAFT $54.58 To Order
Photo Part No Description Price (each) Stock
LR049407 SHAFT - REAR AXLE OUTER STUB $1,798.98 To Order
LR057583 Shaft - Drive $1,775.38 To Order
Photo Part No Description Price (each) Stock
LR034508 SHAFT - REAR AXLE OUTER STUB $1,466.98 To Order
LR041960 SHAFT - REAR AXLE OUTER STUB $879.46 To Order
LR058371 SHAFT - REAR AXLE OUTER STUB $1,390.51 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR034506 KIT - "O" RING $41.45 To Order
View All

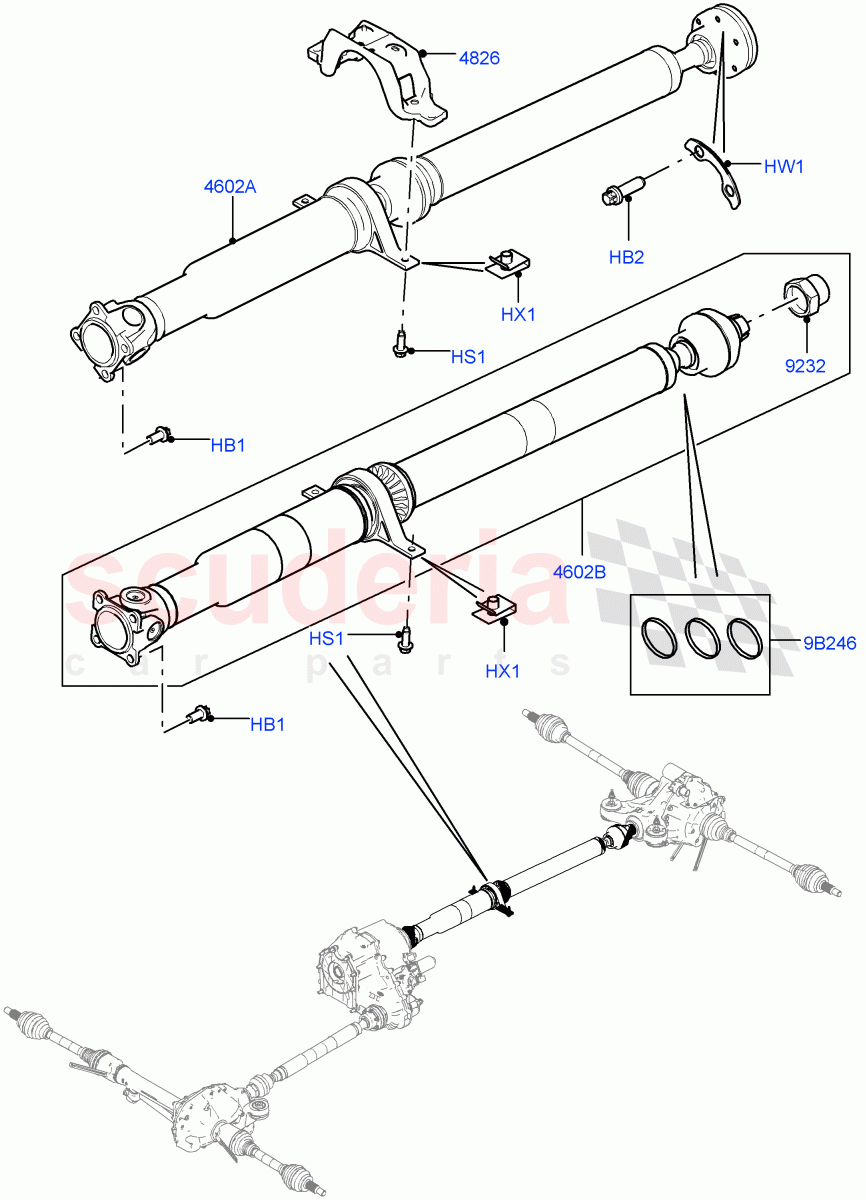

Drive Shaft - Rear Axle Drive (Propshaft) ((V) TOGA999999) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 TYG500130
BOLT
External Torx Head, M12 x 25MM 		$3.12 4
HB2 TYP500180
SCREW
3.0 V6 Diesel Electric Hybrid Eng / M10 X 1.5, Service Fit - Flange Type Propshaft Connection / From: FA000001 		$6.17 6
HS1 RYG500270
SCREW
Hexagonal Head, M10 X 25MM 		$2.84 2
HW1 TYF500020
WASHER - SEALING
3.0 V6 D Gen2 Twin Turbo / M10, Service Fit - Flange Type Propshaft Connection, Special Washer / From: FA000001 		$2.93 3
HX1 KYH500100
NUT - SPRING
M10, Nut "U" Spring 		$1.67 2
9B246 LR034506
KIT - "O" RING
3.0L 24V V6 Turbo Diesel Std Flow / 3 Piece 		$41.45 1
4602A LR049407
SHAFT - REAR AXLE OUTER STUB
3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD / From: FA000001 / To: GA999999 		$1,798.98 1
4602A LR057583
Shaft - Drive
2.0L 16V TIVCT T/C 240PS Petrol, With 1 Speed Transfer Case / From: GA000001 / To: GA999999 		$1,775.38 1
4602B LR034508
SHAFT - REAR AXLE OUTER STUB
5.0L OHC SGDI SC V8 Petrol - AJ133, With 2 Spd Trans Case With Ctl Trac / To: EA394392 		$1,466.98 1
4602B LR041960
SHAFT - REAR AXLE OUTER STUB
3.0L DOHC GDI SC V6 PETROL, With 1 Speed Transfer Case / To: EA394391 		$879.46 1
4602B LR058371
SHAFT - REAR AXLE OUTER STUB
3.0L DOHC GDI SC V6 PETROL, With 2 Spd Trans Case With Ctl Trac / From: EA394393 / To: GA632350 		$1,390.51 1
4602B LR058372
SHAFT - REAR AXLE OUTER STUB
3.0 V6 Diesel, With 1 Speed Transfer Case / From: EA394392 / To: FA531966 		$1,772.81 1
4602B LR071994
SHAFT - REAR AXLE OUTER STUB
3.0L DOHC GDI SC V6 PETROL, 8 Speed Auto Trans ZF 8HP70 4WD, With 2 Spd Trans Case With Ctl Trac / From: GA632351 		$1,856.78 1
4602B LR072500
SHAFT - REAR AXLE OUTER STUB
3.0L DOHC GDI SC V6 PETROL, With 1 Speed Transfer Case / From: FA531967 		$1,461.07 1
4826 LR066317
BRACKET - DRIVESHAFT 		$46.68 1
9232 LR034512
NUT - PROPSHAFT
4.4L DOHC DITC V8 Diesel, 8 Speed Auto Trans ZF 8HP70 4WD / Propshaft 		$54.58 1
