Name: Supercharger (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001)
Rating: 5.0 (1 reviews)

Supercharger (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] - Supercharger (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001)

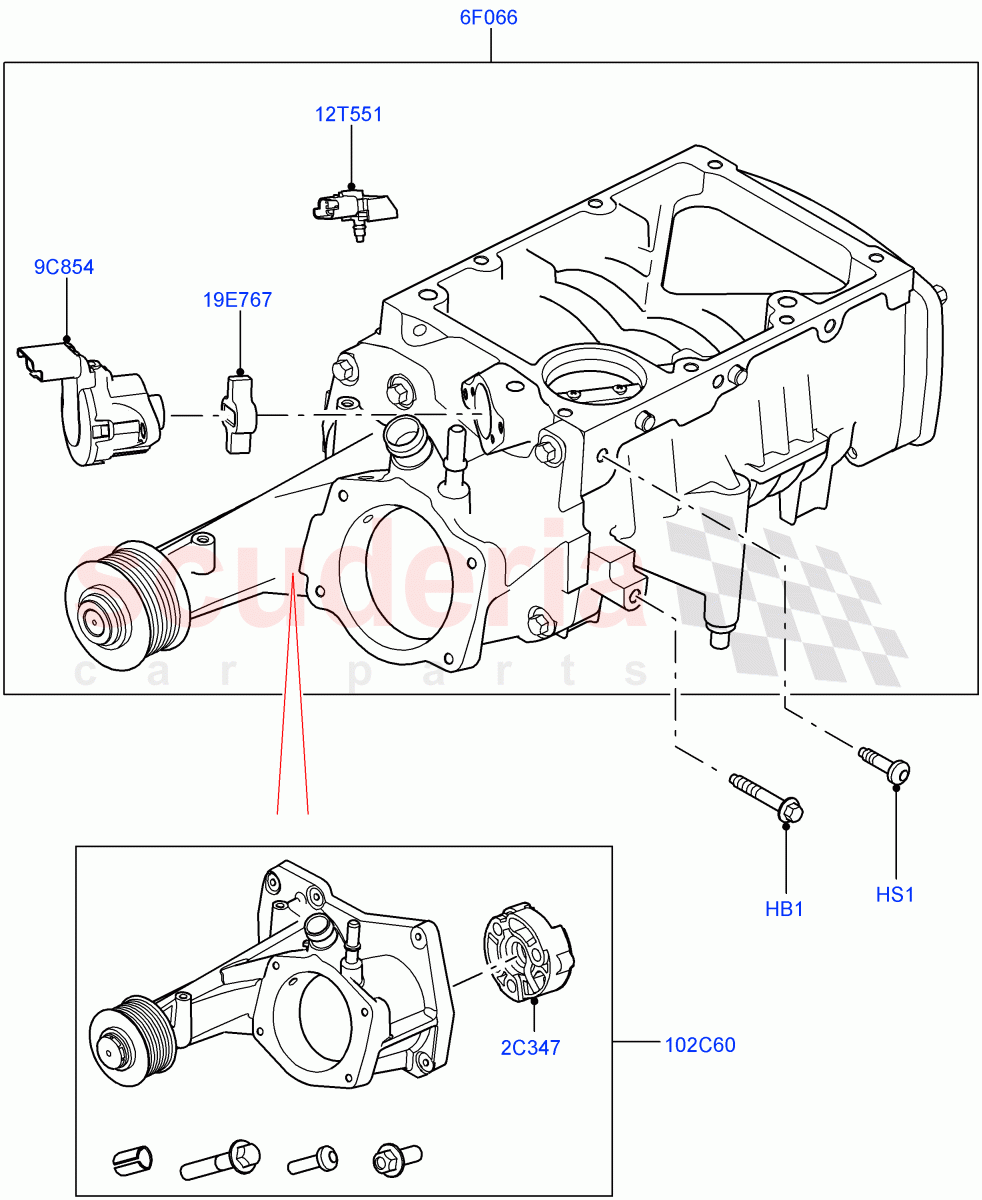

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4567977	BOLT	$4.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010917	SCREW	$1.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR160736	ISOLATOR	$180.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041659	SUPERCHARGER	$3,798.26	To Order
	LR065480	SUPERCHARGER	$3,174.48	To Order
	LR088996	SUPERCHARGER	$3,635.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035539	ACTUATOR - SUPERCHARGER BYPASS	$291.39	To Order
	LR087235	ACTUATOR - SUPERCHARGER BYPASS	$350.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088538	KIT - SUPERCHARGER	$872.47	To Order
	LR088538	KIT - SUPERCHARGER	$872.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008881	SENSOR - MANIFOLD ABSOLUTE PRESSURE	$137.72	To Order
	LR087236	SENSOR - MANIFOLD ABSOLUTE PRESSURE	$134.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066147	COUPLING - BYPASS ACTUATOR	$24.64	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	4567977	BOLT	4567977 BOLT M8 X 50, Manifold To Supercharger	$4.10	2
HS1	LR010917	SCREW	LR010917 SCREW M8 x 30MM, Manifold To Supercharger	$1.15	6
2C347	LR160736	ISOLATOR	LR160736 ISOLATOR 49.38 mm Isolator Diameter. Please Check Before Ordering.	$180.70	1
6F066	LR041659	SUPERCHARGER	LR041659 SUPERCHARGER To: EA393459	$3,798.26	1
6F066	LR065480	SUPERCHARGER	LR065480 SUPERCHARGER From: EA393460 / To: GA596271	$3,174.48	1
6F066	LR088996	SUPERCHARGER	LR088996 SUPERCHARGER From: GA596272	$3,635.61	1
9C854	LR035539	ACTUATOR - SUPERCHARGER BYPASS	LR035539 ACTUATOR - SUPERCHARGER BYPASS Electric / To: GA593975	$291.39	1
9C854	LR087235	ACTUATOR - SUPERCHARGER BYPASS	LR087235 ACTUATOR - SUPERCHARGER BYPASS Electric / From: GA593976	$350.35	1
12T551	LR008881	SENSOR - MANIFOLD ABSOLUTE PRESSURE	LR008881 SENSOR - MANIFOLD ABSOLUTE PRESSURE Sensor - Manifold Absolute Pressure (MAP) / To: EA300000	$137.72	1
12T551	LR087236	SENSOR - MANIFOLD ABSOLUTE PRESSURE	LR087236 SENSOR - MANIFOLD ABSOLUTE PRESSURE Sensor - Manifold Absolute Pressure (MAP) / From: EA300001	$134.68	1
19E767	LR066147	COUPLING - BYPASS ACTUATOR	LR066147 COUPLING - BYPASS ACTUATOR Supercharger Bypass Solenoid	$24.64	1
102C60	LR088538	KIT - SUPERCHARGER	LR088538 KIT - SUPERCHARGER Front End, With Fixing Parts / To: EA999999	$872.47	1
102C60	LR088538	KIT - SUPERCHARGER	LR088538 KIT - SUPERCHARGER Front End, Please Consider Repair Using LR160736 Before Ordering LR088538, With Fixing Parts / From: FA000001	$872.47	1

Supercharger (Solihull Plant Build) (3.0L Dohc Gdi Sc V6 Petrol) ((V) Fromea000001)

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol]

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] - Supercharger (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001)

Add to Shopping Cart
