Fuel Injectors And Pipes (Solihull Plant Build) (3.0L Dohc Gdi Sc V6 Petrol) ((V) Fromea000001)

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] - Fuel Injectors And Pipes (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR012779 BOLT $1.04 To Order
Photo Part No Description Price (each) Stock
FS106122 BOLT $4.08 To Order
Photo Part No Description Price (each) Stock
FN105042 NUT - HEX. - FLANGED $0.52 IN STOCK
Photo Part No Description Price (each) Stock
LR011274 SCREW $2.60 To Order
Photo Part No Description Price (each) Stock
LR010904 SCREW $1.24 To Order
Photo Part No Description Price (each) Stock
LR030807 SCREW $1.40 IN STOCK
Photo Part No Description Price (each) Stock
LR048471 PIPE - FUEL $128.63 To Order
LR050954 PIPE - FUEL $131.26 To Order
LR053781 PIPE - FUEL $122.69 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR012782 SHIELD - FUEL TUBES $8.17 To Order
Photo Part No Description Price (each) Stock
LR010767 RETAINER - INJECTION VALVE $6.09 To Order
Photo Part No Description Price (each) Stock
LR042411 PIPE - FUEL $234.31 To Order
LR065487 PIPE - FUEL $244.19 To Order
Photo Part No Description Price (each) Stock
LR078959 INJECTOR - FUEL $322.11 To Order
LR079541 INJECTOR - FUEL $321.45 To Order
Photo Part No Description Price (each) Stock
LR038162 TUBE - FUEL CROSSOVER $85.37 To Order
LR066206 TUBE - FUEL CROSSOVER $79.32 To Order
LR065488 TUBE - FUEL CROSSOVER $97.02 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR054622 SENSOR - FUEL PRESSURE/TEMPERATURE $132.03 To Order
LR108241 SENSOR - FUEL PRESSURE/TEMPERATURE $116.45 To Order
Photo Part No Description Price (each) Stock
LR105430 KIT - FUEL INJECTION $398.17 To Order
LR105431 KIT - FUEL INJECTION $388.79 To Order
LR105590 KIT - FUEL INJECTION $231.43 IN STOCK
Photo Part No Description Price (each) Stock
LR037089 KIT - INJECTOR REFIT $28.55 IN STOCK
Photo Part No Description Price (each) Stock
LR041650 MANIFOLD - FUEL SUPPLY $365.49 To Order
LR076017 MANIFOLD - FUEL SUPPLY $402.46 To Order
Photo Part No Description Price (each) Stock
LR041651 MANIFOLD - FUEL SUPPLY $358.33 To Order
LR076018 MANIFOLD - FUEL SUPPLY $366.48 To Order
View All

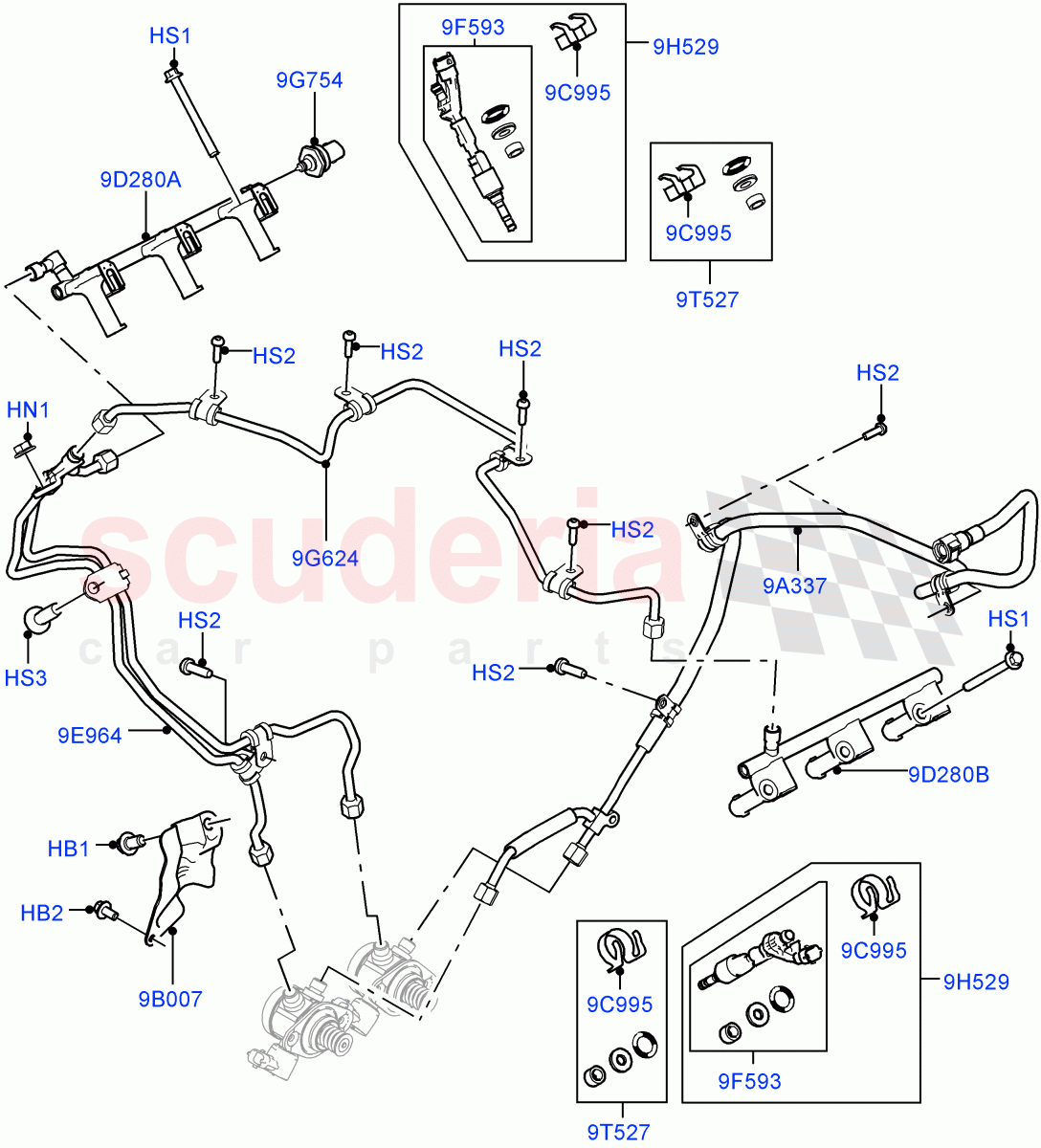

Fuel Injectors And Pipes (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR012779
BOLT
M10 X 20MM 		$1.04 1
HB2 FS106122
BOLT
Cover, M6 x 12MM 		$4.08 1
HN1 FN105042
NUT - HEX. - FLANGED
M5
IN STOCK 		$0.52 1
HS1 LR011274
SCREW
Fuel Rail 		$2.60 6
HS2 LR010904
SCREW
M6 X 20MM 		$1.24 7
HS3 LR030807
SCREW
M8 X 25MM, Torx
IN STOCK 		$1.40 1
9A337 LR048471
PIPE - FUEL
Low Pressure, Pump Feed / To: EA299999 		$128.63 1
9A337 LR050954
PIPE - FUEL
Low Pressure, Pump Feed / From: EA300000 / To: EA303719 		$131.26 1
9A337 LR053781
PIPE - FUEL
Low Pressure, Pump Feed / From: EA303720 / To: FA999999 		$122.69 1
9A337 LR068997
PIPE - FUEL
Low Pressure, Pump Feed / From: GA000001 / To: JA193550 		$156.93 1
9A337 LR116436
PIPE - FUEL
Low Pressure, Pump Feed / From: JA193551 		$197.89 1
9B007 LR012782
SHIELD - FUEL TUBES
Fuel Lines To Fuel Rail 		$8.17 1
9C995 LR010767
RETAINER - INJECTION VALVE 		$6.09 6
9D280A LR041650
MANIFOLD - FUEL SUPPLY
RH / To: FA537814 		$365.49 1
9D280A LR076017
MANIFOLD - FUEL SUPPLY
RH / From: FA537815 		$402.46 1
9D280B LR041651
MANIFOLD - FUEL SUPPLY
LH / To: FA537814 		$358.33 1
9D280B LR076018
MANIFOLD - FUEL SUPPLY
LH / From: FA537815 		$366.48 1
9E964 LR042411
PIPE - FUEL
Fuel Lines To Fuel Rail, High Pressure / To: EA374802 		$234.31 1
9E964 LR065487
PIPE - FUEL
Fuel Lines To Fuel Rail, High Pressure / From: EA374803 		$244.19 1
9F593 LR078959
INJECTOR - FUEL
To: EA999999 		$322.11 6
9F593 LR079541
INJECTOR - FUEL
EU6 Emissions / From: FA000001 		$321.45 6
9G624 LR038162
TUBE - FUEL CROSSOVER
High Pressure / To: EA369702 		$85.37 1
9G624 LR066206
TUBE - FUEL CROSSOVER
High Pressure / From: EA375920 / To: GA593482 		$79.32 1
9G624 LR065488
TUBE - FUEL CROSSOVER
High Pressure / From: EA369703 / To: EA375919 		$97.02 1
9G624 LR088579
TUBE - FUEL CROSSOVER
High Pressure / From: GA593483 		$102.39 1
9G754 LR054622
SENSOR - FUEL PRESSURE/TEMPERATURE
To: HA162085 		$132.03 1
9G754 LR108241
SENSOR - FUEL PRESSURE/TEMPERATURE
From: HA162086 		$116.45 1
9H529 LR105430
KIT - FUEL INJECTION
Includes Injector And Retainer / To: EA999999 		$398.17 6
9H529 LR105431
KIT - FUEL INJECTION
Stage V European Emissions / Injector Assembly, Kit For 1 Cylinder / From: FA000001 		$388.79 6
9H529 LR105590
KIT - FUEL INJECTION
Beijing 6 Petrol Emission / Injector Assembly, Kit For 1 Cylinder / From: JA000001
IN STOCK 		$231.43 6
9T527 LR037089
KIT - INJECTOR REFIT
Includes Oring, Teflon Seal, Retainer
IN STOCK 		$28.55 6
