Name: Vacuum Control And Air Injection (3.0L AJ20P6 Petrol High, LHD) ((V) FROMKA000001)
Rating: 4.5 (1 reviews)

View All

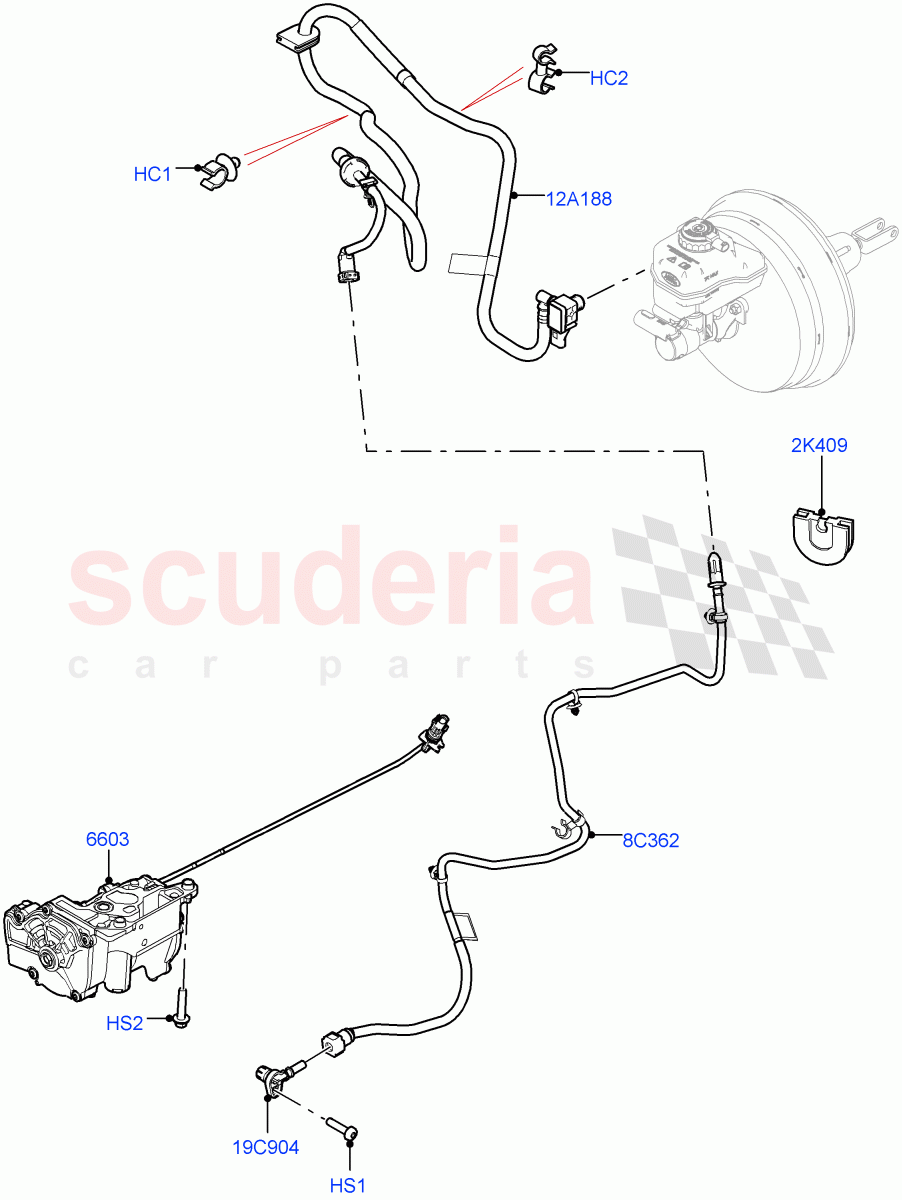

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR087667	CLIP - SPECIAL	$8.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049401	CLIP - DOUBLE	$2.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073666	SCREW	$1.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073676	SCREW	$2.35	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR081604	GROMMET - BRAKE PIPE	$5.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR120277	HOSE - VACUUM	$169.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121354	TUBE - VACUUM	$53.32	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR087667	CLIP - SPECIAL	LR087667 CLIP - SPECIAL Single / From: KA000001	$8.12	1
HC2	LR049401	CLIP - DOUBLE	LR049401 CLIP - DOUBLE Double, To Vacuum Hose / From: KA000001	$2.36	1
HS1	LR073666	SCREW	LR073666 SCREW M5 x 20MM, Vacuum Connector / From: KA000001	$1.43	1
HS2	LR073676	SCREW	LR073676 SCREW M8 x 35mm, To Vacuum Pump / From: KA000001	$2.35	3
2K409	LR081604	GROMMET - BRAKE PIPE	LR081604 GROMMET - BRAKE PIPE From: KA000001	$5.98	1
8C362	LR121789	HOSE - VACUUM CONTROL HARNESS	LR121789 HOSE - VACUUM CONTROL HARNESS To Vacuum Pump / From: KA000001 / To: LA877177	$237.48	1
8C362	LR136622	HOSE - VACUUM CONTROL HARNESS	LR136622 HOSE - VACUUM CONTROL HARNESS To Vacuum Pump / From: LA877178	$368.78	1
12A188	LR120277	HOSE - VACUUM	LR120277 HOSE - VACUUM To Brake Booster / From: KA000001	$169.96	1
19C904	LR121354	TUBE - VACUUM	LR121354 TUBE - VACUUM From: KA000001	$53.32	1
6603	LR121355	PUMP - OIL & VACUUM	LR121355 PUMP - OIL & VACUUM From: KA000001 / To: MA999999	$403.28	1
6603	LR121355	PUMP - OIL & VACUUM	LR121355 PUMP - OIL & VACUUM From: NA700000 / To: NA799999	$403.28	1
6603	LR121355	PUMP - OIL & VACUUM	LR121355 PUMP - OIL & VACUUM From: NA200000 / To: NA208038	$403.28	1
6603	LR164062	PUMP - OIL & VACUUM	LR164062 PUMP - OIL & VACUUM From: NA208039 / To: NA699999	$459.43	1
6603	LR164062	PUMP - OIL & VACUUM	LR164062 PUMP - OIL & VACUUM From: PA000001	$459.43	1

Vacuum Control And Air Injection (3.0L Aj20P6 Petrol High, Lhd) ((V) Fromka000001)

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6]
