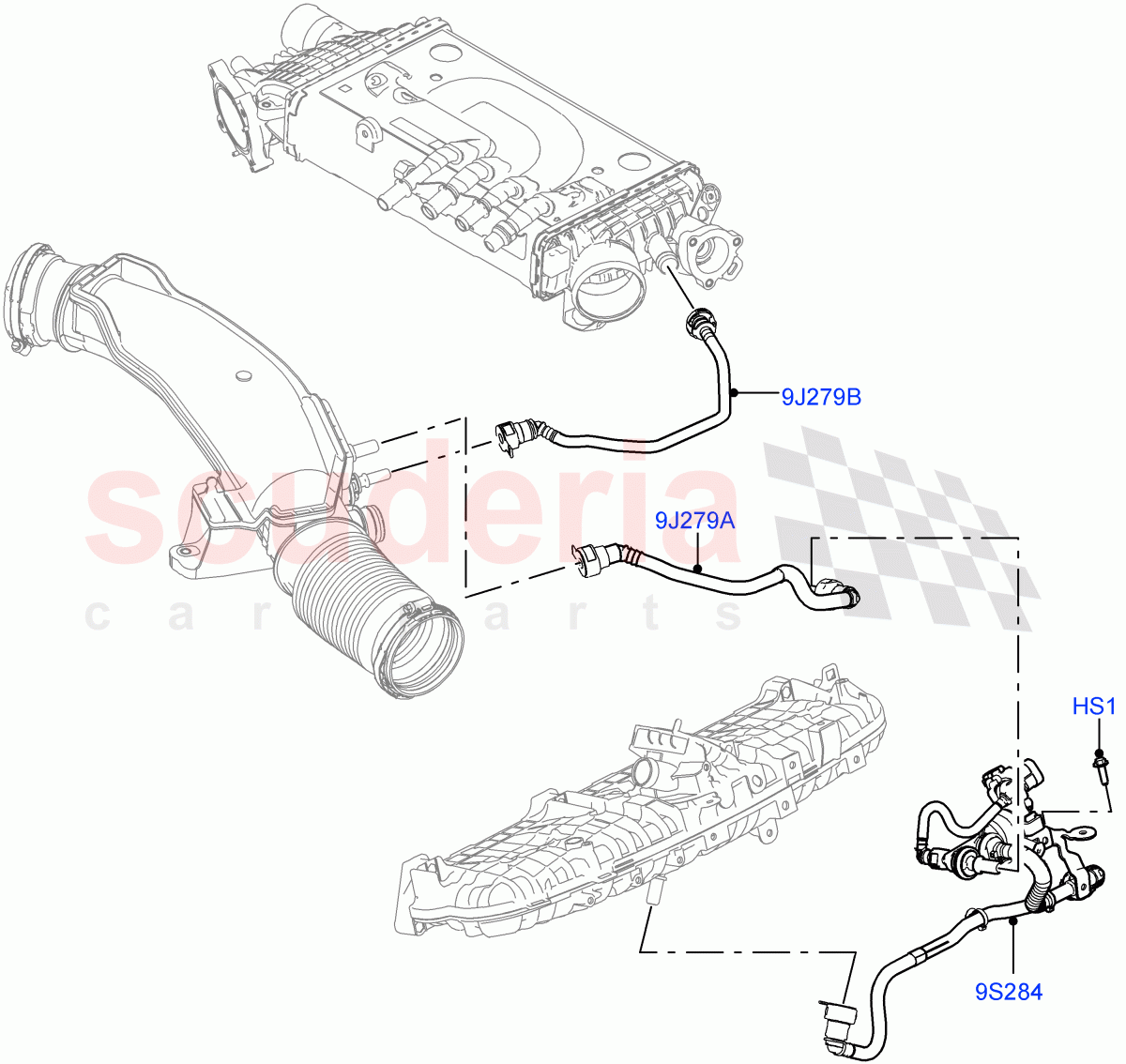

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.31	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM / From: KA000001	$2.31	1
9J279A	LR126117	HOSE - FUEL	LR126117 HOSE - FUEL From Valve To Air Inlet Hose / From: KA000001 / To: MA791356	$94.07	1
9J279A	LR146142	HOSE - FUEL	LR146142 HOSE - FUEL From Valve To Air Inlet Hose / From: MA791357	$101.54	1
9J279B	LR126116	TUBE - FUEL VAPOUR	LR126116 TUBE - FUEL VAPOUR From Intercooler To Air Inlet Hose / From: KA000001 / To: KA876059	$55.20	1
9J279B	LR136859	TUBE - FUEL VAPOUR	LR136859 TUBE - FUEL VAPOUR From Intercooler To Air Inlet Hose / From: KA876060 / To: MA791356	$71.91	1
9J279B	LR146143	TUBE - FUEL VAPOUR	LR146143 TUBE - FUEL VAPOUR From Intercooler To Air Inlet Hose / From: MA791357	$85.65	1
9S284	LR122691	TUBE - FUEL VAPOUR	LR122691 TUBE - FUEL VAPOUR With Valve / From: KA000001 / To: MA784179	$183.97	1
9S284	LR156719	TUBE - FUEL VAPOUR	LR156719 TUBE - FUEL VAPOUR With Valve / From: MA784180	$160.97	1

Haven't found what you're looking for?

View Cart / Checkout

Evaporative Emission (3.0L Aj20P6 Petrol High) ((V) Fromka000001)

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6]
