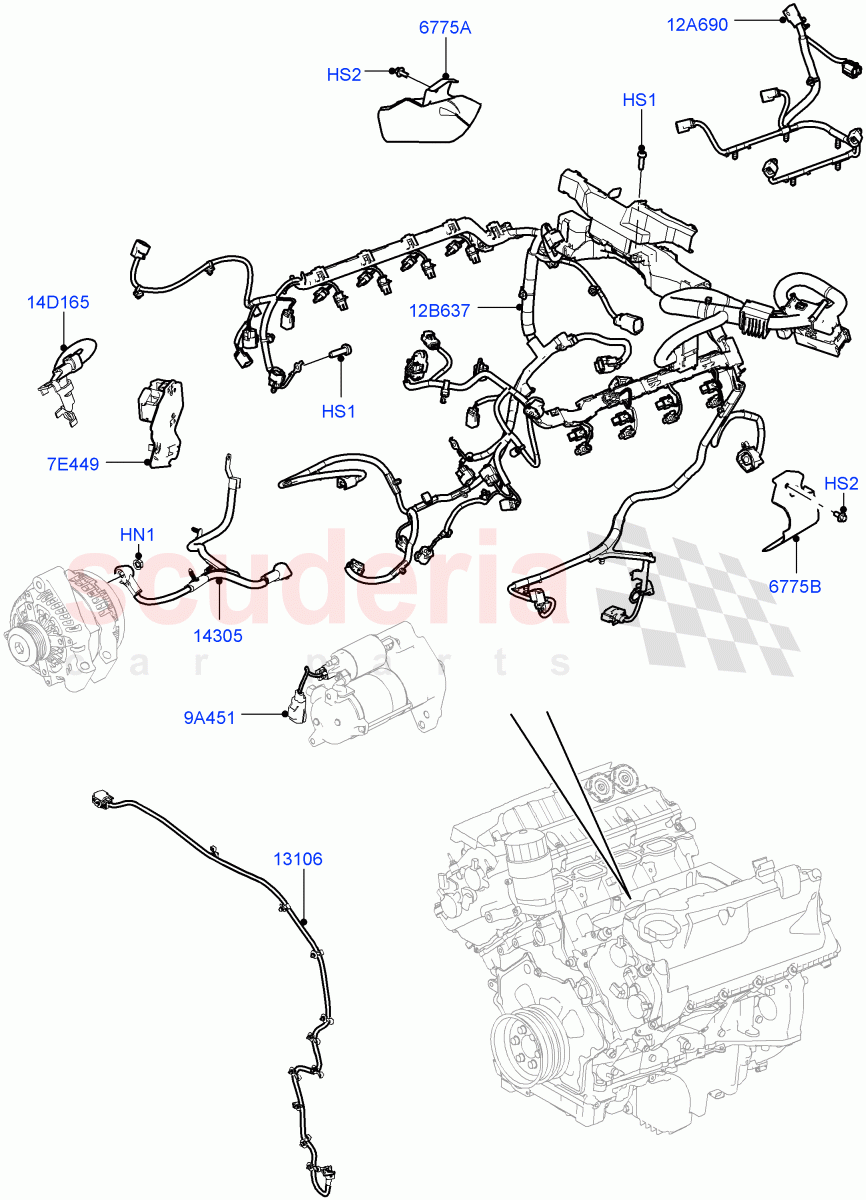

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FN108042	NUT	$1.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011413	SCREW	$1.09	To Order

Photo	Part No	Description	Price (each)	Stock
	FA106126	SCREW	$0.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR040622	WIRING - WATER PUMP	$23.86	To Order
	LR068407	WIRING - WATER PUMP	$40.98	To Order
	LR064173	WIRING - WATER PUMP	$55.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049998	WIRE - ALTERNATOR	$224.11	To Order
	LR050001	WIRE - ALTERNATOR	$145.83	To Order
	LR054590	WIRE - ALTERNATOR	$194.23	To Order

...and 11 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR011980	HEAT SHIELD - CONNECTOR	$9.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011500	HEAT SHIELD - CONNECTOR	$106.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085666	TERMINAL - BATTERY	$106.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043370	WIRING - STARTER MOTOR	$16.66	To Order
	LR041197	WIRING - STARTER MOTOR	$28.10	To Order
	LR065955	CABLE - BATTERY TO STARTER MOTOR	$71.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011950	WIRE - KNOCK SENSOR	$234.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050946	WIRING - ENGINE	$1,167.16	To Order
	LR061553	WIRING - ENGINE	$805.57	To Order
	LR082644	WIRING - ENGINE	$2,063.68	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR040624	WIRE - ENGINE EARTH	$38.22	To Order
	LR064070	WIRE - ENGINE EARTH	$62.85	To Order
	LR076898	WIRE - ENGINE EARTH	$42.28	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	FN108042	NUT	FN108042 NUT M8	$1.40	2
HS1	LR011413	SCREW	LR011413 SCREW M6 X 20MM	$1.09	1
HS2	FA106126	SCREW IN STOCK	FA106126 SCREW Hexagonal Head, M6 x 12MM IN STOCK	$0.46	2
7E449	LR085666	TERMINAL - BATTERY	LR085666 TERMINAL - BATTERY Battery Cables / From: HA000001	$106.37	1
9A451	LR043370	WIRING - STARTER MOTOR	LR043370 WIRING - STARTER MOTOR Standard Electric Starter Motor / Starter	$16.66	1
9A451	LR041197	WIRING - STARTER MOTOR	LR041197 WIRING - STARTER MOTOR Starter - Stop/Start System / Starter / To: FA999999	$28.10	1
9A451	LR065955	CABLE - BATTERY TO STARTER MOTOR	LR065955 CABLE - BATTERY TO STARTER MOTOR Starter - Stop/Start System / Starter / From: GA000001	$71.03	1
12A690	LR011950	WIRE - KNOCK SENSOR	LR011950 WIRE - KNOCK SENSOR Anti-Knock Sensor	$234.72	1
12B637	LR050946	WIRING - ENGINE	LR050946 WIRING - ENGINE Engine / To: EA001024	$1,167.16	1
12B637	LR061553	WIRING - ENGINE	LR061553 WIRING - ENGINE Engine / From: EA001025 / To: EA300053	$805.57	1
12B637	LR082644	WIRING - ENGINE	LR082644 WIRING - ENGINE Engine / From: EA301184	$2,063.68	1
12B637	LR067231	WIRING - ENGINE	LR067231 WIRING - ENGINE Engine / From: EA300054 / To: EA301183	$2,436.22	1
14D165	LR040624	WIRE - ENGINE EARTH	LR040624 WIRE - ENGINE EARTH Engine Earth / To: EA999999	$38.22	1
14D165	LR064070	WIRE - ENGINE EARTH	LR064070 WIRE - ENGINE EARTH Engine Earth / From: FA000001 / To: FA999999	$62.85	1
14D165	LR076898	WIRE - ENGINE EARTH	LR076898 WIRE - ENGINE EARTH Engine Earth / From: GA000001	$42.28	1
6775A	LR011980	HEAT SHIELD - CONNECTOR	LR011980 HEAT SHIELD - CONNECTOR RH	$9.83	1
6775B	LR011500	HEAT SHIELD - CONNECTOR	LR011500 HEAT SHIELD - CONNECTOR LH	$106.87	1
13106	LR040622	WIRING - WATER PUMP	LR040622 WIRING - WATER PUMP Water Pump / To: EA391763	$23.86	1
13106	LR068407	WIRING - WATER PUMP	LR068407 WIRING - WATER PUMP Water Pump / From: EA391764 / To: EA999999	$40.98	1
13106	LR064173	WIRING - WATER PUMP	LR064173 WIRING - WATER PUMP Water Pump / From: FA000001	$55.54	1
14305	LR049998	WIRE - ALTERNATOR	LR049998 WIRE - ALTERNATOR Standard Electric Starter Motor / To: EA308659	$224.11	1
14305	LR050001	WIRE - ALTERNATOR	LR050001 WIRE - ALTERNATOR Starter - Stop/Start System / To: EA308659	$145.83	1
14305	LR054590	WIRE - ALTERNATOR	LR054590 WIRE - ALTERNATOR Standard Electric Starter Motor / From: EA308660 / To: EA999999	$194.23	1
14305	LR054591	WIRE - ALTERNATOR	LR054591 WIRE - ALTERNATOR Starter - Stop/Start System / From: EA308660 / To: EA999999	$171.14	1
14305	LR063758	WIRE - ALTERNATOR	LR063758 WIRE - ALTERNATOR Standard Electric Starter Motor / From: FA000001 / To: FA999999	$162.60	1
14305	LR063760	WIRE - ALTERNATOR	LR063760 WIRE - ALTERNATOR Starter - Stop/Start System / From: FA000001 / To: FA999999	$152.73	1
14305	LR076001	WIRING - ALTERNATOR	LR076001 WIRING - ALTERNATOR Standard Electric Starter Motor / From: GA000001 / To: GA599282	$113.07	1
14305	LR076003	WIRING - ALTERNATOR	LR076003 WIRING - ALTERNATOR Starter - Stop/Start System / From: GA000001 / To: GA599282	$109.21	1
14305	LR090098	WIRING - ALTERNATOR	LR090098 WIRING - ALTERNATOR Standard Electric Starter Motor / From: GA599283 / To: GA999999	$113.07	1
14305	LR090100	WIRING - ALTERNATOR	LR090100 WIRING - ALTERNATOR Starter - Stop/Start System / From: GA599283 / To: GA999999	$109.21	1
14305	LR085673	WIRE - ALTERNATOR	LR085673 WIRE - ALTERNATOR Starter - Stop/Start System / From: HA000001 / To: HA172139	$159.73	1
14305	LR085674	WIRE - ALTERNATOR	LR085674 WIRE - ALTERNATOR Standard Electric Starter Motor / From: HA000001 / To: HA172139	$139.66	1
14305	LR107823	WIRE - ALTERNATOR	LR107823 WIRE - ALTERNATOR Starter - Stop/Start System / From: HA172140	$152.82	1
14305	LR107821	WIRE - ALTERNATOR	LR107821 WIRE - ALTERNATOR Standard Electric Starter Motor / From: HA172140	$177.21	1
