View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106126 BOLT $0.55 IN STOCK
Photo Part No Description Price (each) Stock
FS108166 BOLT $0.72 IN STOCK
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.48 IN STOCK
Photo Part No Description Price (each) Stock
LR055302 NUT - HEX. $2.15 To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.98 IN STOCK
Photo Part No Description Price (each) Stock
RYP500200 SCREW $0.97 To Order
Photo Part No Description Price (each) Stock
FA106126 SCREW $0.46 IN STOCK
Photo Part No Description Price (each) Stock
TYG500102 STUD $2.98 To Order
Photo Part No Description Price (each) Stock
LR048755 WIRING - ALTERNATOR $50.56 To Order
LR070537 WIRING - ALTERNATOR $105.05 To Order
LR106278 STRAP - EARTH $46.40 To Order
Photo Part No Description Price (each) Stock
LR048756 WIRING - ALTERNATOR $52.33 To Order
LR070538 WIRING - ALTERNATOR $109.21 To Order
LR106279 STRAP - EARTH $60.43 To Order
Photo Part No Description Price (each) Stock
LR048757 WIRING - ALTERNATOR $50.22 To Order
LR075992 WIRING - ALTERNATOR $81.94 To Order
LR106280 STRAP - EARTH $34.34 To Order
Photo Part No Description Price (each) Stock
LR051686 WIRING - TRACTION BATTERY $305.96 To Order
LR070542 WIRING - TRACTION BATTERY $281.13 IN STOCK
Photo Part No Description Price (each) Stock
LR051687 WIRING - TRACTION BATTERY $1,691.66 To Order
Photo Part No Description Price (each) Stock
LR051688 WIRING - TRACTION BATTERY $508.11 To Order
Photo Part No Description Price (each) Stock
LR051689 WIRING - TRACTION BATTERY $172.70 To Order
Photo Part No Description Price (each) Stock
LR051692 WIRING - TRACTION BATTERY $48.31 To Order
Photo Part No Description Price (each) Stock
LR051480 CABLE - BATTERY POSITIVE $191.64 To Order
LR063937 CABLE - BATTERY POSITIVE $160.41 To Order
LR076008 CABLE - BATTERY POSITIVE $154.71 To Order
...and 1 more part variants. See table on right for more details.
View All

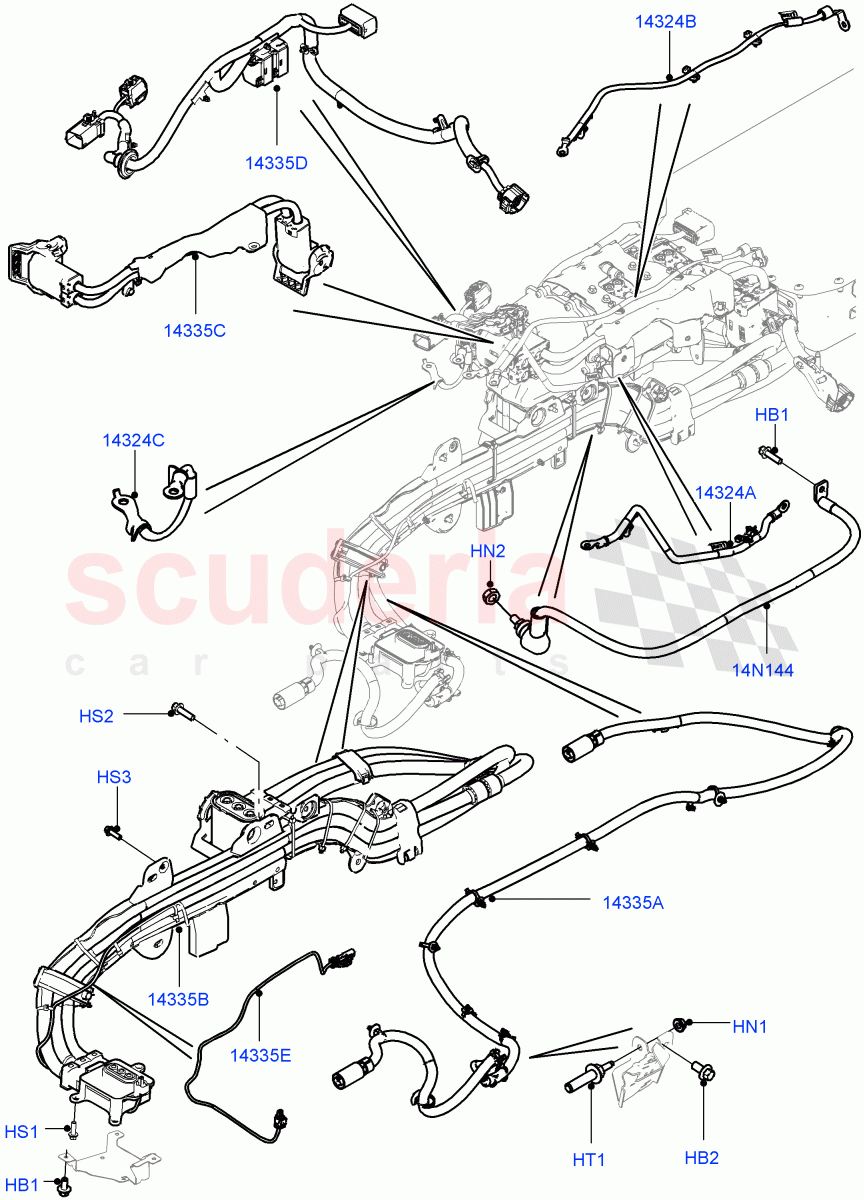

Hybrid Electrical Modules (Traction Battery Cables) (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD, 3.0 V6 Diesel Electric Hybrid Eng, 3.0 V6 D Gen2 Mono Turbo) ((V) FROMEA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS106126
BOLT
Hexagonal Head, M6 x 12MM / From: EA000001
IN STOCK 		$0.55 2
HB2 FS108166
BOLT
Hexagonal Head, M8 X 16MM / From: EA000001
IN STOCK 		$0.72 1
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: EA000001
IN STOCK 		$1.48 2
HN2 LR055302
NUT - HEX.
M8 / From: EA000001 		$2.15 1
HS1 FS106206
SCREW
Hexagonal Head, M6 X 20MM / From: EA000001
IN STOCK 		$0.98 5
HS2 RYP500200
SCREW
Hexagonal Head, M6 X 20MM / From: EA000001 		$0.97 1
HS3 FA106126
SCREW
Hexagonal Head, M6 x 12MM / From: EA000001
IN STOCK 		$0.46 2
HT1 TYG500102
STUD
M6 X 16MM + M10 X 38MM, Stud / From: EA000001 		$2.98 1
14N144 LR051480
CABLE - BATTERY POSITIVE
12V, Inverter To Main Harness / From: EA000001 / To: FA504833 		$191.64 1
14N144 LR063937
CABLE - BATTERY POSITIVE
12V, Inverter To Main Harness / From: FA504834 / To: FA999999 		$160.41 1
14N144 LR076008
CABLE - BATTERY POSITIVE
12V, Inverter To Main Harness / From: GA000001 / To: GA599282 		$154.71 1
14N144 LR090107
CABLE - BATTERY POSITIVE
12V, Inverter To Main Harness / From: GA599283 		$169.91 1
14324A LR048755
WIRING - ALTERNATOR
Inverter To Body / To: FA999999 		$50.56 1
14324A LR070537
WIRING - ALTERNATOR
Inverter To Body / From: GA000001 / To: HA172139 		$105.05 1
14324A LR106278
STRAP - EARTH
Inverter To Body / From: HA172140 		$46.40 1
14324B LR048756
WIRING - ALTERNATOR
Battery To Body / To: FA999999 		$52.33 1
14324B LR070538
WIRING - ALTERNATOR
Battery To Body / From: GA000001 / To: HA172139 		$109.21 1
14324B LR106279
STRAP - EARTH
Battery To Body / From: HA172140 		$60.43 1
14324C LR048757
WIRING - ALTERNATOR
Cradle To Body / To: FA999999 		$50.22 1
14324C LR075992
WIRING - ALTERNATOR
Cradle To Body / From: GA000001 / To: HA172139 		$81.94 1
14324C LR106280
STRAP - EARTH
Cradle To Body / From: HA172140 		$34.34 1
14335A LR051686
WIRING - TRACTION BATTERY
A/C Compressor Power Supply / To: FA999999 		$305.96 1
14335A LR070542
WIRING - TRACTION BATTERY
A/C Compressor Power Supply / From: GA000001
IN STOCK 		$281.13 1
14335B LR051687
WIRING - TRACTION BATTERY
Inverter To Motor Generator / From: EA000001 		$1,691.66 1
14335C LR051688
WIRING - TRACTION BATTERY
Battery To Inverter / From: EA000001 		$508.11 1
14335D LR051689
WIRING - TRACTION BATTERY
From: EA000001 		$172.70 1
14335E LR051692
WIRING - TRACTION BATTERY
From: EA000001 		$48.31 1
