Name: Radiator/Coolant Overflow Container (Main Unit) (3.0L AJ20D6 Diesel High) ((V) FROMLA000001)
Rating: 4.1 (1 reviews)

Radiator/Coolant Overflow Container (Main Unit) (3.0L AJ20D6 Diesel High) ((V) FROMLA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] - Radiator/Coolant Overflow Container (Main Unit) (3.0L AJ20D6 Diesel High) ((V) FROMLA000001)

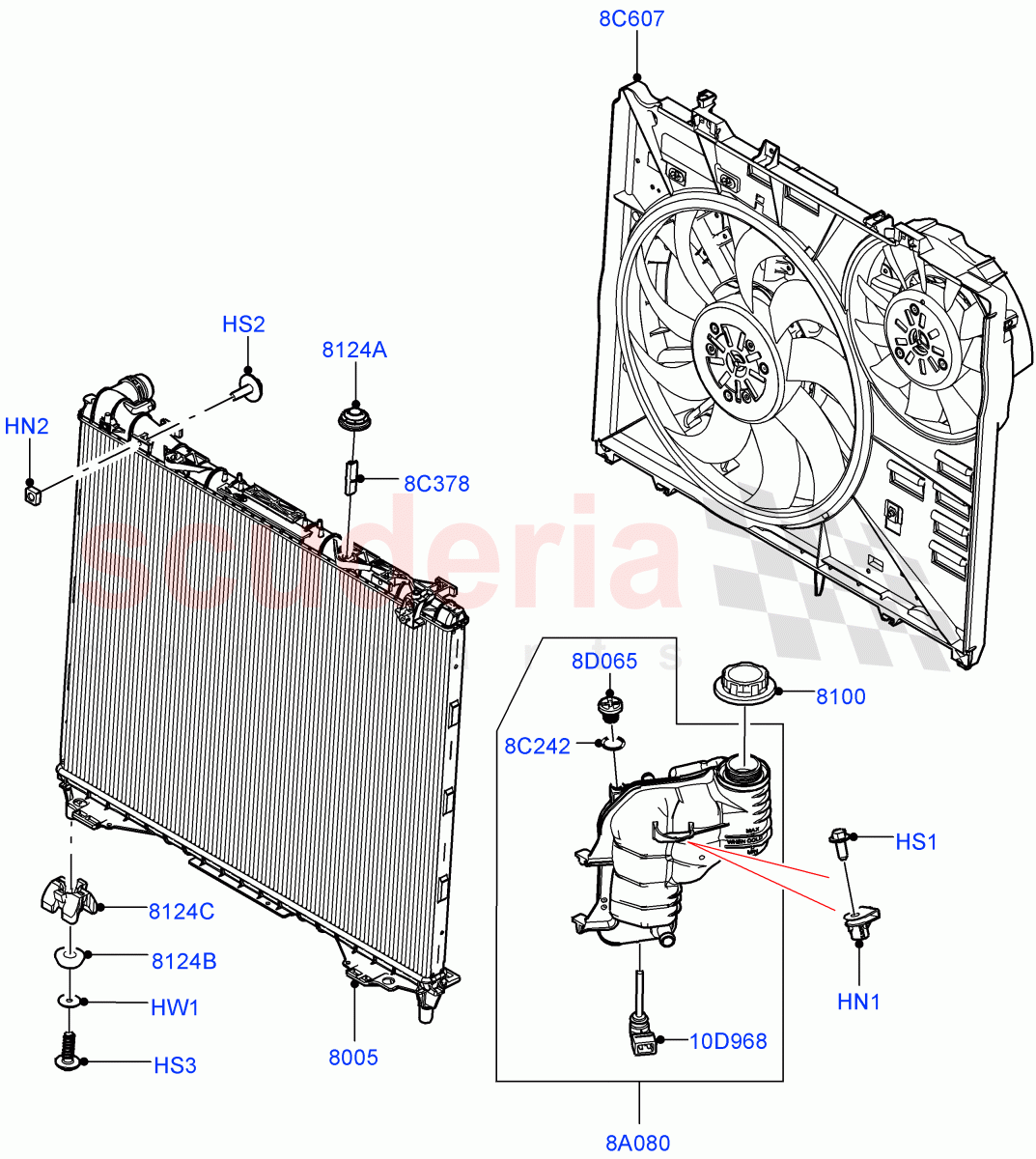

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR038068	NUT - SPECIAL	$1.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR040736	NUT - SQUARE	$1.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	BYP500170	SCREW	$1.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR033039	SCREW AND WASHER - HEX HEAD	$1.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038052	SCREW	$2.49	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	VYF500090	WASHER	$0.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133649	RADIATOR	$756.09	To Order
	LR162130	RADIATOR	$756.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR176861	CAP - OVERFLOW CONTAINER	$17.11	To Order

Photo	Part No	Description	Price (each)	Stock
	PDI500012	INSULATOR - RADIATOR MOUNTING	$2.73	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR034569	INSULATOR - RADIATOR SUPPORT	$6.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034565	INSULATOR - RADIATOR SUPPORT	$6.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088547	TANK - RADIATOR OVERFLOW	$156.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007315	SEAL	$2.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR034571	PIN - RADIATOR MOUNTING	$4.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125276	MOTOR AND FAN - ENGINE COOLING	$787.69	To Order
	LR173827	MOTOR AND FAN - ENGINE COOLING	$773.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR055301	VALVE - BLEEDER SCREW	$9.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	PCJ500030	SENSOR - COOLANT LEVEL	$24.99	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	LR038068	NUT - SPECIAL	LR038068 NUT - SPECIAL Expansion Tank, Nut U Spring M6 Push On / From: LA000001	$1.74	1
HN2	LR040736	NUT - SQUARE IN STOCK	LR040736 NUT - SQUARE M6, Square / From: LA000001 IN STOCK	$1.29	2
HS1	BYP500170	SCREW IN STOCK	BYP500170 SCREW Hexagonal Head, M6 x 14MM / From: LA000001 IN STOCK	$1.24	1
HS2	LR033039	SCREW AND WASHER - HEX HEAD	LR033039 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 x 19MM / From: LA000001	$1.68	2
HS3	LR038052	SCREW IN STOCK	LR038052 SCREW 8 x 24MM, Torx / From: LA000001 IN STOCK	$2.49	2
HW1	VYF500090	WASHER	VYF500090 WASHER 8.4 X 31 X 1.6 / From: LA000001	$0.81	2
8A080	LR088547	TANK - RADIATOR OVERFLOW	LR088547 TANK - RADIATOR OVERFLOW From: LA000001	$156.15	1
8C242	LR007315	SEAL IN STOCK	LR007315 SEAL Bleeder Screw / From: LA000001 IN STOCK	$2.25	1
8C378	LR034571	PIN - RADIATOR MOUNTING	LR034571 PIN - RADIATOR MOUNTING Radiator Mounting, Upper / From: LA000001	$4.86	2
8C607	LR125276	MOTOR AND FAN - ENGINE COOLING	LR125276 MOTOR AND FAN - ENGINE COOLING From: LA000001 / To: LA748956	$787.69	1
8C607	LR173827	MOTOR AND FAN - ENGINE COOLING	LR173827 MOTOR AND FAN - ENGINE COOLING From: LA748957	$773.84	1
8D065	LR055301	VALVE - BLEEDER SCREW IN STOCK	LR055301 VALVE - BLEEDER SCREW Bleeder Screw / From: LA000001 IN STOCK	$9.02	1
10D968	PCJ500030	SENSOR - COOLANT LEVEL IN STOCK	PCJ500030 SENSOR - COOLANT LEVEL From: LA000001 IN STOCK	$24.99	1
8005	LR133649	RADIATOR	LR133649 RADIATOR From: LA000001 / To: NA205192	$756.09	1
8005	LR162130	RADIATOR	LR162130 RADIATOR From: NA205193	$756.09	1
8100	LR176861	CAP - OVERFLOW CONTAINER	LR176861 CAP - OVERFLOW CONTAINER From: LA000001	$17.11	1
8124A	PDI500012	INSULATOR - RADIATOR MOUNTING IN STOCK	PDI500012 INSULATOR - RADIATOR MOUNTING Radiator Mounting, Top / From: LA000001 IN STOCK	$2.73	2
8124B	LR034569	INSULATOR - RADIATOR SUPPORT	LR034569 INSULATOR - RADIATOR SUPPORT Lower / From: LA000001	$6.39	2
8124C	LR034565	INSULATOR - RADIATOR SUPPORT	LR034565 INSULATOR - RADIATOR SUPPORT Radiator Support / From: LA000001	$6.20	2

Radiator/Coolant Overflow Container (Main Unit) (3.0L Aj20D6 Diesel High) ((V) Fromla000001)

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6]

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] - Radiator/Coolant Overflow Container (Main Unit) (3.0L AJ20D6 Diesel High) ((V) FROMLA000001)
