Cooling System Pipes And Hoses (3.0L Aj20D6 Diesel High, With Extra Engine Cooling System) ((V)...

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] - Cooling System Pipes And Hoses (3.0L AJ20D6 Diesel High, With Extra Engine Cooling System) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106122 BOLT $4.08 To Order
Photo Part No Description Price (each) Stock
DYQ100230 RIVET - SPECIAL $2.17 To Order
Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED $0.60 IN STOCK
Photo Part No Description Price (each) Stock
AYH100790 NUT - SPECIAL $1.24 To Order
Photo Part No Description Price (each) Stock
LR011038 PLUG - BLANKING $5.13 To Order
Photo Part No Description Price (each) Stock
KYP500400 SCREW AND WASHER $0.61 To Order
Photo Part No Description Price (each) Stock
LR066438 SCREW $3.07 To Order
Photo Part No Description Price (each) Stock
LR123076 HOSE - WATER $121.85 To Order
Photo Part No Description Price (each) Stock
LR125221 TUBE - HEATER WATER $312.76 To Order
LR155133 TUBE - HEATER WATER $302.80 To Order
Photo Part No Description Price (each) Stock
LR123724 HOSE - OIL COOLER $101.01 To Order
Photo Part No Description Price (each) Stock
LR133678 HOSE - OIL COOLER $93.54 To Order
LR144619 HOSE - OIL COOLER $101.01 To Order
Photo Part No Description Price (each) Stock
LR121395 BRACKET $26.67 To Order
LR144618 BRACKET $26.67 To Order
Photo Part No Description Price (each) Stock
LR137012 HOSE - WATER $68.02 To Order
Photo Part No Description Price (each) Stock
LR135773 HOSE - WATER $139.88 To Order
LR146747 HOSE - WATER $139.88 To Order
Photo Part No Description Price (each) Stock
LR137642 HOSE - RADIATOR $81.46 To Order
Photo Part No Description Price (each) Stock
LR137643 HOSE - WATER $200.30 To Order
Photo Part No Description Price (each) Stock
LR125233 HOSE - HEATER WATER $142.90 To Order
Photo Part No Description Price (each) Stock
LR062105 HOSE - WATER $61.50 To Order
Photo Part No Description Price (each) Stock
LR137010 HOSE - WATER $142.21 To Order
Photo Part No Description Price (each) Stock
LR135784 HOSE - RADIATOR TO ENG. VENT ELBOW $50.39 To Order
Photo Part No Description Price (each) Stock
LR139417 HOSE - COOLANT BLEED $55.48 To Order
Photo Part No Description Price (each) Stock
LR125237 HOSE - RADIATOR $119.18 To Order
Photo Part No Description Price (each) Stock
LR125242 HOSE - RADIATOR $77.18 To Order
Photo Part No Description Price (each) Stock
LR133667 HOSE - COOLING SYSTEM $133.53 To Order
Photo Part No Description Price (each) Stock
LR123725 HOSE $74.47 To Order
Photo Part No Description Price (each) Stock
LR041442 SENSOR - ENGINE COOLANT TEMPERATURE $49.15 To Order
Photo Part No Description Price (each) Stock
LR129397 VALVE - COOLANT FLOW CONTROL $137.68 To Order
Photo Part No Description Price (each) Stock
LR125224 HOSE - HEATER WATER $111.84 To Order
View All

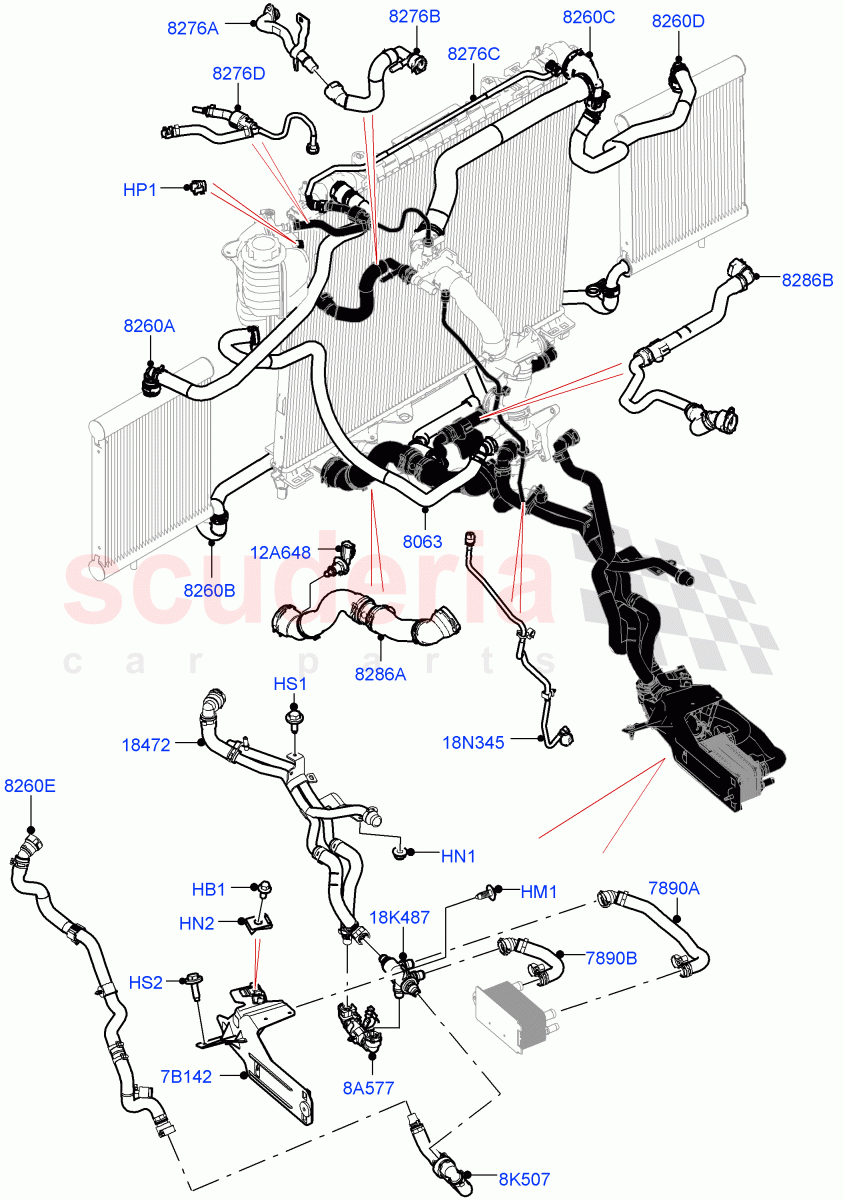

Cooling System Pipes And Hoses (3.0L AJ20D6 Diesel High, With Extra Engine Cooling System) ((V) FROMLA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS106122
BOLT
Cooler, Hexagonal Head, M6 x 12MM / From: LA000001 		$4.08 3
HM1 DYQ100230
RIVET - SPECIAL
From: LA000001 		$2.17 2
HN1 FX106046
NUT - FLANGED
Hexagonal Head, M6 / From: LA000001
IN STOCK 		$0.60 1
HN2 AYH100790
NUT - SPECIAL
M6 X 0.5-4, Nut "U" Spring / From: LA000001 		$1.24 3
HP1 LR011038
PLUG - BLANKING
Blanking, To Expansion Tank / From: LA000001 		$5.13 1
HS1 KYP500400
SCREW AND WASHER
Hexagonal Head, M6 X 16MM / From: LA000001 		$0.61 1
HS2 LR066438
SCREW
Hexagonal Head, M6 X 20MM / From: LA000001 		$3.07 2
7B142 LR121395
BRACKET
Rear / From: LA000001 / To: LA744983 		$26.67 1
7B142 LR144618
BRACKET
Rear / From: LA744984 		$26.67 1
8A577 LR133667
HOSE - COOLING SYSTEM
Inlet Pipe, Valve To Low Temperature Radiator / From: LA000001 		$133.53 1
8K507 LR123725
HOSE
Lower, To Cylinder Head / From: LA000001 		$74.47 1
12A648 LR041442
SENSOR - ENGINE COOLANT TEMPERATURE
From: LA000001 		$49.15 1
18K487 LR129397
VALVE - COOLANT FLOW CONTROL
5 Way / From: LA000001 		$137.68 1
18N345 LR125224
HOSE - HEATER WATER
Cooling System Bleed / From: LA000001 		$111.84 1
7890A LR123724
HOSE - OIL COOLER
Outlet pipe / From: LA000001 		$101.01 1
7890B LR133678
HOSE - OIL COOLER
Inlet Pipe / From: LA000001 / To: LA749052 		$93.54 1
7890B LR144619
HOSE - OIL COOLER
Inlet Pipe / From: LA749053 		$101.01 1
8063 LR123076
HOSE - WATER
From Engine To Expansion Tank / From: LA000001 		$121.85 1
8260A LR137012
HOSE - WATER
Auxiliary Radiator, Left Side / From: LA000001 		$68.02 1
8260B LR135773
HOSE - WATER
Auxiliary Radiator, Bottom / From: LA000001 / To: LA748983 		$139.88 1
8260B LR146747
HOSE - WATER
Auxiliary Radiator, Bottom / From: LA748984 		$139.88 1
8260C LR137642
HOSE - RADIATOR
Front, Top / From: LA000001 		$81.46 1
8260D LR137643
HOSE - WATER
Auxiliary Radiator, Right Side / From: LA000001 		$200.30 1
8260E LR125233
HOSE - HEATER WATER
Connects To Transmission Fluid Cooler / From: LA000001 		$142.90 1
8276A LR062105
HOSE - WATER
Inlet, Radiator / From: LA000001 		$61.50 1
8276B LR137010
HOSE - WATER
Front, To Thermostat / From: LA000001 		$142.21 1
8276C LR135784
HOSE - RADIATOR TO ENG. VENT ELBOW
Radiator To Expansion Tank Bleed / From: LA000001 		$50.39 1
8276D LR139417
HOSE - COOLANT BLEED
To Expansion Tank / From: LA000001 		$55.48 1
8286A LR125237
HOSE - RADIATOR
From Radiator To Engine / From: LA000001 		$119.18 1
8286B LR125242
HOSE - RADIATOR
Front Lower / From: LA000001 		$77.18 1
18472 LR125221
TUBE - HEATER WATER
Hose asy, return, cooler to gear / From: LA000001 / To: MA791370 		$312.76 1
18472 LR155133
TUBE - HEATER WATER
Hose asy, return, cooler to gear / From: MA791371 		$302.80 1
