Name: Inlet Manifold (3.0L AJ20D6 Diesel High) ((V) FROMLA000001)
Rating: 5.0 (1 reviews)

View All

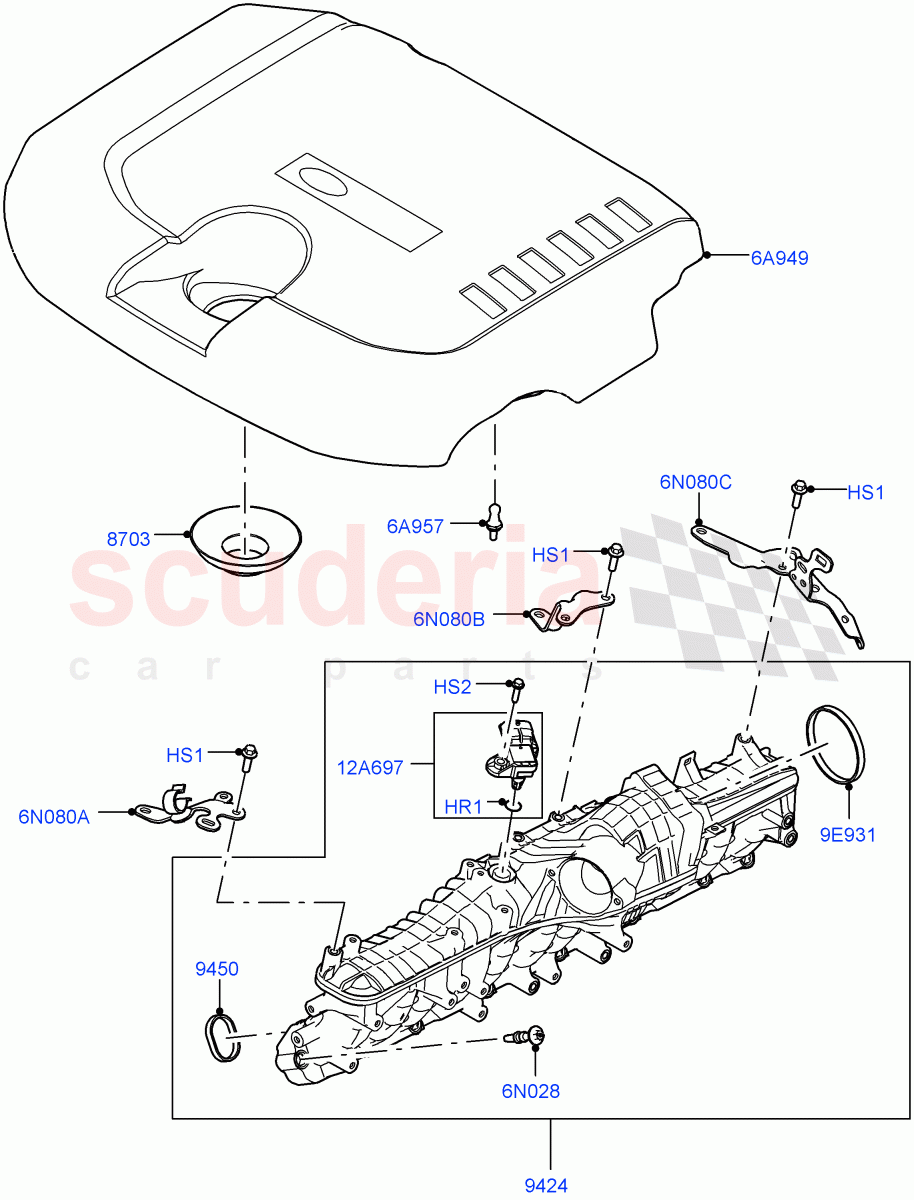

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR095783	O-RING	$4.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR130401	SCREW	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125867	OIL SPILL GAITER	$13.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125326	MANIFOLD - INLET	$639.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133631	GASKET - INTAKE MANIFOLD	$13.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125274	COVER - ENGINE TOP	$283.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038978	STUD - BALL	$3.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074085	BOLT - SPECIAL	$5.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133632	GASKET - THROTTLE	$72.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090375	SENSOR - AIR TEMPERATURE & PRESSURE	$125.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125330	BRACKET - MANIFOLD	$41.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125331	BRACKET - MANIFOLD	$39.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125332	BRACKET - MANIFOLD	$45.76	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR095783	O-RING IN STOCK	LR095783 O-RING 7.5MM, MAP Sensor / From: LA000001 IN STOCK	$4.68	1
HS1	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: LA000001 IN STOCK	$1.60	7
HS2	LR130401	SCREW	LR130401 SCREW Hexagonal Head, M5 x 20MM, MAP Sensor / From: LA000001	$0.76	1
6A949	LR125274	COVER - ENGINE TOP	LR125274 COVER - ENGINE TOP Engine / From: LA000001	$283.29	1
6A957	LR038978	STUD - BALL	LR038978 STUD - BALL From: LA000001	$3.81	1
6N028	LR074085	BOLT - SPECIAL	LR074085 BOLT - SPECIAL M6 x 42MM, Manifold To Cylinder Head / From: LA000001	$5.05	14
6N080A	LR125330	BRACKET - MANIFOLD	LR125330 BRACKET - MANIFOLD Front / From: LA000001	$41.08	1
6N080B	LR125331	BRACKET - MANIFOLD	LR125331 BRACKET - MANIFOLD Centre / From: LA000001	$39.58	1
6N080C	LR125332	BRACKET - MANIFOLD	LR125332 BRACKET - MANIFOLD Rear / From: LA000001	$45.76	1
9E931	LR133632	GASKET - THROTTLE	LR133632 GASKET - THROTTLE Throttle Body To Intake / From: LA000001	$72.21	1
12A697	LR090375	SENSOR - AIR TEMPERATURE & PRESSURE	LR090375 SENSOR - AIR TEMPERATURE & PRESSURE Pressure / From: LA000001	$125.66	1
8703	LR125867	OIL SPILL GAITER	LR125867 OIL SPILL GAITER Oil Spill / From: LA000001	$13.16	1
9424	LR125326	MANIFOLD - INLET	LR125326 MANIFOLD - INLET From: LA000001	$639.82	1
9450	LR133631	GASKET - INTAKE MANIFOLD	LR133631 GASKET - INTAKE MANIFOLD Manifold To Cylinder Head / From: LA000001	$13.77	12

Inlet Manifold (3.0L Aj20D6 Diesel High) ((V) Fromla000001)

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6]
