Cylinder Head (3.0L Aj20D6 Diesel High) ((V) Fromla000001)

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] - Cylinder Head (3.0L AJ20D6 Diesel High) ((V) FROMLA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR165690 RING - SEALING $6.36 To Order
Photo Part No Description Price (each) Stock
LR165691 RING - SEALING $6.14 To Order
Photo Part No Description Price (each) Stock
LR073648 SCREW $2.63 IN STOCK
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.58 IN STOCK
Photo Part No Description Price (each) Stock
LR071842 SCREW AND WASHER - HEX HEAD $1.31 To Order
Photo Part No Description Price (each) Stock
LR125320 CYLINDER HEAD $2,566.33 To Order
Photo Part No Description Price (each) Stock
LR140102 GASKET-CYLINDER HEAD $184.84 To Order
LR140103 GASKET-CYLINDER HEAD $184.84 To Order
LR140104 GASKET-CYLINDER HEAD $184.84 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR125319 BOLT - HEX.HEAD $8.95 To Order
Photo Part No Description Price (each) Stock
LR125580 TENSIONER - TIMING CHAIN $99.35 To Order
Photo Part No Description Price (each) Stock
LR073777 TAPPET - VALVE $50.31 To Order
Photo Part No Description Price (each) Stock
LR125590 VALVE - EXHAUST $30.21 To Order
Photo Part No Description Price (each) Stock
LR125591 VALVE - INLET $29.35 To Order
Photo Part No Description Price (each) Stock
LR125672 SPRING - VALVE $13.01 To Order
Photo Part No Description Price (each) Stock
LR073773 RETAINER - VALVE SPRING - UPPER $20.39 To Order
Photo Part No Description Price (each) Stock
LR073774 COLLET - VALVE SPRING RETAINER $3.35 To Order
Photo Part No Description Price (each) Stock
LR073775 ARM - VALVE ROCKER $53.22 To Order
Photo Part No Description Price (each) Stock
LR073776 SEAL - VALVE STEM $8.22 To Order
Photo Part No Description Price (each) Stock
LR077674 VALVE - CHECK $9.71 To Order
Photo Part No Description Price (each) Stock
LR073651 DOWEL - PIN $3.76 To Order
Photo Part No Description Price (each) Stock
LR115083 SENSOR - CYLINDER HEAD TEMPERATURE $50.26 To Order
LR155114 SENSOR - CYLINDER HEAD TEMPERATURE $63.42 To Order
Photo Part No Description Price (each) Stock
LR125479 HOSE - WATER $91.62 To Order
Photo Part No Description Price (each) Stock
LR125490 TUBE - WATER OUTLET $52.83 To Order
Photo Part No Description Price (each) Stock
LR073685 TUBE - DRAIN $24.44 To Order
View All

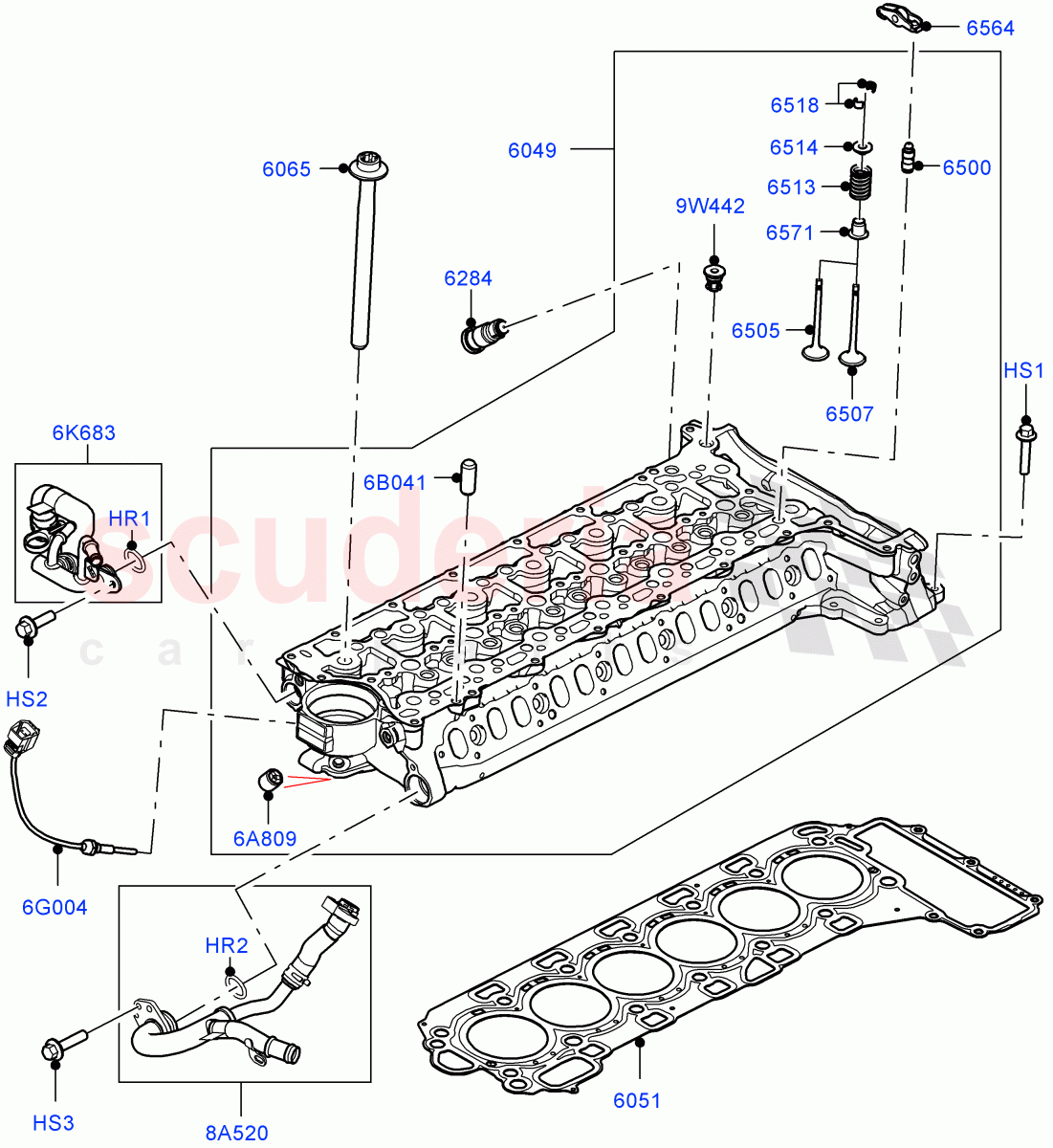

Cylinder Head (3.0L AJ20D6 Diesel High) ((V) FROMLA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR165690
RING - SEALING 		$6.36 1
HR2 LR165691
RING - SEALING
LH Coolant Outlet, 		$6.14 1
HS1 LR073648
SCREW
Hexagonal Head, M6 x 30MM / From: LA000001
IN STOCK 		$2.63 5
HS2 LR073655
SCREW
Hexagonal Head, M6 X 20MM / From: LA000001
IN STOCK 		$1.58 1
HS3 LR071842
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 X 25MM / From: LA000001 		$1.31 1
6A809 LR077674
VALVE - CHECK
From: LA000001 		$9.71 1
6B041 LR073651
DOWEL - PIN
8 x 19MM / From: LA000001 		$3.76 2
6G004 LR115083
SENSOR - CYLINDER HEAD TEMPERATURE
Temperature / From: LA000001 / To: MA779323 		$50.26 1
6G004 LR155114
SENSOR - CYLINDER HEAD TEMPERATURE
Temperature / From: MA779324 		$63.42 1
6K683 LR125479
HOSE - WATER
RH Front / From: LA000001 		$91.62 1
8A520 LR125490
TUBE - WATER OUTLET
LH Front / From: LA000001 		$52.83 1
9W442 LR073685
TUBE - DRAIN
Drain / From: LA000001 		$24.44 1
6049 LR125320
CYLINDER HEAD
With Valves / From: LA000001 		$2,566.33 1
6051 LR140102
GASKET-CYLINDER HEAD
0.90mm, Grade 1 / From: LA000001 / To: MA771830 		$184.84 1
6051 LR140103
GASKET-CYLINDER HEAD
1.00MM, Grade 2 / From: LA000001 / To: MA771830 		$184.84 1
6051 LR140104
GASKET-CYLINDER HEAD
1.10mm, Grade 3 / From: LA000001 / To: MA771830 		$184.84 1
6051 LR140105
GASKET-CYLINDER HEAD
1.20MM, Grade 4 / From: LA000001 / To: MA771830 		$184.84 1
6051 LR140106
GASKET-CYLINDER HEAD
1.30MM, Grade 5 / From: LA000001 / To: MA771830 		$184.84 1
6051 LR151671
GASKET-CYLINDER HEAD
0.90mm, Grade 1 / From: MA771831 		$394.26 1
6051 LR151674
GASKET-CYLINDER HEAD
1.00MM, Grade 2 / From: MA771831 		$394.26 1
6051 LR151677
GASKET-CYLINDER HEAD
1.10mm, Grade 3 / From: MA771831 		$326.51 1
6051 LR151683
GASKET-CYLINDER HEAD
1.20MM, Grade 4 / From: MA771831 		$394.26 1
6051 LR151684
GASKET-CYLINDER HEAD
1.30MM, Grade 5 / From: MA771831 		$375.50 1
6065 LR125319
BOLT - HEX.HEAD
From: LA000001 		$8.95 14
6284 LR125580
TENSIONER - TIMING CHAIN
Secondary / From: LA000001 		$99.35 1
6500 LR073777
TAPPET - VALVE
From: LA000001 		$50.31 24
6505 LR125590
VALVE - EXHAUST
From: LA000001 		$30.21 12
6507 LR125591
VALVE - INLET
From: LA000001 		$29.35 12
6513 LR125672
SPRING - VALVE
From: LA000001 		$13.01 24
6514 LR073773
RETAINER - VALVE SPRING - UPPER
From: LA000001 		$20.39 24
6518 LR073774
COLLET - VALVE SPRING RETAINER
From: LA000001 		$3.35 48
6564 LR073775
ARM - VALVE ROCKER
From: LA000001 		$53.22 24
6571 LR073776
SEAL - VALVE STEM
From: LA000001 		$8.22 24
