Turbocharger (Lh Side - Primary, Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo) ((V) Fromfa000001)

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Turbocharger (LH Side - Primary, Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo) ((V) FROMFA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR014200 BOLT - HEX.HEAD $1.09 To Order
LR113014 BOLT - HEX.HEAD $0.98 To Order
LR105437 BOLT - HEX.HEAD $0.86 To Order
Photo Part No Description Price (each) Stock
1419376 BOLT $2.57 To Order
Photo Part No Description Price (each) Stock
LR023967 BOLT - BANJO $19.53 To Order
Photo Part No Description Price (each) Stock
LR123934 BOLT $2.57 To Order
Photo Part No Description Price (each) Stock
LR106277 NUT - HEX. - FLANGED $2.17 IN STOCK
LR106277 NUT - HEX. - FLANGED $2.17 IN STOCK
Photo Part No Description Price (each) Stock
LR129336 RING - SEALING $5.15 To Order
Photo Part No Description Price (each) Stock
LR006028 SCREW $2.70 To Order
Photo Part No Description Price (each) Stock
4467593 BOLT - HEX.HEAD $0.71 To Order
Photo Part No Description Price (each) Stock
LR000622 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
RYP500960 SCREW $0.57 To Order
Photo Part No Description Price (each) Stock
4408651 SCREW $1.26 To Order
Photo Part No Description Price (each) Stock
LR008722 CLIP - SPECIAL $3.86 To Order
Photo Part No Description Price (each) Stock
1372726 GASKET - OIL TUBE $13.36 To Order
Photo Part No Description Price (each) Stock
LR061975 HOSE - OIL RETURN $87.77 To Order
Photo Part No Description Price (each) Stock
LR072560 PIPE - OIL FEED $95.03 To Order
Photo Part No Description Price (each) Stock
LR061998 TURBOCHARGER $2,918.48 To Order
LR084605 TURBOCHARGER $2,895.30 To Order
Photo Part No Description Price (each) Stock
LR062001 BRACKET - TURBOCHARGER $31.35 To Order
LR077842 BRACKET - TURBOCHARGER $44.17 To Order
Photo Part No Description Price (each) Stock
LR061985 TUBE - WATER OUTLET $354.00 To Order
LR092500 TUBE - WATER OUTLET $348.98 To Order
Photo Part No Description Price (each) Stock
LR084664 GASKET - EXHAUST MANIFOLD $62.00 To Order
Photo Part No Description Price (each) Stock
LR062102 GASKET - TURBOCHARGER COOLING $7.98 To Order
Photo Part No Description Price (each) Stock
LR069687 HEAT SHIELD - TURBOCHARGER $25.21 To Order
Photo Part No Description Price (each) Stock
LR013234 GASKET - OIL TUBE $9.79 To Order
Photo Part No Description Price (each) Stock
LR013235 GASKET - OIL RETURN HOSE $5.18 To Order
View All

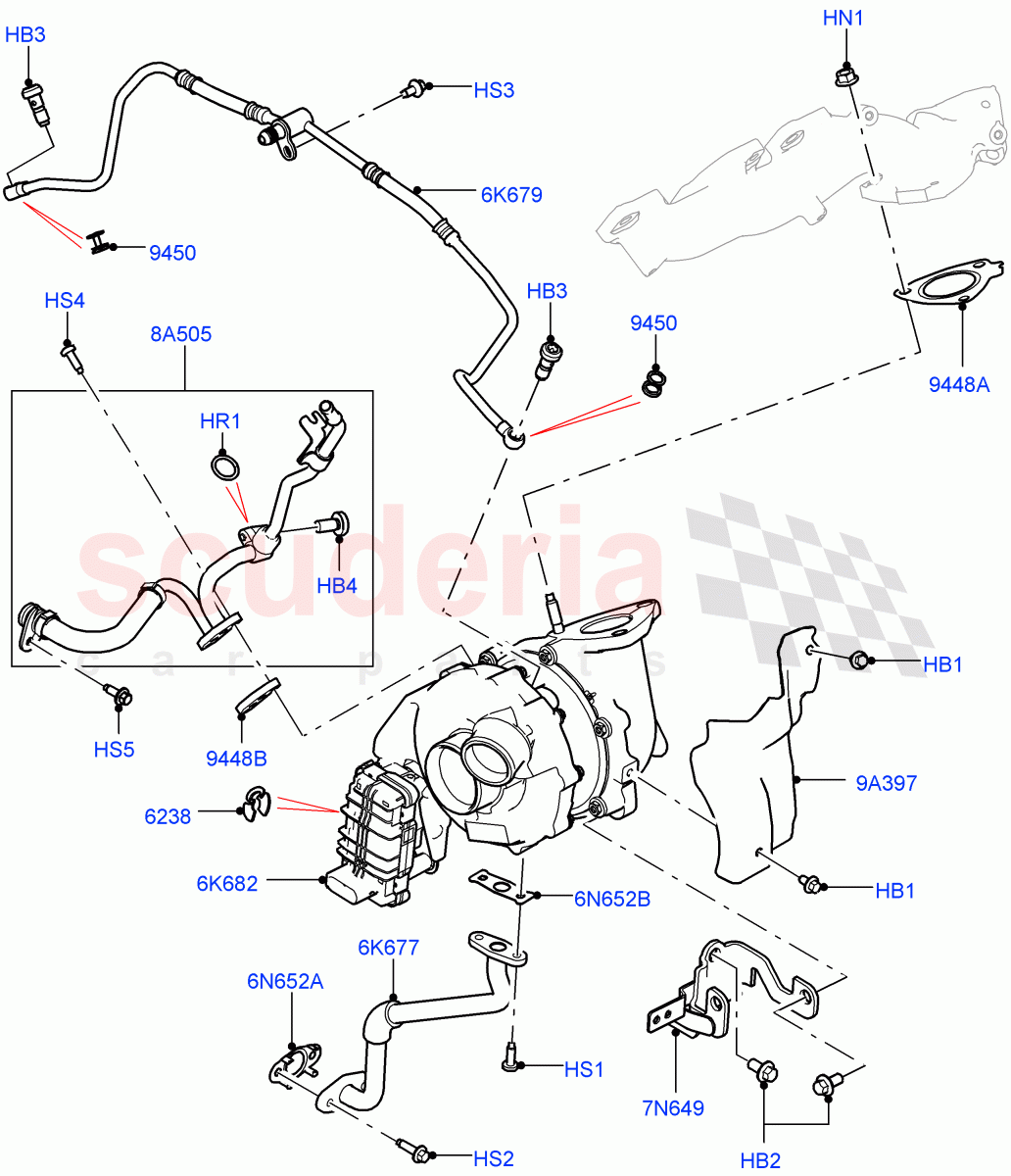

Turbocharger (LH Side - Primary, Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo) ((V) FROMFA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR014200
BOLT - HEX.HEAD
Hexagonal Head, M6 X 10MM / From: FA000001 / To: HA166615 		$1.09 5
HB1 LR113014
BOLT - HEX.HEAD
Hexagonal Head, M6 x 11.5MM / From: JA187779 		$0.98 5
HB1 LR105437
BOLT - HEX.HEAD
Heat Shield, Hexagonal Head, M6 X 8MM / From: HA166616 / To: JA187778 		$0.86 5
HB2 1419376
BOLT
Hexagonal Head, M8 X 16MM / From: FA000001 		$2.57 4
HB3 LR023967
BOLT - BANJO
Banjo Bolt, Hexagonal Head, Service Part May Differ From Production, Turbocharger Oil Feed / From: FA000001 		$19.53 2
HB4 LR123934
BOLT
M6 x 12MM, Torx / From: FA000001 		$2.57 1
HN1 LR106277
NUT - HEX. - FLANGED
M8 / From: FA000001 / To: JA193550
IN STOCK 		$2.17 3
HN1 LR106277
NUT - HEX. - FLANGED
M8 / From: JA193551
IN STOCK 		$2.17 3
HR1 LR129336
RING - SEALING
11.2 X 1.8 / From: FA000001 		$5.15 1
HS1 LR006028
SCREW
M6 X 16MM, Torx / From: FA000001 		$2.70 2
HS2 4467593
BOLT - HEX.HEAD
Hexagonal Head, M6 X 20MM / From: FA000001 		$0.71 2
HS3 LR000622
SCREW
M6 x 12MM, Tube / From: FA000001 		$0.61 1
HS4 RYP500960
SCREW
M6 X 16MM, Torx / From: FA000001 		$0.57 2
HS5 4408651
SCREW
M6 X 14MM / From: FA000001 		$1.26 1
6K677 LR061975
HOSE - OIL RETURN
From: FA000001 		$87.77 1
6K679 LR072560
PIPE - OIL FEED
Includes Banjo Bolt / From: FA000001 		$95.03 1
6K682 LR061998
TURBOCHARGER
Primary / From: FA000001 / To: GA554433 		$2,918.48 1
6K682 LR084605
TURBOCHARGER
Primary / From: GA554434 		$2,895.30 1
6N652A LR013234
GASKET - OIL TUBE
Lower / From: FA000001 		$9.79 1
6N652B LR013235
GASKET - OIL RETURN HOSE
Gasket - Turbocharger Oil Return Hose, Upper / From: FA000001 		$5.18 1
7N649 LR062001
BRACKET - TURBOCHARGER
Turbocharger Inlet / From: FA000001 / To: FA999999 		$31.35 1
7N649 LR077842
BRACKET - TURBOCHARGER
Turbocharger Inlet / From: GA000001 		$44.17 1
8A505 LR061985
TUBE - WATER OUTLET
Cooling For Turbocharger / From: FA000001 / To: GA587522 		$354.00 1
8A505 LR092500
TUBE - WATER OUTLET
Cooling For Turbocharger / From: GA587523 		$348.98 1
9A397 LR069687
HEAT SHIELD - TURBOCHARGER
Turbocharger / From: FA000001 		$25.21 1
6238 LR008722
CLIP - SPECIAL
From: FA000001 		$3.86 2
9448A LR084664
GASKET - EXHAUST MANIFOLD
Manifold To Turbocharger / From: FA000001 		$62.00 1
9448B LR062102
GASKET - TURBOCHARGER COOLING
Cooling For Turbocharger / From: FA000001 		$7.98 1
9450 1372726
GASKET - OIL TUBE
Banjo Washer / From: FA000001 		$13.36 2
