Name: Turbocharger (LH Side - Primary) (3.0L 24V DOHC V6 TC Diesel, 3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6 Diesel Electric Hybrid Eng) ((V) FROMAA000001)
Rating: 4.1 (1 reviews)

Turbocharger (LH Side - Primary) (3.0L 24V DOHC V6 TC Diesel, 3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6 Diesel Electric Hybrid Eng) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Turbocharger (LH Side - Primary) (3.0L 24V DOHC V6 TC Diesel, 3.0L 24V V6 Turbo Diesel Std Flow,...

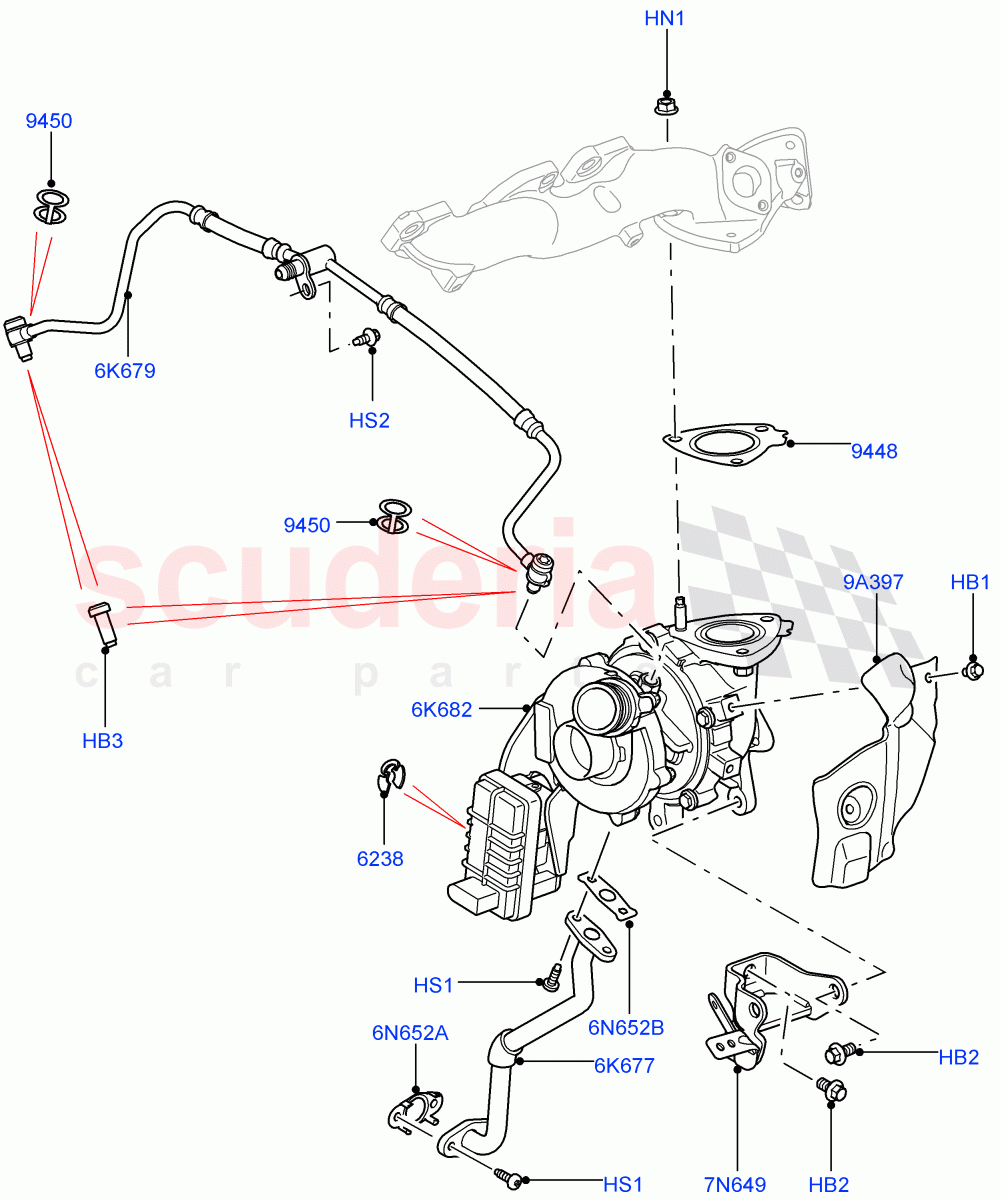

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR014200	BOLT - HEX.HEAD	$1.09	To Order
	LR113014	BOLT - HEX.HEAD	$0.98	To Order
	LR105437	BOLT - HEX.HEAD	$0.86	To Order

Photo	Part No	Description	Price (each)	Stock
	1419376	BOLT	$2.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023967	BOLT - BANJO	$19.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038607	NUT	$4.83	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR006028	SCREW	$2.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000622	SCREW	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008722	CLIP - SPECIAL	$3.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084664	GASKET - EXHAUST MANIFOLD	$61.96	To Order
	LR013236	GASKET - EXHAUST MANIFOLD	$44.04	To Order

Photo	Part No	Description	Price (each)	Stock
	1372726	GASKET - OIL TUBE	$13.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013610	HOSE - OIL RETURN	$71.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038163	PIPE - OIL FEED	$179.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029915	TURBOCHARGER	$2,760.49	To Order
	LR056369	TURBOCHARGER	$3,060.54	To Order
	LR049590	TURBOCHARGER	$2,038.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013484	BRACKET - TURBOCHARGER	$22.59	To Order
	LR079477	BRACKET - TURBOCHARGER	$26.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013615	HEAT SHIELD - TURBOCHARGER	$33.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013234	GASKET - OIL TUBE	$9.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013235	GASKET - OIL RETURN HOSE	$5.17	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR014200	BOLT - HEX.HEAD	LR014200 BOLT - HEX.HEAD Heat Shield, Hexagonal Head, M6 X 10MM / To: HA166615	$1.09	3
HB1	LR113014	BOLT - HEX.HEAD	LR113014 BOLT - HEX.HEAD Heat Shield, Hexagonal Head, M6 x 11.5MM / From: JA187779	$0.98	3
HB1	LR105437	BOLT - HEX.HEAD	LR105437 BOLT - HEX.HEAD Heat Shield, Hexagonal Head, M6 X 8MM / From: HA166616 / To: JA187778	$0.86	3
HB2	1419376	BOLT	1419376 BOLT Bracket, Hexagonal Head, M8 X 16MM, Turbocharger Assembly	$2.57	3
HB3	LR023967	BOLT - BANJO	LR023967 BOLT - BANJO Banjo Bolt, Hexagonal Head, Service Part May Differ From Production, Turbocharger Oil Feed	$19.52	2
HN1	LR038607	NUT IN STOCK	LR038607 NUT M8, Turbocharger Inlet IN STOCK	$4.83	3
HS1	LR006028	SCREW	LR006028 SCREW M6 X 16MM, Torx, Tube - Oil Return	$2.70	4
HS2	LR000622	SCREW	LR000622 SCREW M6 x 12MM, Tube	$0.61	1
6K677	LR013610	HOSE - OIL RETURN	LR013610 HOSE - OIL RETURN	$71.34	1
6K679	LR038163	PIPE - OIL FEED	LR038163 PIPE - OIL FEED Includes Banjo Bolt	$179.82	1
6K682	LR029915	TURBOCHARGER	LR029915 TURBOCHARGER LH, New Part-Please Check For Reman Version, Primary / To: EA326005	$2,760.49	1
6K682	LR056369	TURBOCHARGER	LR056369 TURBOCHARGER LH, New Part-Please Check For Reman Version, Primary / From: EA326006	$3,060.54	1
6K682	LR049590	TURBOCHARGER	LR049590 TURBOCHARGER LH, Primary, Remanufactured Part	$2,038.05	1
6N652A	LR013234	GASKET - OIL TUBE	LR013234 GASKET - OIL TUBE Lower, Tube - Oil Return	$9.79	1
6N652B	LR013235	GASKET - OIL RETURN HOSE	LR013235 GASKET - OIL RETURN HOSE Gasket - Turbocharger Oil Return Hose, Upper	$5.17	1
7N649	LR013484	BRACKET - TURBOCHARGER	LR013484 BRACKET - TURBOCHARGER Turbocharger / To: FA999999	$22.59	1
7N649	LR079477	BRACKET - TURBOCHARGER	LR079477 BRACKET - TURBOCHARGER Turbocharger / From: GA000001	$26.59	1
9A397	LR013615	HEAT SHIELD - TURBOCHARGER	LR013615 HEAT SHIELD - TURBOCHARGER LH, Turbocharger	$33.60	1
6238	LR008722	CLIP - SPECIAL	LR008722 CLIP - SPECIAL	$3.86	2
9448	LR084664	GASKET - EXHAUST MANIFOLD	LR084664 GASKET - EXHAUST MANIFOLD Manifold To Turbocharger / From: FA000001	$61.96	1
9448	LR013236	GASKET - EXHAUST MANIFOLD	LR013236 GASKET - EXHAUST MANIFOLD Manifold To Turbocharger / To: EA999999	$44.04	1
9450	1372726	GASKET - OIL TUBE	1372726 GASKET - OIL TUBE Banjo Washer	$13.35	2

Turbocharger (Lh Side - Primary) (3.0L 24V Dohc V6 Tc Diesel, 3.0L 24V V6 Turbo Diesel Std Flow,...

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Turbocharger (LH Side - Primary) (3.0L 24V DOHC V6 TC Diesel, 3.0L 24V V6 Turbo Diesel Std Flow,...
