Name: Auxiliary Fuel Fired Pre-Heater (Heater Components) (3.0L DOHC GDI SC V6 PETROL, With Fresh Air Heater) ((V) TOHA999999)
Rating: 4.4 (1 reviews)

Auxiliary Fuel Fired Pre-Heater (Heater Components) (3.0L DOHC GDI SC V6 PETROL, With Fresh Air Heater) ((V) TOHA999999) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI] - Auxiliary Fuel Fired Pre-Heater (Heater Components) (3.0L DOHC GDI SC V6 PETROL, With Fresh Air...

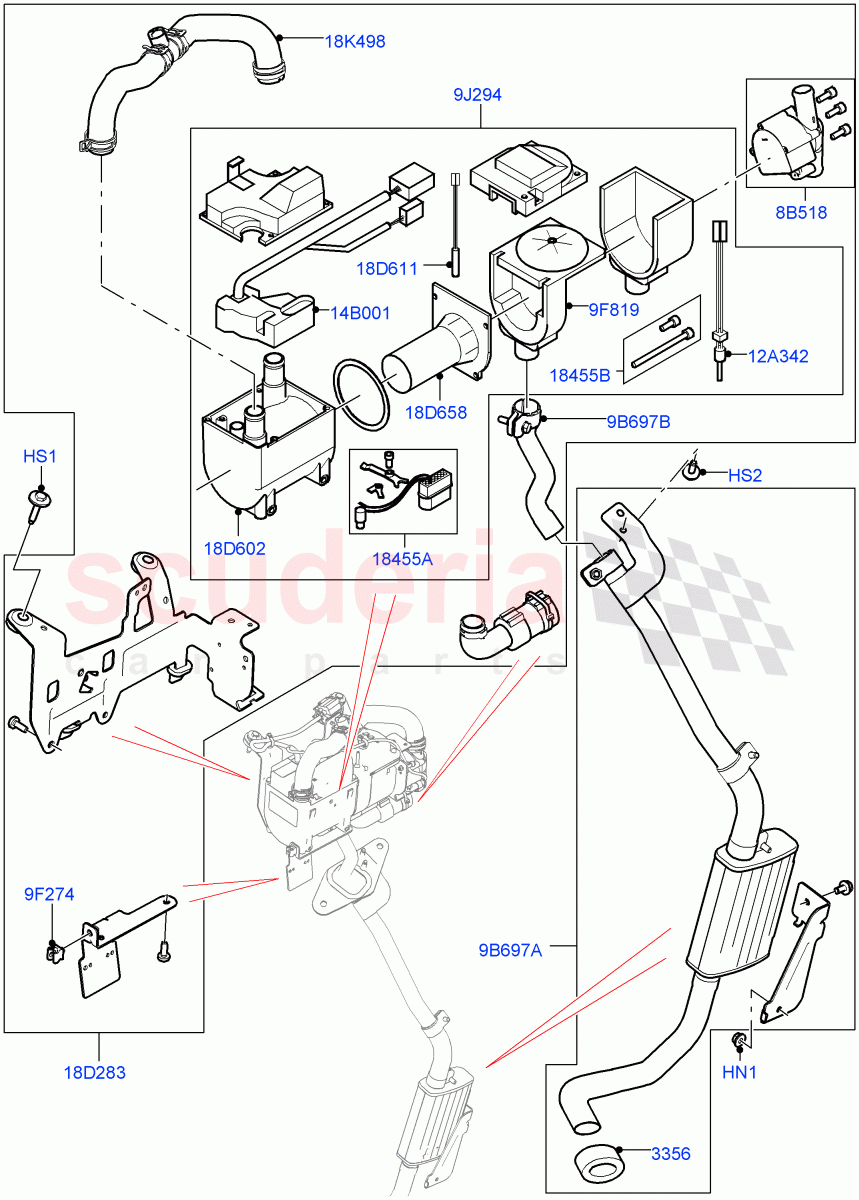

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.21	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501590	SCREW	$1.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR038847	BUSH - FFH EXHAUST TUBE	$15.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039070	PUMP - WATER - FFH	$210.63	To Order

Photo	Part No	Description	Price (each)	Stock
	MAN500020	CLIP - FUEL PIPE SECURING	$6.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049071	FAN - AUXILIARY HEATER	$180.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049073	HEATER - AUXILIARY	$2,316.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036350	GLOW PLUG - AUXILIARY HEATER	$128.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036352	CONTROL UNIT - AUXILIARY HEATER	$390.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036347	KIT - AUXILIARY HEATR - ADDIT.PARTS	$84.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036344	KIT - AUXILIARY HEATR - ADDIT.PARTS	$9.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049072	HEATER - AUXILIARY	$2,574.94	To Order
	LR087501	HEATER - AUXILIARY	$2,452.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036346	HEAT EXCHANGER - FUEL FIRED HEATER	$122.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036351	SENSOR	$65.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036349	BURNER - FUEL FIRED HEATER	$380.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036345	HOSE - AUXILIARY HEATER OUTLET	$55.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR036322	TUBE - AUXILIARY HEATER EXHAUST	$286.97	To Order
	LR070499	TUBE - AUXILIARY HEATER EXHAUST	$209.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036323	TUBE - AUXILIARY HEATER EXHAUST	$54.89	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 IN STOCK	$1.47	1
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30	$4.21	2
HS2	RYG501590	SCREW IN STOCK	RYG501590 SCREW Hexagonal Head, M6 X 20MM IN STOCK	$1.00	2
8B518	LR039070	PUMP - WATER - FFH	LR039070 PUMP - WATER - FFH	$210.63	1
9B697A	LR036322	TUBE - AUXILIARY HEATER EXHAUST	LR036322 TUBE - AUXILIARY HEATER EXHAUST Exhaust, With Silencer / To: FA513379	$286.97	1
9B697A	LR070499	TUBE - AUXILIARY HEATER EXHAUST	LR070499 TUBE - AUXILIARY HEATER EXHAUST Exhaust, With Silencer / From: FA513380	$209.46	1
9B697B	LR036323	TUBE - AUXILIARY HEATER EXHAUST IN STOCK	LR036323 TUBE - AUXILIARY HEATER EXHAUST Exhaust IN STOCK	$54.89	1
9F274	MAN500020	CLIP - FUEL PIPE SECURING	MAN500020 CLIP - FUEL PIPE SECURING For Fuel Tube	$6.41	1
9F819	LR049071	FAN - AUXILIARY HEATER	LR049071 FAN - AUXILIARY HEATER	$180.84	1
9J294	LR049073	HEATER - AUXILIARY	LR049073 HEATER - AUXILIARY To: GA554166	$2,316.71	1
12A342	LR036350	GLOW PLUG - AUXILIARY HEATER	LR036350 GLOW PLUG - AUXILIARY HEATER	$128.48	1
14B001	LR036352	CONTROL UNIT - AUXILIARY HEATER	LR036352 CONTROL UNIT - AUXILIARY HEATER	$390.38	1
18D283	LR049072	HEATER - AUXILIARY	LR049072 HEATER - AUXILIARY Complete Assembly / To: GA554166	$2,574.94	1
18D283	LR087501	HEATER - AUXILIARY	LR087501 HEATER - AUXILIARY Complete Assembly / From: GA554167	$2,452.32	1
18D602	LR036346	HEAT EXCHANGER - FUEL FIRED HEATER	LR036346 HEAT EXCHANGER - FUEL FIRED HEATER	$122.72	1
18D611	LR036351	SENSOR	LR036351 SENSOR Flame	$65.74	1
18D658	LR036349	BURNER - FUEL FIRED HEATER	LR036349 BURNER - FUEL FIRED HEATER	$380.88	1
18K498	LR036345	HOSE - AUXILIARY HEATER OUTLET IN STOCK	LR036345 HOSE - AUXILIARY HEATER OUTLET Outlet, With Clamps IN STOCK	$55.69	1
3356	LR038847	BUSH - FFH EXHAUST TUBE	LR038847 BUSH - FFH EXHAUST TUBE Exhaust Tube	$15.69	1
18455A	LR036347	KIT - AUXILIARY HEATR - ADDIT.PARTS	LR036347 KIT - AUXILIARY HEATR - ADDIT.PARTS Coolant Temperature Sensor, Fixing, Overheat Sensor	$84.05	1
18455B	LR036344	KIT - AUXILIARY HEATR - ADDIT.PARTS	LR036344 KIT - AUXILIARY HEATR - ADDIT.PARTS Fixing	$9.57	1

Auxiliary Fuel Fired Pre-Heater (Heater Components) (3.0L Dohc Gdi Sc V6 Petrol, With Fresh Air...

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI]

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI] - Auxiliary Fuel Fired Pre-Heater (Heater Components) (3.0L DOHC GDI SC V6 PETROL, With Fresh Air...

Add to Shopping Cart
