Name: Air Conditioning Condensr/Compressr (Front / Rear) (Premium Air Conditioning-Front/Rear, Less Electric Engine Battery) ((V) FROMKA000001)
Rating: 4.5 (1 reviews)

Air Conditioning Condensr/Compressr (Front / Rear) (Premium Air Conditioning-Front/Rear, Less Electric Engine Battery) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI] - Air Conditioning Condensr/Compressr (Front / Rear) (Premium Air Conditioning-Front/Rear, Less...

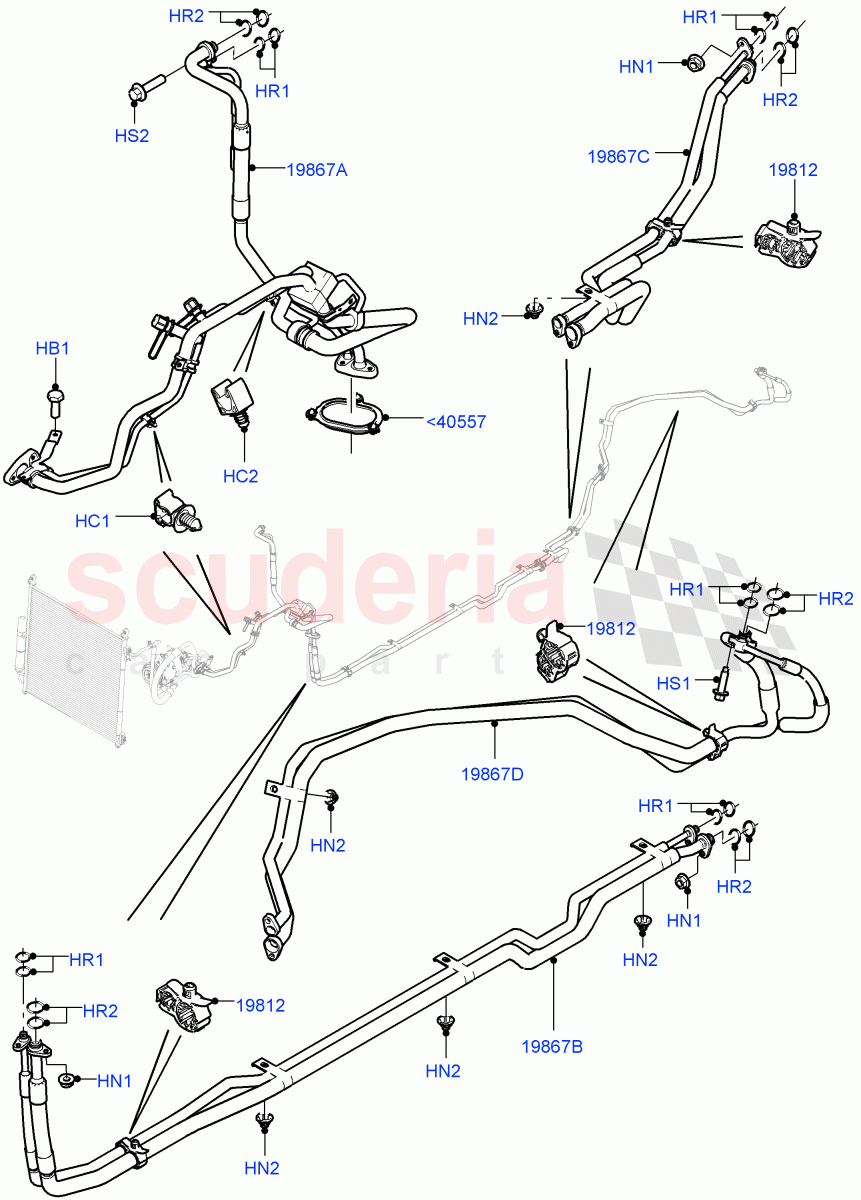

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500800	BOLT	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011519	CLIP	$2.09	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR051520	CLIP - SINGLE	$3.49	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR038544	NUT	$2.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044466	O-RING	$4.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044465	O-RING	$2.95	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	$3.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS106256	SCREW	$0.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038548	BRACKET - A/C PIPE	$19.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036404	SEAL - RUBBER	$22.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050808	TUBE- A/C EVAPORATOR INLET & OUTLET	$359.59	To Order
	LR050806	TUBE- A/C EVAPORATOR INLET & OUTLET	$458.93	To Order
	LR120448	TUBE- A/C EVAPORATOR INLET & OUTLET	$355.88	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR099641	TUBE - AUXILIARY EVAPORATOR	$172.17	To Order
	LR128628	TUBE - AUXILIARY EVAPORATOR	$188.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072189	TUBE - AUXILIARY HEATER SUPPLY	$375.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072191	TUBE - AUXILIARY EVAPORATOR	$375.42	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<40557	LR036404	SEAL - RUBBER	LR036404 SEAL - RUBBER Air Conditioning Pipe / From: KA000001	$22.23	1
HB1	RYG500800	BOLT	RYG500800 BOLT Hexagonal Head, M6 X 16MM / From: KA000001	$0.52	4
HC1	LR011519	CLIP IN STOCK	LR011519 CLIP 9.5 X 6 X 2, Single / From: KA000001 IN STOCK	$2.09	2
HC2	LR051520	CLIP - SINGLE	LR051520 CLIP - SINGLE Single / From: KA000001	$3.49	1
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: KA000001 IN STOCK	$1.47	6
HN2	LR038544	NUT	LR038544 NUT 6 X 1.6MM / From: KA000001	$2.09	5
HR1	LR044466	O-RING	LR044466 O-RING 7.65 X 1.78 / From: KA000001	$4.36	10
HR2	LR044465	O-RING	LR044465 O-RING 14 X 1.78 / From: KA000001	$2.95	10
HS1	RYG500220	SCREW IN STOCK	RYG500220 SCREW Hexagonal Head, M6 X 20MM / From: KA000001 IN STOCK	$3.50	2
HS2	FS106256	SCREW	FS106256 SCREW HEX Flange, M6 x 25MM / From: KA000001	$0.44	1
19812	LR038548	BRACKET - A/C PIPE	LR038548 BRACKET - A/C PIPE Air Conditioning Pipe / From: KA000001	$19.44	3
19867A	LR050808	TUBE- A/C EVAPORATOR INLET & OUTLET	LR050808 TUBE- A/C EVAPORATOR INLET & OUTLET Air Con Refrigerant-HF01234YF / Condenser To Evaporator, With Rear A/C / From: KA000001 / To: KA852706	$359.59	1
19867A	LR050806	TUBE- A/C EVAPORATOR INLET & OUTLET	LR050806 TUBE- A/C EVAPORATOR INLET & OUTLET Air Conditioning Refrigerant-R134A / Condenser To Evaporator, With Rear A/C / From: KA000001 / To: KA852706	$458.93	1
19867A	LR120448	TUBE- A/C EVAPORATOR INLET & OUTLET	LR120448 TUBE- A/C EVAPORATOR INLET & OUTLET Air Conditioning Refrigerant-R134A / Condenser To Evaporator, With Rear A/C / From: KA852707 / To: KA869360	$355.88	1
19867A	LR120450	TUBE- A/C EVAPORATOR INLET & OUTLET	LR120450 TUBE- A/C EVAPORATOR INLET & OUTLET Air Con Refrigerant-HF01234YF / Condenser To Evaporator, With Rear A/C / From: KA852707 / To: KA869360	$306.98	1
19867A	LR133852	TUBE- A/C EVAPORATOR INLET & OUTLET	LR133852 TUBE- A/C EVAPORATOR INLET & OUTLET Air Con Refrigerant-HF01234YF / Condenser To Evaporator, With Rear A/C / From: KA869361	$268.18	1
19867A	LR133849	TUBE- A/C EVAPORATOR INLET & OUTLET	LR133849 TUBE- A/C EVAPORATOR INLET & OUTLET Air Conditioning Refrigerant-R134A / Condenser To Evaporator, With Rear A/C / From: KA869361	$371.31	1
19867B	LR099641	TUBE - AUXILIARY EVAPORATOR	LR099641 TUBE - AUXILIARY EVAPORATOR Front, Set Of 2 Pieces, With Rear A/C / From: KA000001 / To: LA884480	$172.17	1
19867B	LR128628	TUBE - AUXILIARY EVAPORATOR	LR128628 TUBE - AUXILIARY EVAPORATOR Front, Set Of 2 Pieces, With Rear A/C / From: LA884481	$188.43	1
19867C	LR072189	TUBE - AUXILIARY HEATER SUPPLY	LR072189 TUBE - AUXILIARY HEATER SUPPLY Middle, Set Of 2 Pieces, With Rear A/C / From: KA000001	$375.42	1
19867D	LR072191	TUBE - AUXILIARY EVAPORATOR	LR072191 TUBE - AUXILIARY EVAPORATOR Rear, Set Of 2 Pieces, With Rear A/C / From: KA000001	$375.42	1

Air Conditioning Condensr/Compressr (Front / Rear) (Premium Air Conditioning-Front/Rear, Less...

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI]

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI] - Air Conditioning Condensr/Compressr (Front / Rear) (Premium Air Conditioning-Front/Rear, Less...

Add to Shopping Cart
