Rear Suspension Arms

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] - Rear Suspension Arms

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FC114206 BOLT $8.10 To Order
Photo Part No Description Price (each) Stock
LR034230 BOLT $9.84 To Order
Photo Part No Description Price (each) Stock
LR128651 BOLT $4.99 To Order
LR128651 BOLT $4.99 To Order
Photo Part No Description Price (each) Stock
LR037704 BOLT $18.23 To Order
Photo Part No Description Price (each) Stock
FC114206 BOLT $8.10 To Order
LR091603 BOLT $7.47 To Order
Photo Part No Description Price (each) Stock
LR072694 BOLT $11.93 IN STOCK
LR072694 BOLT $11.93 IN STOCK
Photo Part No Description Price (each) Stock
FY114056 NUT - HEX. $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR188116 NUT - FLAG TYPE $2.75 To Order
Photo Part No Description Price (each) Stock
FY116056 NUT $1.77 To Order
Photo Part No Description Price (each) Stock
LR161093 NUT $1.75 IN STOCK
Photo Part No Description Price (each) Stock
RYH500530 NUT AND WASHER - HEX. $2.92 To Order
Photo Part No Description Price (each) Stock
RYH500510 NUT - HEX. $3.55 To Order
Photo Part No Description Price (each) Stock
603123518 WASHER - ADJUSTING $5.49 To Order
Photo Part No Description Price (each) Stock
LR081546 HEAT SHIELD - SENSOR $21.35 To Order
LR081545 HEAT SHIELD - SENSOR $19.83 To Order
LR112632 HEAT SHIELD - SENSOR $19.83 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR037690 ARM - REAR SUSPENSION $217.69 To Order
Photo Part No Description Price (each) Stock
LR045789 ARM - REAR SUSPENSION $534.71 To Order
LR045790 ARM - REAR SUSPENSION $534.71 To Order
LR072652 ARM - REAR SUSPENSION $503.56 To Order
...and 12 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR048091 ARM - REAR SUSPENSION $93.78 To Order
LR048090 ARM - REAR SUSPENSION $87.57 To Order
LR118365 Arm - Rear Suspension $183.79 To Order
...and 11 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR037691 LINK - SUSPENSION ARM $9.50 To Order
View All

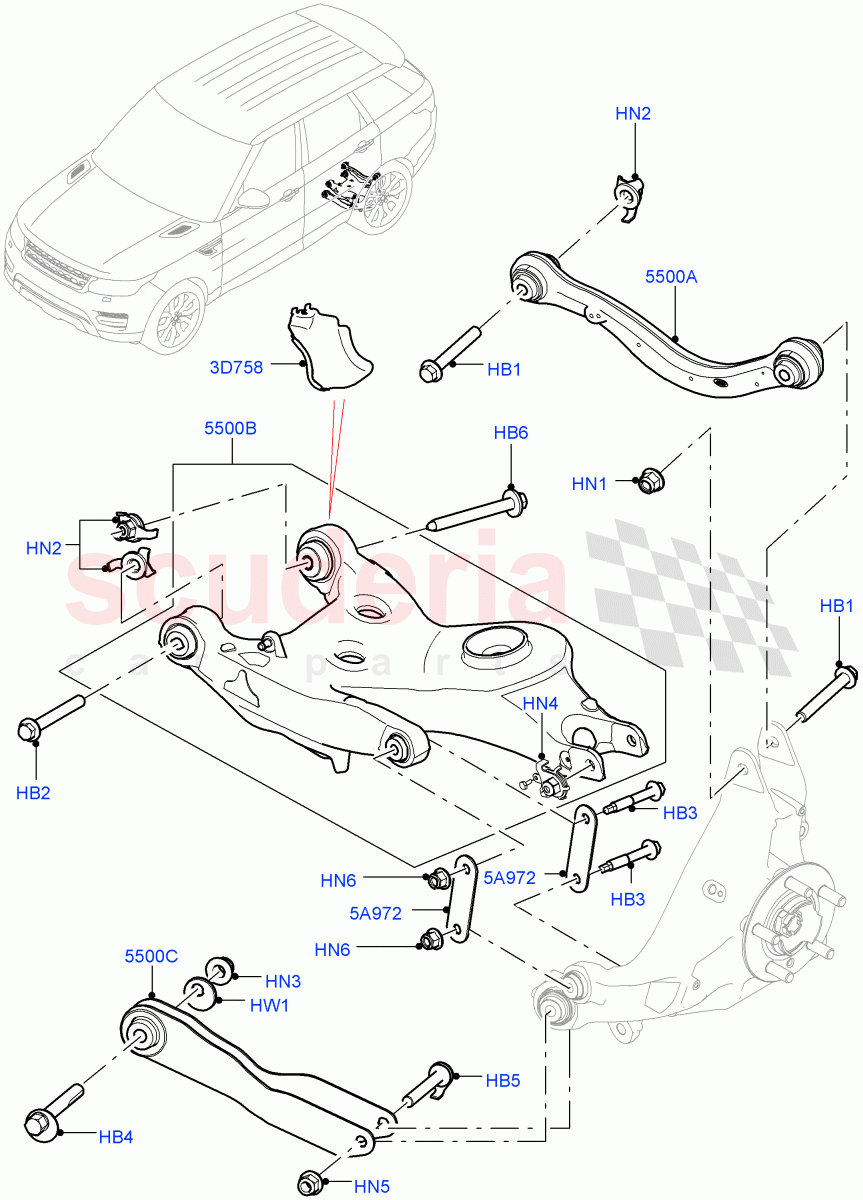

Rear Suspension Arms of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FC114206
BOLT
Hexagonal Head, M14 x 100MM 		$8.10 4
HB2 LR034230
BOLT
Hexagonal Head, M14 x 120 		$9.84 2
HB3 LR128651
BOLT
Hexagonal Head, M12 x 70MM / To: KA871242 		$4.99 4
HB3 LR128651
BOLT
Hexagonal Head, M12 x 70MM / From: KA871243 		$4.99 4
HB4 LR037704
BOLT
Adjusting, Hexagonal Head, M16 X 111 		$18.23 2
HB5 FC114206
BOLT
Flag Type, Hexagonal Head, M14 X 95MM / To: FA999999 		$8.10 2
HB5 LR091603
BOLT
Hexagonal Head, M14 X 95MM / From: GA000001 		$7.47 2
HB6 LR072694
BOLT
Hexagonal Head, M14 X 125 / To: FA537971
IN STOCK 		$11.93 2
HB6 LR072694
BOLT
Hexagonal Head, M14 X 125 / From: FA537972
IN STOCK 		$11.93 2
HN1 FY114056
NUT - HEX.
Hexagonal Head, M14
IN STOCK 		$1.24 2
HN2 LR188116
NUT - FLAG TYPE
Flag Type, M14 		$2.75 6
HN3 FY116056
NUT
Hex Nut Type, M16 		$1.77 2
HN4 LR161093
NUT
Flag Type, M14
IN STOCK 		$1.75 2
HN5 RYH500530
NUT AND WASHER - HEX.
Hexagonal Head, M14 		$2.92 2
HN6 RYH500510
NUT - HEX.
M12, Nut And Washer 		$3.55 4
HW1 603123518
WASHER - ADJUSTING
Adjusting 		$5.49 2
3D758 LR081546
HEAT SHIELD - SENSOR
2.0L I4 DSL HIGH DOHC AJ200 / LH / From: HA000001 / To: JA999999 		$21.35 1
3D758 LR081545
HEAT SHIELD - SENSOR
2.0L I4 DSL HIGH DOHC AJ200 / RH / From: HA000001 / To: JA999999 		$19.83 1
3D758 LR112632
HEAT SHIELD - SENSOR
RH / From: KA000001 		$19.83 1
3D758 LR112633
HEAT SHIELD - SENSOR
LH / From: KA000001 		$21.35 1
5A972 LR037691
LINK - SUSPENSION ARM
Suspension Arm To Knuckle 		$9.50 4
5500A LR037690
ARM - REAR SUSPENSION
RH/LH, Upper 		$217.69 2
5500B LR045789
ARM - REAR SUSPENSION
RH, Lower / To: FA541942 		$534.71 1
5500B LR045790
ARM - REAR SUSPENSION
LH, Lower / To: FA541942 		$534.71 1
5500B LR072652
ARM - REAR SUSPENSION
RH, Lower / From: FA541943 / To: GA999999 		$503.56 1
5500B LR072654
ARM - REAR SUSPENSION
LH, Lower / From: FA541943 / To: GA999999 		$517.51 1
5500B LR072652
ARM - REAR SUSPENSION
With Four Corner Air Suspension / RH, Lower / From: HA000001 / To: HA999999 		$503.56 1
5500B LR081547
ARM - REAR SUSPENSION
With Standard Duty Coil Spring Susp / RH, Lower / From: HA000001 / To: HA999999 		$500.10 1
5500B LR081548
ARM - REAR SUSPENSION
With Standard Duty Coil Spring Susp / LH, Lower / From: HA000001 / To: HA999999 		$534.65 1
5500B LR098766
ARM - REAR SUSPENSION
With Standard Duty Coil Spring Susp / RH, Lower / From: JA000001 		$470.14 1
5500B LR098771
ARM - REAR SUSPENSION
With Performance Suspension / RH, Lower / From: JA000001 / To: LA734055 		$473.34 1
5500B LR098768
ARM - REAR SUSPENSION
With Standard Duty Coil Spring Susp / LH, Lower / From: JA000001 / To: LA716294 		$483.70 1
5500B LR072654
ARM - REAR SUSPENSION
With Four Corner Air Suspension / LH, Lower / From: HA000001 / To: HA999999 		$517.51 1
5500B LR098773
ARM - REAR SUSPENSION
Electronic Air Suspension With ACE / LH, Lower / From: JA000001 / To: LA734055 		$501.36 1
5500B LR139496
ARM - REAR SUSPENSION
With Four Corner Air Suspension / RH, Lower / From: LA734056 		$492.92 1
5500B LR139498
ARM - REAR SUSPENSION
With Four Corner Air Suspension / LH, Lower / From: LA734056 		$529.26 1
5500B LR161617
ARM - REAR SUSPENSION
With Standard Duty Coil Spring Susp / LH, Lower / From: LA716295 		$458.20 1
5500C LR048091
ARM - REAR SUSPENSION
LH, Front, Lower / To: KA425550 		$93.78 1
5500C LR048090
ARM - REAR SUSPENSION
RH, Front, Lower / To: KA425550 		$87.57 1
5500C LR118365
Arm - Rear Suspension
LH, Front, Lower / From: KA425551 / To: KA872169 		$183.79 1
5500C LR128797
ARM - REAR SUSPENSION
LH, Front, Lower / From: KA872170 / To: MA999999 		$88.78 1
5500C LR118364
Arm - Rear Suspension
RH, Front, Lower / From: KA425551 / To: KA872169 		- 1 Enquire
5500C LR128796
ARM - REAR SUSPENSION
RH, Front, Lower / From: KA872170 / To: MA999999 		$93.82 1
5500C LR128796
ARM - REAR SUSPENSION
RH, Front, Lower / From: NA700000 / To: NA799999 		$93.82 1
5500C LR128796
ARM - REAR SUSPENSION
RH, Front, Lower / From: NA200000 / To: NA204202 		$93.82 1
5500C LR128797
ARM - REAR SUSPENSION
LH, Front, Lower / From: NA700000 / To: NA799999 		$88.78 1
5500C LR128797
ARM - REAR SUSPENSION
LH, Front, Lower / From: NA200000 / To: NA204202 		$88.78 1
5500C LR163135
ARM - REAR SUSPENSION
LH, Front, Lower / From: NA204203 / To: NA699999 		$88.32 1
5500C LR163135
ARM - REAR SUSPENSION
LH, Front, Lower / From: PA000001 		$88.32 1
5500C LR163130
ARM - REAR SUSPENSION
RH, Front, Lower / From: NA204203 / To: NA699999 		$88.86 1
5500C LR163130
ARM - REAR SUSPENSION
RH, Front, Lower / From: PA000001 		$88.86 1
