Rear Knuckle And Hub

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] - Rear Knuckle And Hub

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR072694 BOLT $12.00 IN STOCK
LR072694 BOLT $12.00 IN STOCK
Photo Part No Description Price (each) Stock
LR038382 CIRCLIP $5.75 IN STOCK
Photo Part No Description Price (each) Stock
LR024151 NUT AND WASHER - HEX. $10.18 IN STOCK
Photo Part No Description Price (each) Stock
LR161093 NUT $1.76 IN STOCK
Photo Part No Description Price (each) Stock
LR038379 HUB - WHEEL $216.91 To Order
LR081538 HUB - WHEEL $219.76 To Order
Photo Part No Description Price (each) Stock
LR122585 BEARING - WHEEL HUB $119.86 IN STOCK
LR072488 BEARING - WHEEL HUB $139.87 To Order
LR077894 BEARING - WHEEL HUB $147.56 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR098781 KNUCKLE - REAR WHEEL $844.50 To Order
LR098783 KNUCKLE - REAR WHEEL $844.50 To Order
LR098782 KNUCKLE - REAR WHEEL $844.50 To Order
...and 23 more part variants. See table on right for more details.
View All

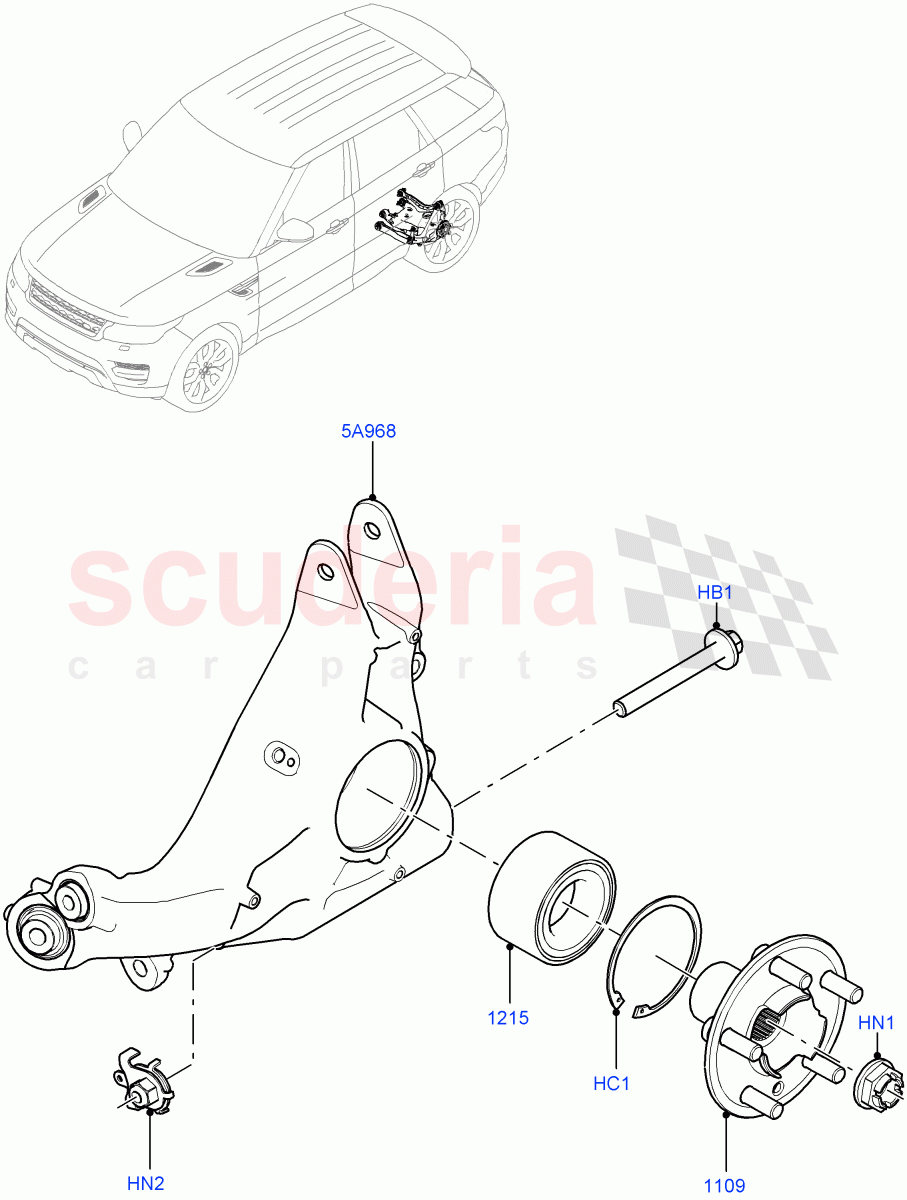

Rear Knuckle And Hub of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR072694
BOLT
Hexagonal Head, M14 X 125 / To: FA537971
IN STOCK 		$12.00 2
HB1 LR072694
BOLT
Hexagonal Head, M14 X 125 / From: FA537972
IN STOCK 		$12.00 2
HC1 LR038382
CIRCLIP
95MM, Retaining Ring
IN STOCK 		$5.75 2
HN1 LR024151
NUT AND WASHER - HEX.
M24X2.0, RH/LH
IN STOCK 		$10.18 2
HN2 LR161093
NUT
Flag Type, M14
IN STOCK 		$1.76 2
5A968 LR098781
KNUCKLE - REAR WHEEL
With Standard Duty Coil Spring Susp / RH / From: JA000001 / To: KA999999 		$844.50 1
5A968 LR098783
KNUCKLE - REAR WHEEL
Electronic Air Suspension With ACE / RH / From: JA000001 / To: KA999999 		$844.50 1
5A968 LR098782
KNUCKLE - REAR WHEEL
With Standard Duty Coil Spring Susp / LH / From: JA000001 / To: KA999999 		$844.50 1
5A968 LR098784
KNUCKLE - REAR WHEEL
With Four Corner Air Suspension / LH / From: JA000001 / To: KA999999 		$844.50 1
5A968 LR098781
KNUCKLE - REAR WHEEL
With Standard Duty Coil Spring Susp / RH / From: LA800000 / To: LA899999 		$844.50 1
5A968 LR098781
KNUCKLE - REAR WHEEL
With Standard Duty Coil Spring Susp / RH / From: LA700000 / To: LA739357 		$844.50 1
5A968 LR098783
KNUCKLE - REAR WHEEL
With Four Corner Air Suspension / RH / From: LA700000 / To: LA739357 		$844.50 1
5A968 LR098783
KNUCKLE - REAR WHEEL
Sport Suspension w/ARC / RH / From: LA800000 / To: LA899999 		$844.50 1
5A968 LR098782
KNUCKLE - REAR WHEEL
With Standard Duty Coil Spring Susp / LH / From: LA700000 / To: LA739357 		$844.50 1
5A968 LR098782
KNUCKLE - REAR WHEEL
With Standard Duty Coil Spring Susp / LH / From: LA800000 / To: LA899999 		$844.50 1
5A968 LR098784
KNUCKLE - REAR WHEEL
With Performance Suspension / LH / From: LA700000 / To: LA739357 		$844.50 1
5A968 LR098784
KNUCKLE - REAR WHEEL
With Performance Suspension / LH / From: LA800000 / To: LA899999 		$844.50 1
5A968 LR043593
KNUCKLE - REAR WHEEL
RH / To: GA999999 		$858.23 1
5A968 LR043594
KNUCKLE - REAR WHEEL
LH / To: GA999999 		$858.23 1
5A968 LR094539
KNUCKLE - REAR WHEEL
With Standard Duty Coil Spring Susp / RH / From: HA000001 / To: HA999999 		$821.71 1
5A968 LR094541
KNUCKLE - REAR WHEEL
With Standard Duty Coil Spring Susp / LH / From: HA000001 / To: HA999999 		$821.71 1
5A968 LR094540
KNUCKLE - REAR WHEEL
With Four Corner Air Suspension / RH / From: HA000001 / To: HA999999 		$821.71 1
5A968 LR094542
KNUCKLE - REAR WHEEL
With Four Corner Air Suspension / LH / From: HA000001 / To: HA999999 		$821.71 1
5A968 LR142578
KNUCKLE - REAR WHEEL
With Standard Duty Coil Spring Susp / RH / From: LA739358 / To: LA799999 		$804.32 1
5A968 LR142578
KNUCKLE - REAR WHEEL
With Standard Duty Coil Spring Susp / RH / From: MA000001 		$804.32 1
5A968 LR142579
KNUCKLE - REAR WHEEL
With Standard Duty Coil Spring Susp / LH / From: LA739358 / To: LA799999 		$804.32 1
5A968 LR142579
KNUCKLE - REAR WHEEL
With Standard Duty Coil Spring Susp / LH / From: MA000001 		$804.32 1
5A968 LR142583
KNUCKLE - REAR WHEEL
With Four Corner Air Suspension / RH / From: LA739358 / To: LA799999 		$804.32 1
5A968 LR142583
KNUCKLE - REAR WHEEL
With Performance Suspension / RH / From: MA000001 		$804.32 1
5A968 LR142581
KNUCKLE - REAR WHEEL
Sport Suspension w/ARC / LH / From: LA739358 / To: LA799999 		$804.32 1
5A968 LR142581
KNUCKLE - REAR WHEEL
With Four Corner Air Suspension / LH / From: MA000001 		$804.32 1
1109 LR038379
HUB - WHEEL
RH/LH / To: GA111836 		$216.91 2
1109 LR081538
HUB - WHEEL
RH/LH / From: GA111837 		$219.76 2
1215 LR122585
BEARING - WHEEL HUB
RH/LH / To: FA519479
IN STOCK 		$119.86 2
1215 LR072488
BEARING - WHEEL HUB
RH/LH / From: FA519480 / To: GA580578 		$139.87 2
1215 LR077894
BEARING - WHEEL HUB
RH/LH / From: GA580579 / To: LA714351 		$147.56 2
1215 LR133541
BEARING - WHEEL HUB
RH/LH / From: LA714352 		$143.37 2
