Electronic Damper Control

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] - Electronic Damper Control

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
XYG500160 BOLT $0.95 IN STOCK
Photo Part No Description Price (each) Stock
RYH500420 NUT AND WASHER - HEX. $1.06 IN STOCK
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.48 IN STOCK
Photo Part No Description Price (each) Stock
LR002307 SCREW AND WASHER $1.06 To Order
Photo Part No Description Price (each) Stock
LR012896 SENSOR - ACCELERATION $245.15 To Order
LR084257 SENSOR - ACCELERATION $245.15 To Order
Photo Part No Description Price (each) Stock
LR044865 BRACKET - CONTROL MODULE $10.32 To Order
Photo Part No Description Price (each) Stock
LR042101 MODULE - AIR SUSPENSION CONTROL $1,018.54 To Order
LR033251 MODULE - ECU $984.09 To Order
LR061457 MODULE - SUSPENSION CONTROL $1,049.33 To Order
...and 7 more part variants. See table on right for more details.
View All

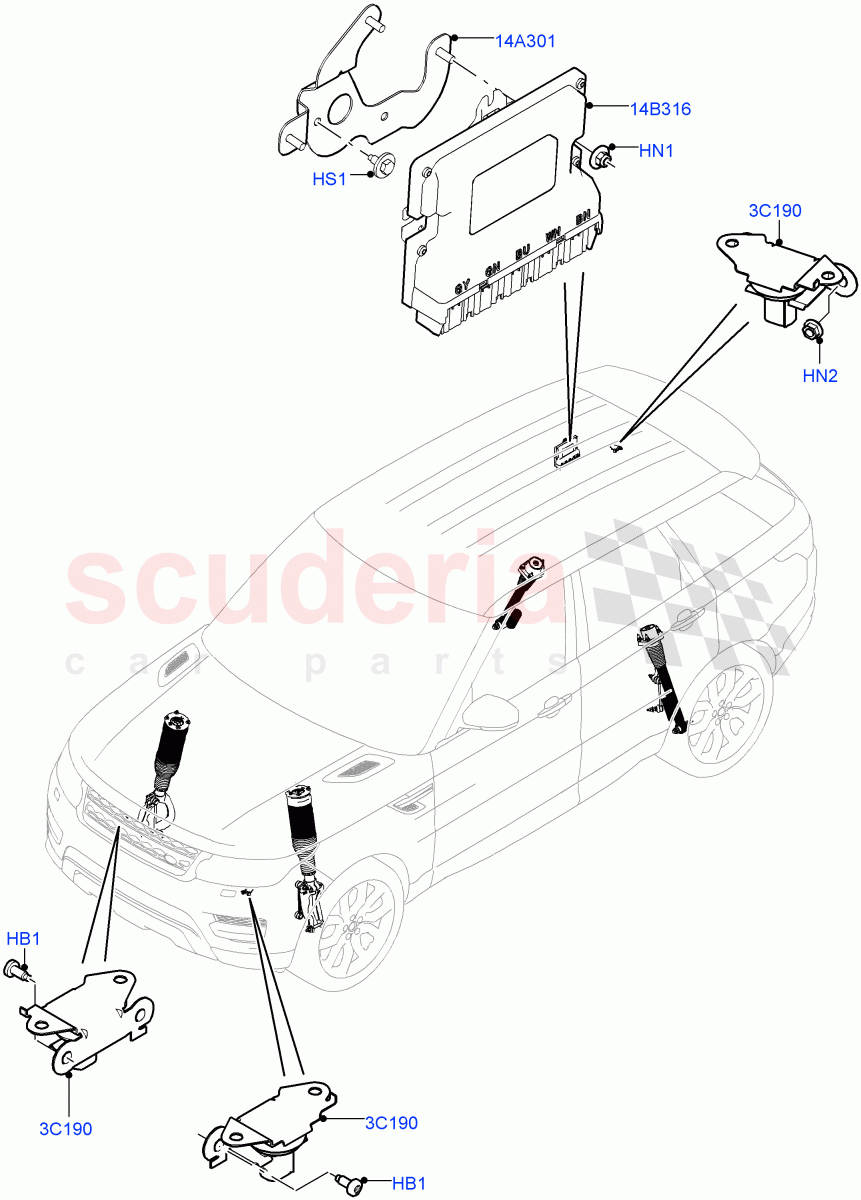

Electronic Damper Control of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 XYG500160
BOLT
M6 x 12MM, Torx
IN STOCK 		$0.95 4
HN1 RYH500420
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer
IN STOCK 		$1.06 3
HN2 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.48 2
HS1 LR002307
SCREW AND WASHER
Hexagonal Head, M6 X 13.5MM 		$1.06 2
3C190 LR012896
SENSOR - ACCELERATION
To: GA566161 		$245.15 3
3C190 LR084257
SENSOR - ACCELERATION
From: GA566161 		$245.15 3
14A301 LR044865
BRACKET - CONTROL MODULE
Control Module 		$10.32 1
14B316 LR042101
MODULE - AIR SUSPENSION CONTROL
Less Adaptive Damping / Air Suspension Module / To: EA352302 		$1,018.54 1
14B316 LR033251
MODULE - ECU
With Continuous Variable Damping / Air Suspension Module / To: EA350261 		$984.09 1
14B316 LR061457
MODULE - SUSPENSION CONTROL
With Continuous Variable Damping / Air Suspension Module / From: EA350262 / To: GA999999 		$1,049.33 1
14B316 LR061877
MODULE - AIR SUSPENSION CONTROL
Less Adaptive Damping / Air Suspension Module / From: EA352303 / To: GA999999 		$531.33 1
14B316 LR105419
MODULE - AIR SUSPENSION CONTROL
With Continuous Variable Damping / Air Suspension Module / From: HA000001 / To: HA999999 		$796.48 1
14B316 LR105420
MODULE - AIR SUSPENSION CONTROL
Less Adaptive Damping / Air Suspension Module / From: HA000001 / To: HA179621 		$686.86 1
14B316 LR111477
MODULE - AIR SUSPENSION CONTROL
Less Adaptive Damping / Air Suspension Module / From: HA179622 / To: JA999999 		$855.89 1
14B316 LR111479
MODULE - AIR SUSPENSION CONTROL
With Continuous Variable Damping / Air Suspension Module / From: JA000001 		$405.80 1
14B316 LR111479
MODULE - AIR SUSPENSION CONTROL
3.0L AJ20P6 Petrol High, Less Adaptive Damping / Air Suspension Module / From: KA000001 		$405.80 1
14B316 LR111477
MODULE - AIR SUSPENSION CONTROL
3.0L AJ20D6 Diesel High, Less Adaptive Damping / Air Suspension Module / From: KA000001 		$855.89 1
