Name: Active Anti-Roll Bar System (ARC Pipes, Front) (Electronic Air Suspension With ACE, Sport Suspension w/ARC) ((V) FROMKA000001)
Rating: 5.0 (1 reviews)

Active Anti-Roll Bar System (ARC Pipes, Front) (Electronic Air Suspension With ACE, Sport Suspension w/ARC) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] - Active Anti-Roll Bar System (ARC Pipes, Front) (Electronic Air Suspension With ACE, Sport...

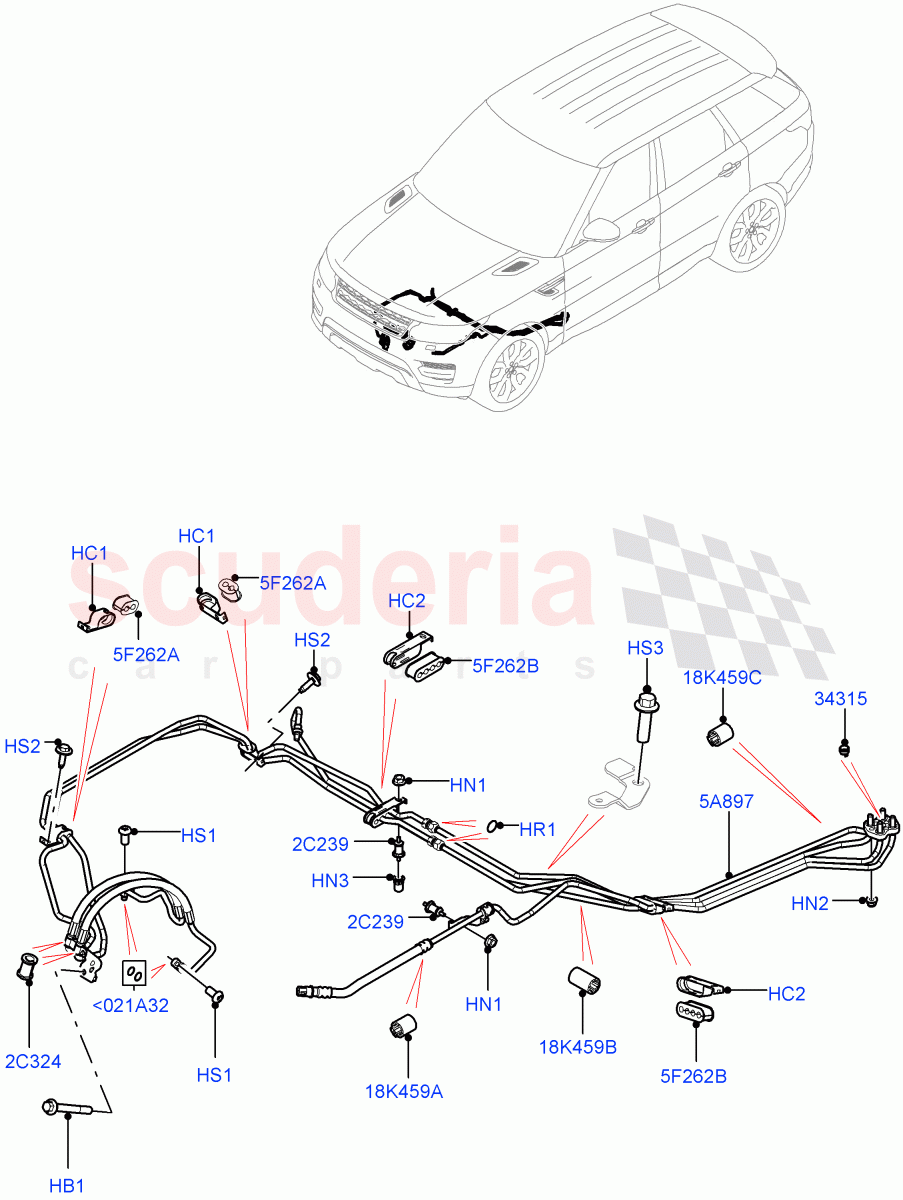

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FB108146	BOLT	$3.66	To Order

Photo	Part No	Description	Price (each)	Stock
	ANR6702	CLIP	$49.17	To Order

Photo	Part No	Description	Price (each)	Stock
	ANR6701	CLIP	$8.90	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FY108046	NUT M8 FLANGED HEX HEAD	$1.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR068826	NUT	$0.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR052806	O-RING	$20.52	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500060	SCREW	$0.77	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500200	SCREW	$0.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038560	SCREW	$3.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038632	INSULATOR - ARB PIPE	$27.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052708	BUSH - SUSPENSION - ARC TUBES	$2.89	To Order

Photo	Part No	Description	Price (each)	Stock
	RQR500010	COLLET - ARB PIPE	$11.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR098964	TUBE - ACTIVE ROLL BAR SYSTEM	$484.29	To Order
	LR139278	TUBE - ACTIVE ROLL BAR SYSTEM	$600.49	To Order

Photo	Part No	Description	Price (each)	Stock
	ANR6704	MOUNTING - RUBBER	$2.80	To Order

Photo	Part No	Description	Price (each)	Stock
	ANR6703	MOUNTING - RUBBER	$7.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085487	KIT - SEAL	$10.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR052712	SLEEVE - PROTECTIVE	$4.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052713	SLEEVE - PROTECTIVE	$12.18	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR077646	SLEEVE - PROTECTIVE	$2.54	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<021A32	LR085487	KIT - SEAL IN STOCK	LR085487 KIT - SEAL Includes Backup Ring / From: KA000001 IN STOCK	$10.36	2
HB1	FB108146	BOLT	FB108146 BOLT Hexagonal Head, M8 x 70MM / From: KA000001	$3.66	1
HC1	ANR6702	CLIP	ANR6702 CLIP Double / From: KA000001	$49.17	2
HC2	ANR6701	CLIP	ANR6701 CLIP 4 Way / From: KA000001	$8.90	2
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: KA000001 IN STOCK	$1.48	3
HN2	FY108046	NUT M8 FLANGED HEX HEAD IN STOCK	FY108046 NUT M8 FLANGED HEX HEAD HEX Flange, M8 / From: KA000001 IN STOCK	$1.16	2
HN3	LR068826	NUT IN STOCK	LR068826 NUT M6 x 15MM, Rivet / From: KA000001 IN STOCK	$0.66	1
HR1	LR052806	O-RING	LR052806 O-RING ARC Pipes / From: KA000001	$20.52	2
HS1	RYP500060	SCREW	RYP500060 SCREW M8 X 16MM, Torx / From: KA000001	$0.77	2
HS2	RYP500200	SCREW	RYP500200 SCREW Hexagonal Head, M6 X 20MM / From: KA000001	$0.97	2
HS3	LR038560	SCREW	LR038560 SCREW Hexagonal Head, M12 x 40MM / From: KA000001	$3.24	1
2C239	LR038632	INSULATOR - ARB PIPE	LR038632 INSULATOR - ARB PIPE Sport Suspension w/ARC / From: KA000001	$27.56	2
2C324	LR052708	BUSH - SUSPENSION - ARC TUBES	LR052708 BUSH - SUSPENSION - ARC TUBES Single / From: KA000001	$2.89	2
5A897	LR098964	TUBE - ACTIVE ROLL BAR SYSTEM	LR098964 TUBE - ACTIVE ROLL BAR SYSTEM From: KA000001 / To: LA999999	$484.29	1
5A897	LR139278	TUBE - ACTIVE ROLL BAR SYSTEM	LR139278 TUBE - ACTIVE ROLL BAR SYSTEM From: MA000001	$600.49	1
5F262A	ANR6704	MOUNTING - RUBBER	ANR6704 MOUNTING - RUBBER Double / From: KA000001	$2.80	2
5F262B	ANR6703	MOUNTING - RUBBER	ANR6703 MOUNTING - RUBBER 4 Way / From: KA000001	$7.92	2
18K459A	LR052712	SLEEVE - PROTECTIVE	LR052712 SLEEVE - PROTECTIVE	$4.72	1
18K459B	LR052713	SLEEVE - PROTECTIVE IN STOCK	LR052713 SLEEVE - PROTECTIVE IN STOCK	$12.18	1
18K459C	LR077646	SLEEVE - PROTECTIVE	LR077646 SLEEVE - PROTECTIVE Protective / From: KA000001	$2.54	1
34315	RQR500010	COLLET - ARB PIPE IN STOCK	RQR500010 COLLET - ARB PIPE From: KA000001 IN STOCK	$11.02	4

Active Anti-Roll Bar System (Arc Pipes, Front) (Electronic Air Suspension With Ace, Sport...
