Fuel Tank & Related Parts (2.0L I4 Dsl High Dohc Aj200) ((V) Fromha000001)

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] - Fuel Tank & Related Parts (2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR034249 BOLT AND WASHER - HEX.HEAD $2.89 IN STOCK
Photo Part No Description Price (each) Stock
LR093365 CLIP $2.05 To Order
Photo Part No Description Price (each) Stock
LR094032 CLIP - HOSE $4.41 To Order
Photo Part No Description Price (each) Stock
LR044902 CLIP - HOSE $2.49 To Order
Photo Part No Description Price (each) Stock
LR011519 CLIP $2.07 IN STOCK
Photo Part No Description Price (each) Stock
LR061655 CLAMP - FUEL SUPPLY TUBE $6.12 To Order
Photo Part No Description Price (each) Stock
FN106042 NUT $1.03 IN STOCK
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
LR094016 STUD $1.69 To Order
Photo Part No Description Price (each) Stock
LR088561 TANK - FUEL $1,365.75 To Order
LR086525 TANK - FUEL $1,365.75 To Order
LR116066 TANK - FUEL $1,365.75 To Order
Photo Part No Description Price (each) Stock
LR053666 CAP - FUEL TANK FILLER $28.01 To Order
LR112190 CAP - FUEL TANK FILLER $35.18 To Order
LR138861 CAP - FUEL TANK FILLER $39.30 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR079275 PIPE - FUEL FILLER $382.87 To Order
LR116345 PIPE - FUEL FILLER $362.68 To Order
LR051673 PIPE - FUEL FILLER $228.27 To Order
Photo Part No Description Price (each) Stock
LR051676 HOSE - FILLER PIPE $225.06 To Order
Photo Part No Description Price (each) Stock
LR053462 TUBE - FUEL VAPOUR $70.86 To Order
Photo Part No Description Price (each) Stock
LR122714 SHIELD $497.90 To Order
LR122714 SHIELD $497.90 To Order
LR140295 SHIELD $497.90 To Order
Photo Part No Description Price (each) Stock
LR073691 FUNNEL - FUEL FILLER $6.28 To Order
Photo Part No Description Price (each) Stock
LR086521 TUBE - FUEL $127.86 To Order
Photo Part No Description Price (each) Stock
LR086520 TUBE - FUEL $111.57 To Order
View All

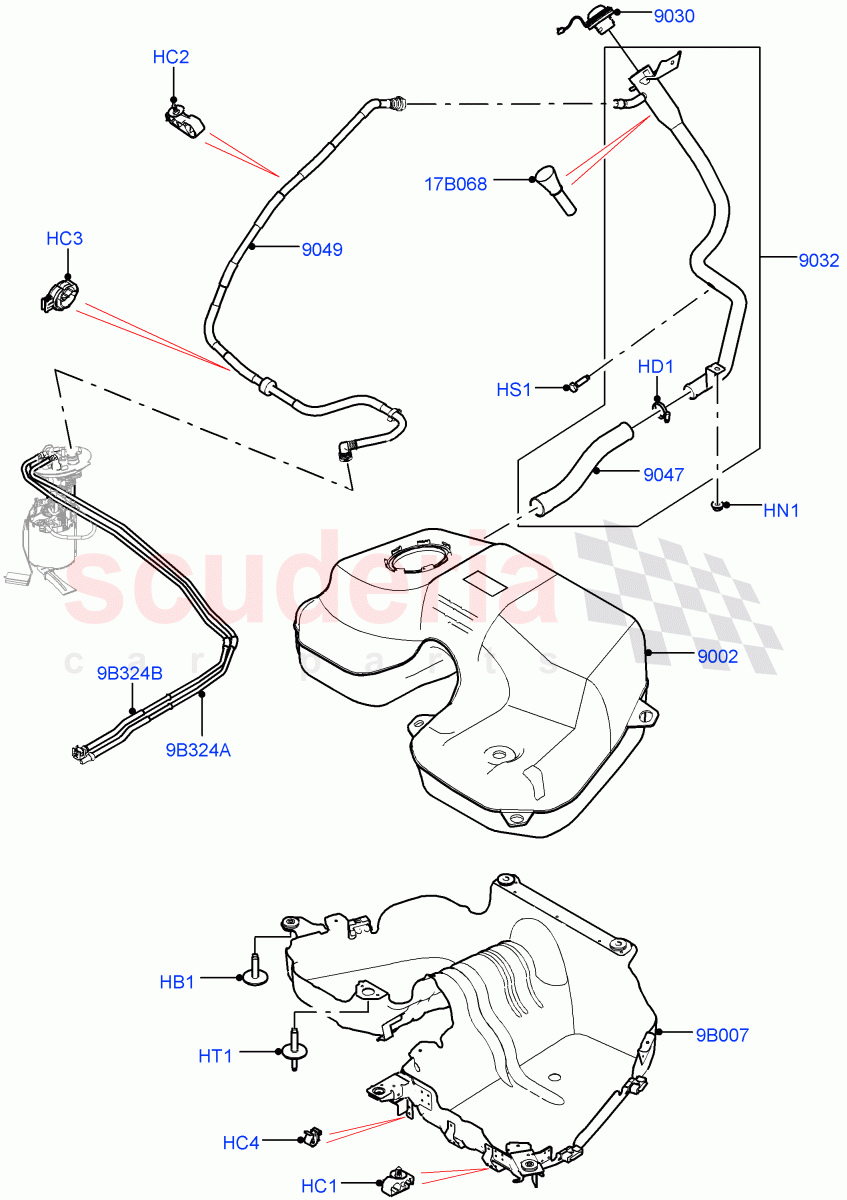

Fuel Tank & Related Parts (2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR034249
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M10 x 37MM / From: HA000001
IN STOCK 		$2.89 3
HC1 LR093365
CLIP
With Diesel Exh Fluid Emission Tank / From: HA000001 		$2.05 2
HC2 LR094032
CLIP - HOSE
Breather Pipe, Plastic / From: HA000001 		$4.41 2
HC3 LR044902
CLIP - HOSE
10-25 X 1.5-3, Plastic / From: HA000001 		$2.49 1
HC4 LR011519
CLIP
9.5 X 6 X 2 / From: HA000001
IN STOCK 		$2.07 3
HD1 LR061655
CLAMP - FUEL SUPPLY TUBE
35-50 x 9 / From: HA000001 		$6.12 1
HN1 FN106042
NUT
Hexagonal Head, M6 / From: HA000001
IN STOCK 		$1.03 2
HS1 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM / From: HA000001
IN STOCK 		$0.96 1
HT1 LR094016
STUD
Hexagonal Head, M10 X 41 + M8 X 22 / From: HA000001 		$1.69 2
9B007 LR122714
SHIELD
From: HA000001 / To: LA718591 		$497.90 1
9B007 LR122714
SHIELD
From: LA718592 / To: LA722981 		$497.90 1
9B007 LR140295
SHIELD
From: LA722982 		$497.90 1
9B324A LR086521
TUBE - FUEL
Feed / From: HA000001 		$127.86 1
9B324B LR086520
TUBE - FUEL
Return / From: HA000001 		$111.57 1
17B068 LR073691
FUNNEL - FUEL FILLER
Fuel Tank Filler Neck With Inhibit / From: HA000001 		$6.28 1
9002 LR088561
TANK - FUEL
From: HA000001 / To: HA138065 		$1,365.75 1
9002 LR086525
TANK - FUEL
From: HA138066 / To: JA192716 		$1,365.75 1
9002 LR116066
TANK - FUEL
From: JA192717 		$1,365.75 1
9030 LR053666
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - All Nozzles / From: HA000001 / To: MA757797 		$28.01 1
9030 LR112190
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Japan / From: KA000001 / To: LA747220 		$35.18 1
9030 LR138861
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Diesel / From: MA757798 		$39.30 1
9030 LR138719
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Japan / From: LA747221 		$39.30 1
9032 LR079275
PIPE - FUEL FILLER
Fuel Tank Filler Neck With Inhibit / From: HA000001 / To: JA409316 		$382.87 1
9032 LR116345
PIPE - FUEL FILLER
Fuel Tank Filler Neck With Inhibit / From: JA409317 		$362.68 1
9032 LR051673
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Japan / From: HA000001 		$228.27 1
9047 LR051676
HOSE - FILLER PIPE
From: HA000001 		$225.06 1
9049 LR053462
TUBE - FUEL VAPOUR
From: HA000001 		$70.86 1
