Fuel Cooler Assembly (Solihull Plant Build) (2.0L I4 Dsl High Dohc Aj200, 2.0L I4 Dsl Mid Dohc...

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] - Fuel Cooler Assembly (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR034354 BOLT - PAN - TORX $1.06 To Order
Photo Part No Description Price (each) Stock
LR081678 HOSE - FUEL COOLER $56.15 To Order
Photo Part No Description Price (each) Stock
LR081680 HOSE - FUEL COOLER $70.90 To Order
Photo Part No Description Price (each) Stock
LR042509 BRACKET - FUEL COOLER $20.64 To Order
Photo Part No Description Price (each) Stock
LR038811 COOLER - FUEL $213.44 To Order
View All

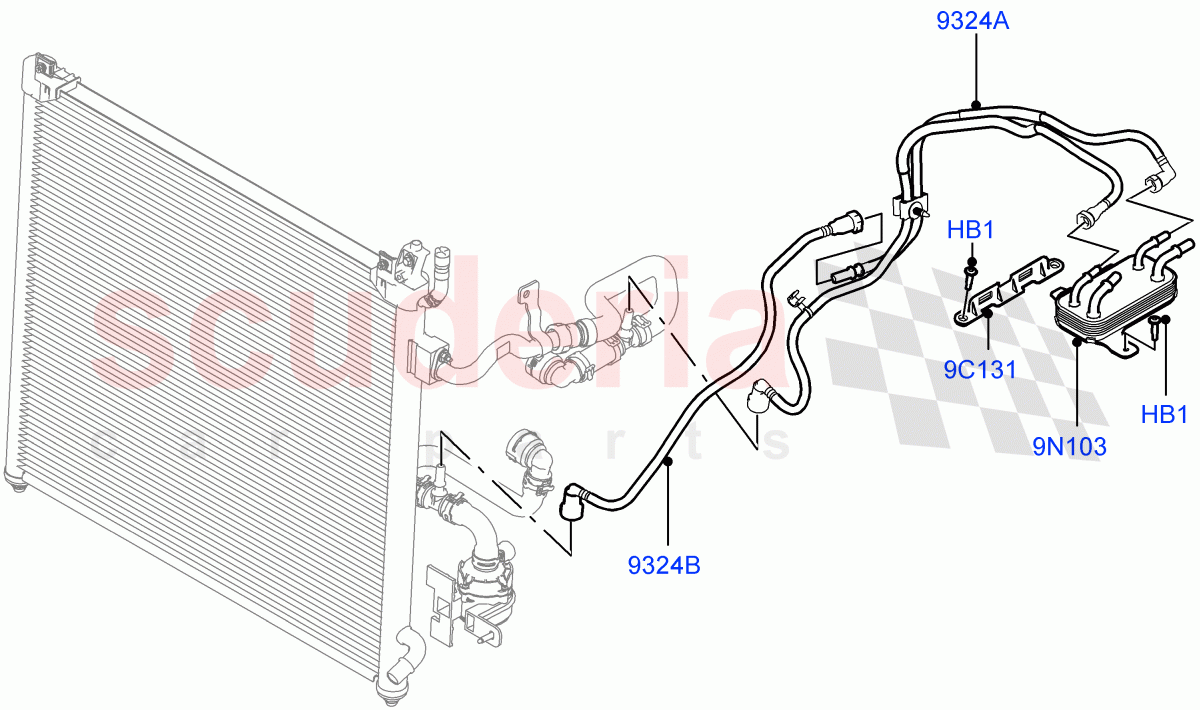

Fuel Cooler Assembly (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC AJ200) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR034354
BOLT - PAN - TORX
M6 x 19MM, Torx / From: HA000001 		$1.06 3
9C131 LR042509
BRACKET - FUEL COOLER
For Fuel Cooler / From: HA000001 		$20.64 1
9N103 LR038811
COOLER - FUEL
Main / From: HA000001 		$213.44 1
9324A LR081678
HOSE - FUEL COOLER
Fuel Cooler Inlet, Outlet, Set Of 2 Pieces / From: HA000001 		$56.15 1
9324B LR081680
HOSE - FUEL COOLER
From: HA000001 		$70.90 1
