Find Your Part

View All

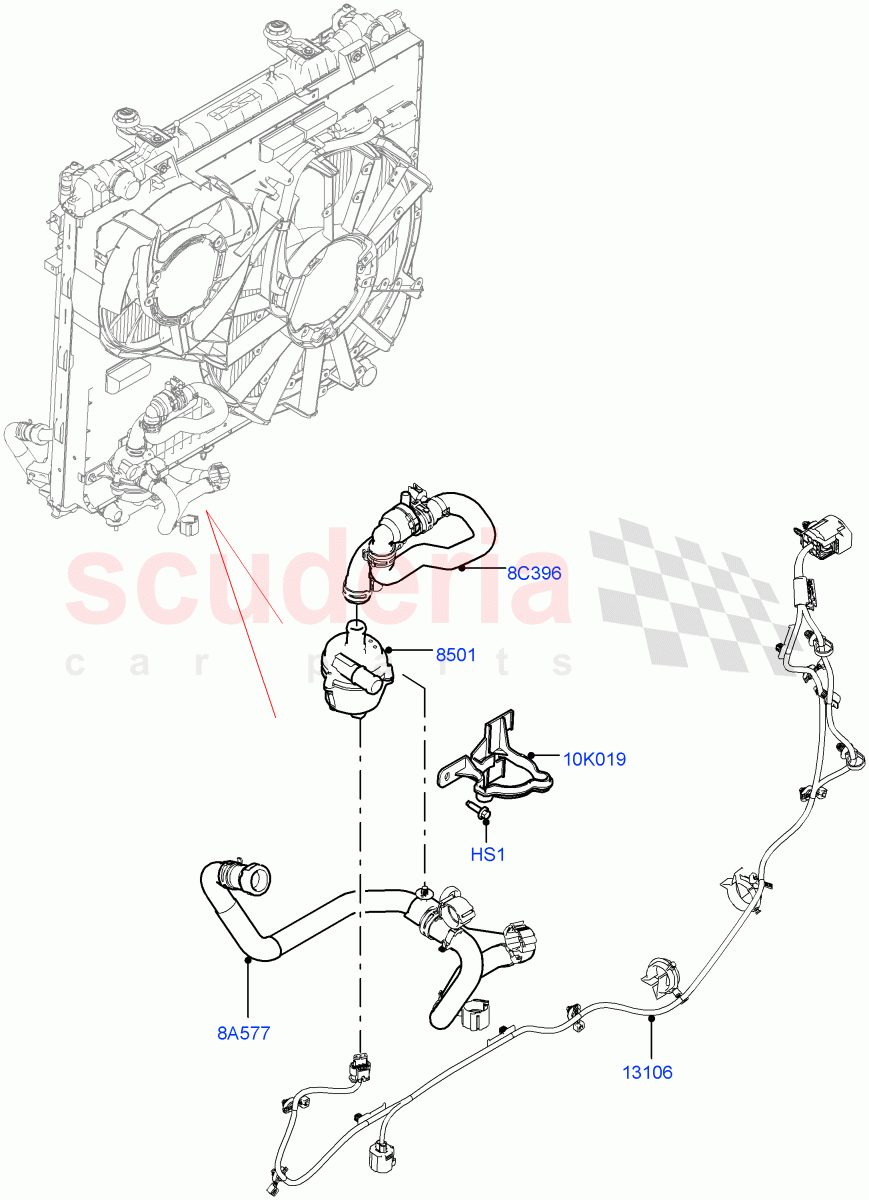

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	$3.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR095160	PUMP - WATER	$284.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082263	HOSE - WATER	$105.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082257	HOSE - WATER	$72.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082251	CLAMP - WATER PUMP MOUNTING	$8.32	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	RYG500220	SCREW IN STOCK	RYG500220 SCREW Hexagonal Head, M6 X 20MM / From: HA000001 IN STOCK	$3.46	1
8A577	LR082263	HOSE - WATER	LR082263 HOSE - WATER Outlet / From: HA000001	$105.66	1
8C396	LR082257	HOSE - WATER	LR082257 HOSE - WATER Inlet / From: HA000001	$72.69	1
10K019	LR082251	CLAMP - WATER PUMP MOUNTING	LR082251 CLAMP - WATER PUMP MOUNTING From: HA000001	$8.32	1
8501	LR095160	PUMP - WATER	LR095160 PUMP - WATER Electric / From: HA000001	$284.65	1
13106	LR086648	WIRING - WATER PUMP	LR086648 WIRING - WATER PUMP From: HA000001 / To: HA999999	$72.88	1
13106	LR102674	WIRING - WATER PUMP	LR102674 WIRING - WATER PUMP From: JA000001	$76.55	1
