Thermostat/Housing & Related Parts (Solihull Plant Build) (2.0L I4 Dsl High Dohc Aj200, 2.0L I4 Dsl...

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] - Thermostat/Housing & Related Parts (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR082795 BOLT - HEX.HEAD $3.33 To Order
Photo Part No Description Price (each) Stock
LR097266 O-RING $13.93 To Order
Photo Part No Description Price (each) Stock
LR073648 SCREW $2.66 IN STOCK
Photo Part No Description Price (each) Stock
LR073736 SCREW $1.70 To Order
Photo Part No Description Price (each) Stock
LR018267 SCREW $1.20 To Order
Photo Part No Description Price (each) Stock
LR105592 SEAL - THERMOSTAT $8.65 To Order
Photo Part No Description Price (each) Stock
LR081665 TUBE - BY-PASS $36.81 IN STOCK
Photo Part No Description Price (each) Stock
LR081683 THERMOSTAT AND HOUSING $128.85 To Order
LR105974 THERMOSTAT $141.84 IN STOCK
Photo Part No Description Price (each) Stock
LR085514 CONNECTION - WATER OUTLET $29.34 To Order
Photo Part No Description Price (each) Stock
LR105595 SENSOR - ENGINE COOLANT TEMPERATURE $36.20 To Order
Photo Part No Description Price (each) Stock
LR105610 RETAINER - SENSOR CLIP $4.70 To Order
Photo Part No Description Price (each) Stock
LR081684 TUBE - BY-PASS $134.73 To Order
Photo Part No Description Price (each) Stock
LR081670 HOSE - WATER BY-PASS $58.27 To Order
View All

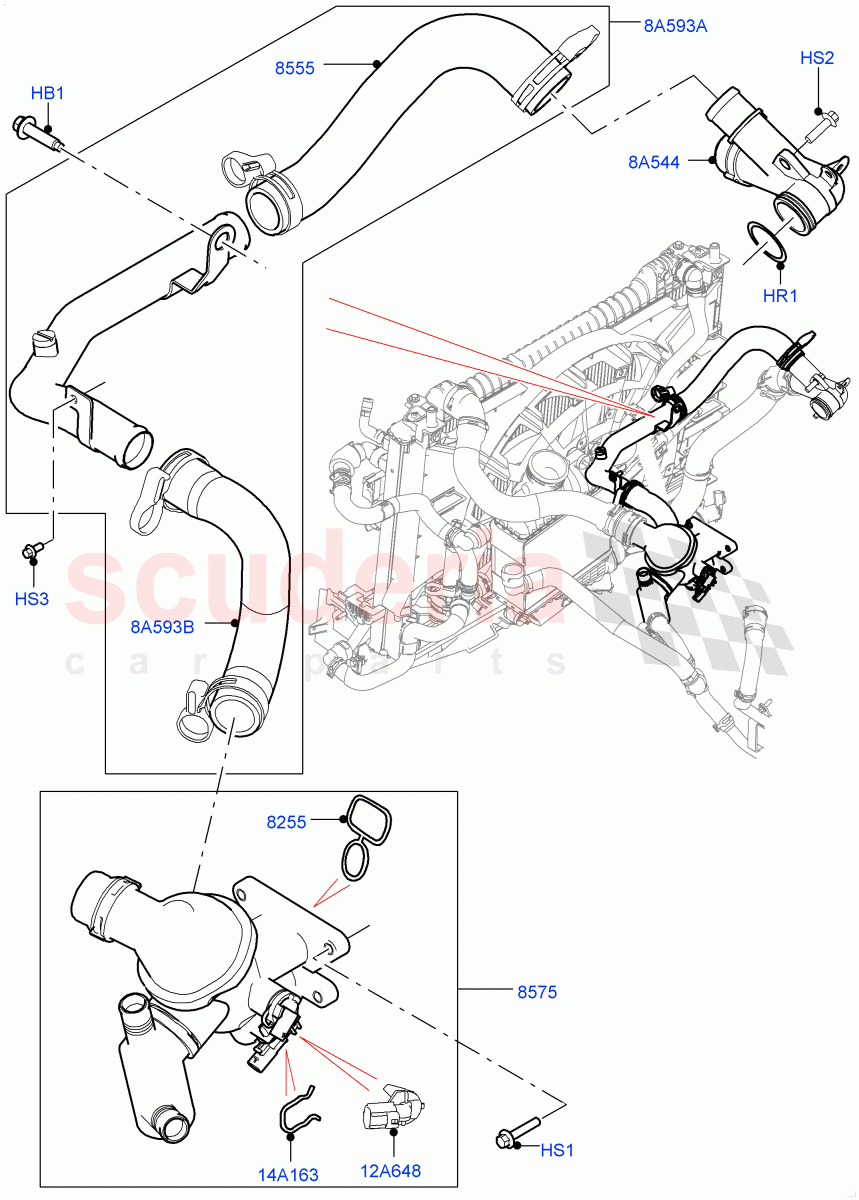

Thermostat/Housing & Related Parts (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC AJ200) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR082795
BOLT - HEX.HEAD
Hexagonal Head, M12 X 35MM / From: JA000001 		$3.33 1
HR1 LR097266
O-RING
From: HA000001 		$13.93 1
HS1 LR073648
SCREW
Hexagonal Head, M6 x 30MM, Thermostat Housing / From: HA000001
IN STOCK 		$2.66 4
HS2 LR073736
SCREW
M8 X 30MM / From: HA000001 		$1.70 2
HS3 LR018267
SCREW
M6 X 20MM, Torx / From: HA000001 		$1.20 1
8A544 LR085514
CONNECTION - WATER OUTLET
EGR Cooler / From: HA000001 		$29.34 1
8A593A LR081684
TUBE - BY-PASS
From: HA000001 		$134.73 1
8A593B LR081670
HOSE - WATER BY-PASS
From: HA000001 		$58.27 1
12A648 LR105595
SENSOR - ENGINE COOLANT TEMPERATURE
From: HA000001 		$36.20 1
14A163 LR105610
RETAINER - SENSOR CLIP
From: HA000001 		$4.70 1
8255 LR105592
SEAL - THERMOSTAT
Thermostat And Housing Assy / From: HA000001 		$8.65 1
8555 LR081665
TUBE - BY-PASS
Tube Water By-Pass / From: HA000001
IN STOCK 		$36.81 1
8575 LR081683
THERMOSTAT AND HOUSING
Thermostat And Housing With Sensor / From: HA000001 / To: HA161217 		$128.85 1
8575 LR105974
THERMOSTAT
Thermostat And Housing With Sensor / From: HA161218
IN STOCK 		$141.84 1
