Front Brake Discs And Calipers (Aj Petrol 4.4 V8 Efi (220Kw), With 17" Front Vented & Rear Vented,...

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] - Front Brake Discs And Calipers (AJ Petrol 4.4 V8 EFI (220KW), With 17" Front Vented & Rear Vented,...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
SYG000012 BOLT $8.08 To Order
SYG500050 BOLT $8.57 IN STOCK
Photo Part No Description Price (each) Stock
SYP100241 SCREW $3.11 IN STOCK
Photo Part No Description Price (each) Stock
SYP500020 SCREW $2.06 IN STOCK
Photo Part No Description Price (each) Stock
SMV500010 SCREW $2.75 IN STOCK
Photo Part No Description Price (each) Stock
SDB000603 ROTOR $84.07 To Order
SDB000613 ROTOR $92.94 To Order
SDB000604 DISC - BRAKE - VENTED $84.07 IN STOCK
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR015523 SCREW - BLEED $6.75 IN STOCK
Photo Part No Description Price (each) Stock
LR019618 BRAKE PADS - LESS SPRINGS $79.68 To Order
Photo Part No Description Price (each) Stock
SEE500020 KIT - CALIPER BRAKE PAD MTG PARTS $31.81 To Order
Photo Part No Description Price (each) Stock
STC1918 PISTON $39.25 To Order
Photo Part No Description Price (each) Stock
SEE500010 KIT - CALIPER REPAIR $30.17 To Order
Photo Part No Description Price (each) Stock
SEG500040 CALIPER ASSY - BRAKE - LESS PADS $471.91 To Order
SEG500050 CALIPER ASSY - BRAKE - LESS PADS $481.37 To Order
Photo Part No Description Price (each) Stock
LR019625 SPRING - BRAKE CALIPER $6.77 To Order
Photo Part No Description Price (each) Stock
SEC000172 SHIELD - SPLASH $71.84 To Order
SEC000162 SHIELD - SPLASH $71.84 To Order
Photo Part No Description Price (each) Stock
SEE500100 CAP - BLEED SCREW $1.94 IN STOCK
Photo Part No Description Price (each) Stock
SEE500030 KIT - SLIDE PIN BOOT $18.42 IN STOCK
Photo Part No Description Price (each) Stock
SEM500062 WIRE - BRAKE PAD WEAR WARNING $36.61 To Order
SEM500080 WIRE - BRAKE PAD WEAR WARNING $42.43 To Order
Photo Part No Description Price (each) Stock
SEH500010 CARRIER $79.14 To Order
SEH500011 CARRIER $85.43 To Order
SEH500012 CARRIER $82.00 To Order
...and 1 more part variants. See table on right for more details.
View All

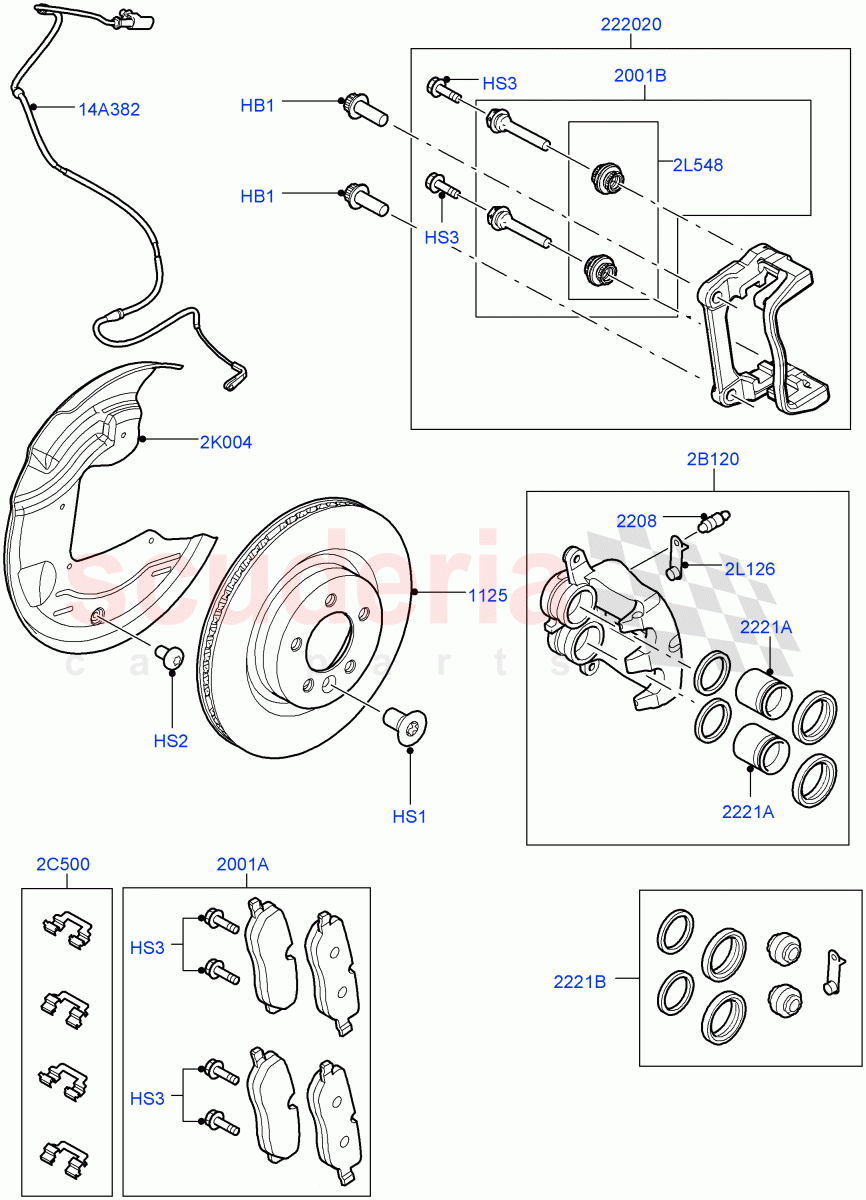

Front Brake Discs And Calipers (AJ Petrol 4.4 V8 EFI (220KW), With 17" Front Vented & Rear Vented, Lion Diesel 2.7 V6 (140KW), With 18" Front And Rear Vented) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 SYG000012
BOLT
M16 X 1.5 X 45 / To: 6A999999 		$8.08 4
HB1 SYG500050
BOLT
M16 X 1.5 X 45 / From: 7A000001
IN STOCK 		$8.57 4
HS1 SYP100241
SCREW
M10 X 1.5
IN STOCK 		$3.11 2
HS2 SYP500020
SCREW
M6 X 10MM, Torx
IN STOCK 		$2.06 10
HS3 SMV500010
SCREW
Pin - Slide
IN STOCK 		$2.75 4
2B120 SEG500040
CALIPER ASSY - BRAKE - LESS PADS
RH 		$471.91 1
2B120 SEG500050
CALIPER ASSY - BRAKE - LESS PADS
LH 		$481.37 1
2C500 LR019625
SPRING - BRAKE CALIPER
Axle Set, Includes Clips 		$6.77 1
2K004 SEC000172
SHIELD - SPLASH
LH 		$71.84 1
2K004 SEC000162
SHIELD - SPLASH
RH 		$71.84 1
2L126 SEE500100
CAP - BLEED SCREW
IN STOCK 		$1.94 2
2L548 SEE500030
KIT - SLIDE PIN BOOT
IN STOCK 		$18.42 4
14A382 SEM500062
WIRE - BRAKE PAD WEAR WARNING
To: 6A999999 		$36.61 1
14A382 SEM500080
WIRE - BRAKE PAD WEAR WARNING
From: 7A000001 		$42.43 1
1125 SDB000603
ROTOR
Lion Diesel 2.7 V6 (140KW) / To: 6A953688 		$84.07 2
1125 SDB000613
ROTOR
AJ Petrol 4.4 V8 EFI (220KW) / To: 6A953688 		$92.94 2
1125 SDB000604
DISC - BRAKE - VENTED
Lion Diesel 2.7 V6 (140KW) / From: 6A953689
IN STOCK 		$84.07 2
1125 SDB000614
DISC - BRAKE - VENTED
AJ Petrol 4.4 V8 EFI (220KW) / From: 6A953689 		$92.94 2
2001A LR019618
BRAKE PADS - LESS SPRINGS
Axle Set, Less Clips 		$79.68 1
2001B SEE500020
KIT - CALIPER BRAKE PAD MTG PARTS
Pin - Retainer, Pin And Boot 		$31.81 2
2208 LR015523
SCREW - BLEED
IN STOCK 		$6.75 2
2221A STC1918
PISTON 		$39.25 4
2221B SEE500010
KIT - CALIPER REPAIR
Boot And Seal, Seal - Piston 		$30.17 2
222020 SEH500010
CARRIER
Lion Diesel 2.7 V6 (140KW) / To: 6A954280 		$79.14 2
222020 SEH500011
CARRIER
AJ Petrol 4.4 V8 EFI (220KW) / To: 6A954280 		$85.43 2
222020 SEH500012
CARRIER
Lion Diesel 2.7 V6 (140KW) / From: 6A954281 		$82.00 2
222020 SEH500013
CARRIER
AJ Petrol 4.4 V8 EFI (220KW) / From: 6A954281 		$80.80 2
