Rear Brake Pipes ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] - Rear Brake Pipes ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
SYC100530 CLIP $2.17 IN STOCK
Photo Part No Description Price (each) Stock
EJP7813 CLIP - HOSE $2.48 IN STOCK
Photo Part No Description Price (each) Stock
ANR1864 CLIP - BRAKE PIPE $1.60 To Order
Photo Part No Description Price (each) Stock
BMK2466 CONNECTOR $9.70 To Order
Photo Part No Description Price (each) Stock
SGH100050 CONNECTOR $60.60 To Order
Photo Part No Description Price (each) Stock
SGB001715 TUBE - BRAKE $33.39 To Order
SGB001775 TUBE - BRAKE $13.80 To Order
LR021673 TUBE - BRAKE $41.39 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
SGB001803 TUBE - BRAKE $15.42 To Order
LR021678 TUBE - BRAKE $31.04 IN STOCK
Photo Part No Description Price (each) Stock
SGB001813 TUBE - BRAKE $16.66 To Order
LR021679 TUBE - BRAKE $31.04 To Order
Photo Part No Description Price (each) Stock
SGB500051 TUBE - BRAKE $25.78 To Order
SGB500052 TUBE - BRAKE $72.09 To Order
Photo Part No Description Price (each) Stock
SGB500061 TUBE - BRAKE $25.78 To Order
SGB500062 TUBE - BRAKE $72.09 To Order
Photo Part No Description Price (each) Stock
LR056966 TUBE - BRAKE $168.14 To Order
Photo Part No Description Price (each) Stock
LR056965 TUBE - BRAKE $168.14 To Order
Photo Part No Description Price (each) Stock
SGB001705 TUBE - BRAKE $16.66 To Order
SGB001765 TUBE - BRAKE $15.12 To Order
LR021672 TUBE - BRAKE $41.70 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
SHB500051 HOSE - BRAKE $29.11 To Order
SHB500270 HOSE - BRAKE $35.03 To Order
Photo Part No Description Price (each) Stock
SHB500013 HOSE - BRAKE $29.11 To Order
SHB500280 HOSE - BRAKE $35.03 To Order
Photo Part No Description Price (each) Stock
SGK100470 CLIP $0.77 To Order
Photo Part No Description Price (each) Stock
SGB500011 TUBE - BRAKE $27.25 To Order
SGB500021 TUBE - BRAKE $27.25 To Order
SGB500012 TUBE - BRAKE $28.15 To Order
...and 3 more part variants. See table on right for more details.
View All

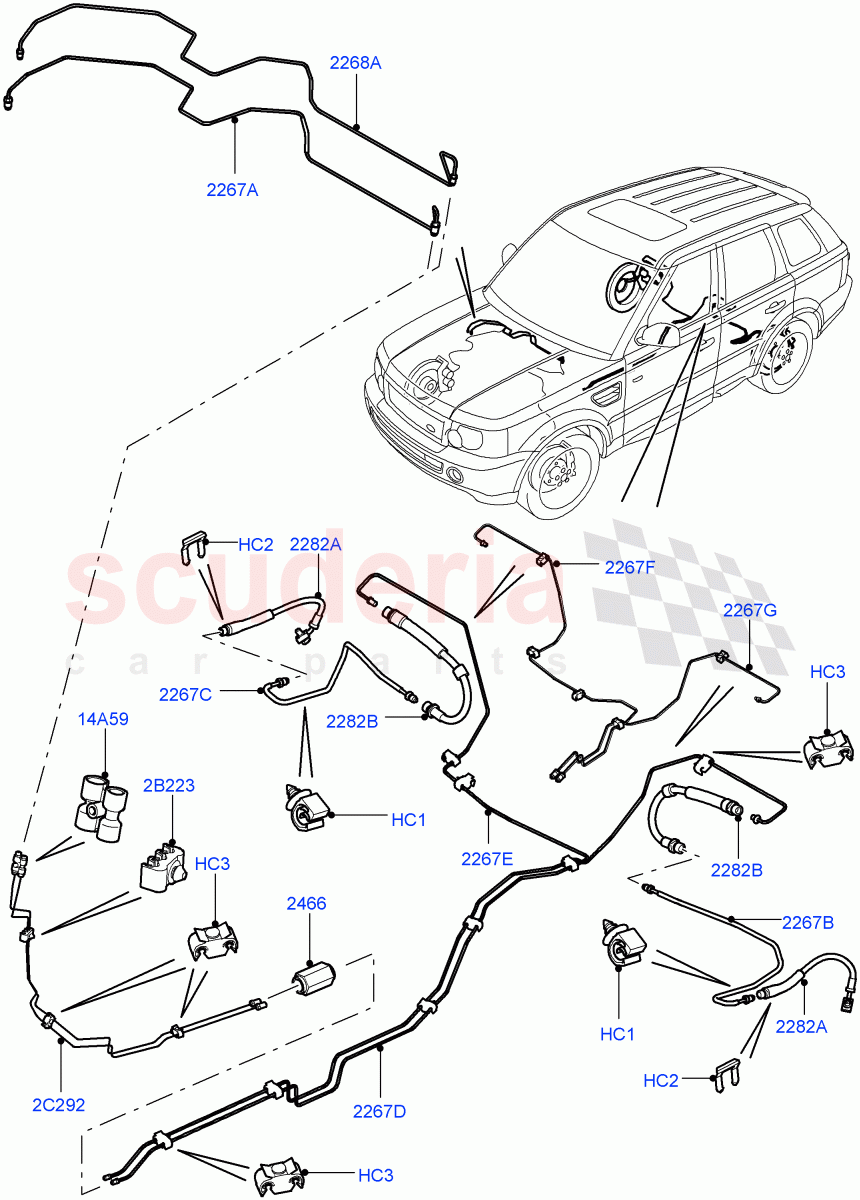

Rear Brake Pipes ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 SYC100530
CLIP
Single
IN STOCK 		$2.17 2
HC2 EJP7813
CLIP - HOSE
Brake Hose
IN STOCK 		$2.48 6
HC3 ANR1864
CLIP - BRAKE PIPE
Double 		$1.60 8
2B223 SGK100470
CLIP 		$0.77 1
2C292 SGB500011
TUBE - BRAKE
LH / To: 5A901723 		$27.25 1
2C292 SGB500021
TUBE - BRAKE
RH / To: 5A901723 		$27.25 1
2C292 SGB500012
TUBE - BRAKE
LH / From: 5A901724 / To: 6A999999 		$28.15 1
2C292 SGB500022
TUBE - BRAKE
RH / From: 5A901724 / To: 6A999999 		$28.15 1
2C292 SGB501440
TUBE - BRAKE
LH / From: 7A000001 		$96.09 1
2C292 SGB501450
TUBE - BRAKE
RH / From: 7A000001 		$96.09 1
14A59 SGH100050
CONNECTOR 		$60.60 1
2267A SGB001715
TUBE - BRAKE
LHD / Modulator To Rear 4 Way Connector RH / To: 9A215187 		$33.39 1
2267A SGB001775
TUBE - BRAKE
RHD / Modulator To Rear 4 Way Connector RH / To: 9A215187 		$13.80 1
2267A LR021673
TUBE - BRAKE
LHD / Modulator To Rear 4 Way Connector RH / From: 9A215188 		$41.39 1
2267A LR021677
TUBE - BRAKE
RHD / Modulator To Rear 4 Way Connector RH / From: 9A215188 		$51.61 1
2267B SGB001803
TUBE - BRAKE
LH / To: 9A215187 		$15.42 1
2267B LR021678
TUBE - BRAKE
LH / From: 9A215188
IN STOCK 		$31.04 1
2267C SGB001813
TUBE - BRAKE
RH / To: 9A215187 		$16.66 1
2267C LR021679
TUBE - BRAKE
RH / From: 9A215188 		$31.04 1
2267D SGB500051
TUBE - BRAKE
LH / To: 5A901723 		$25.78 1
2267D SGB500052
TUBE - BRAKE
LH / From: 5A901724 		$72.09 1
2267E SGB500061
TUBE - BRAKE
RH / To: 5A901723 		$25.78 1
2267E SGB500062
TUBE - BRAKE
RH / From: 5A901724 		$72.09 1
2267F LR056966
TUBE - BRAKE
RH, Service Kit, To Caliper 		$168.14 1
2267G LR056965
TUBE - BRAKE
LH, Service Kit, To Caliper 		$168.14 1
2268A SGB001705
TUBE - BRAKE
LHD / Modulator To Rear 4 Way Connector LH / To: 9A215187 		$16.66 1
2268A SGB001765
TUBE - BRAKE
RHD / Modulator To Rear 4 Way Connector LH / To: 9A215187 		$15.12 1
2268A LR021672
TUBE - BRAKE
LHD / Modulator To Rear 4 Way Connector LH / From: 9A215188 		$41.70 1
2268A LR021676
TUBE - BRAKE
RHD / Modulator To Rear 4 Way Connector LH / From: 9A215188 		$56.53 1
2282A SHB500051
HOSE - BRAKE
To: 8A175265 		$29.11 2
2282A SHB500270
HOSE - BRAKE
From: 8A175266 		$35.03 2
2282B SHB500013
HOSE - BRAKE
To: 8A175265 		$29.11 2
2282B SHB500280
HOSE - BRAKE
From: 8A175266 		$35.03 2
2466 BMK2466
CONNECTOR
For Service 		$9.70 2
