Fuel Tank & Related Parts (With 3 Vent Pipes, Vehicles With Original Fuel Tank) (3.6L V8 32V Dohc...

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] - Fuel Tank & Related Parts (With 3 Vent Pipes, Vehicles With Original Fuel Tank) (3.6L V8 32V DOHC...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
WYC100780 CLIP $2.77 To Order
Photo Part No Description Price (each) Stock
WYC000080 CLIP - HOSE $4.61 To Order
Photo Part No Description Price (each) Stock
WYQ000010 RIVET - PLASTIC $5.86 IN STOCK
Photo Part No Description Price (each) Stock
WYP500070 SCREW $9.49 To Order
Photo Part No Description Price (each) Stock
RYG500270 SCREW $2.83 To Order
Photo Part No Description Price (each) Stock
LR005624 RESTRICTOR $0.37 To Order
Photo Part No Description Price (each) Stock
WJ110006 WASHER $1.41 To Order
Photo Part No Description Price (each) Stock
KYH500100 NUT - SPRING $1.64 To Order
Photo Part No Description Price (each) Stock
WHK500210 TANK - FUEL $837.40 To Order
WHK500200 TANK - FUEL $837.40 To Order
Photo Part No Description Price (each) Stock
WLD500290 CAP - FUEL TANK FILLER $11.04 To Order
WLD500380 CAP - FUEL TANK FILLER $11.89 To Order
LR021560 CAP - FUEL TANK FILLER $36.15 To Order
Photo Part No Description Price (each) Stock
WMJ500183 PIPE - FUEL FILLER $431.12 To Order
Photo Part No Description Price (each) Stock
WLH500020 PIPE - FUEL FILLER $12.24 To Order
Photo Part No Description Price (each) Stock
WFN500021 STRAP - FUEL TANK $211.29 IN STOCK
Photo Part No Description Price (each) Stock
WGQ000031 GASKET $17.69 To Order
Photo Part No Description Price (each) Stock
WGC500110 COVER $133.48 To Order
WGC500120 RETAINER - WEATHERSTRIP $176.25 To Order
Photo Part No Description Price (each) Stock
WFP500361 TUBE $132.40 To Order
Photo Part No Description Price (each) Stock
WFP500350 TUBE $105.22 To Order
Photo Part No Description Price (each) Stock
WFK500011 INSULATOR $18.87 To Order
Photo Part No Description Price (each) Stock
WFK000050 INSULATOR $5.73 To Order
Photo Part No Description Price (each) Stock
WFP500570 HOSE $89.89 To Order
Photo Part No Description Price (each) Stock
WFP500500 PIPE - FUEL $67.39 To Order
Photo Part No Description Price (each) Stock
WFM500011 COLLAR $104.46 To Order
Photo Part No Description Price (each) Stock
LR006778 KIT - "O" RING $97.70 To Order
Photo Part No Description Price (each) Stock
WFU500020 BRACKET $3.31 To Order
Photo Part No Description Price (each) Stock
SPV500040 CLIP - PARKING BRAKE CABLE $1.51 To Order
Photo Part No Description Price (each) Stock
WFG000033 RING - RETAINING $18.93 To Order
Photo Part No Description Price (each) Stock
WJP501690 TUBE - FUEL FEED $97.90 To Order
Photo Part No Description Price (each) Stock
WFZ500034 SHIELD $34.20 To Order
Photo Part No Description Price (each) Stock
WFZ500130 SHIELD $71.06 To Order
View All

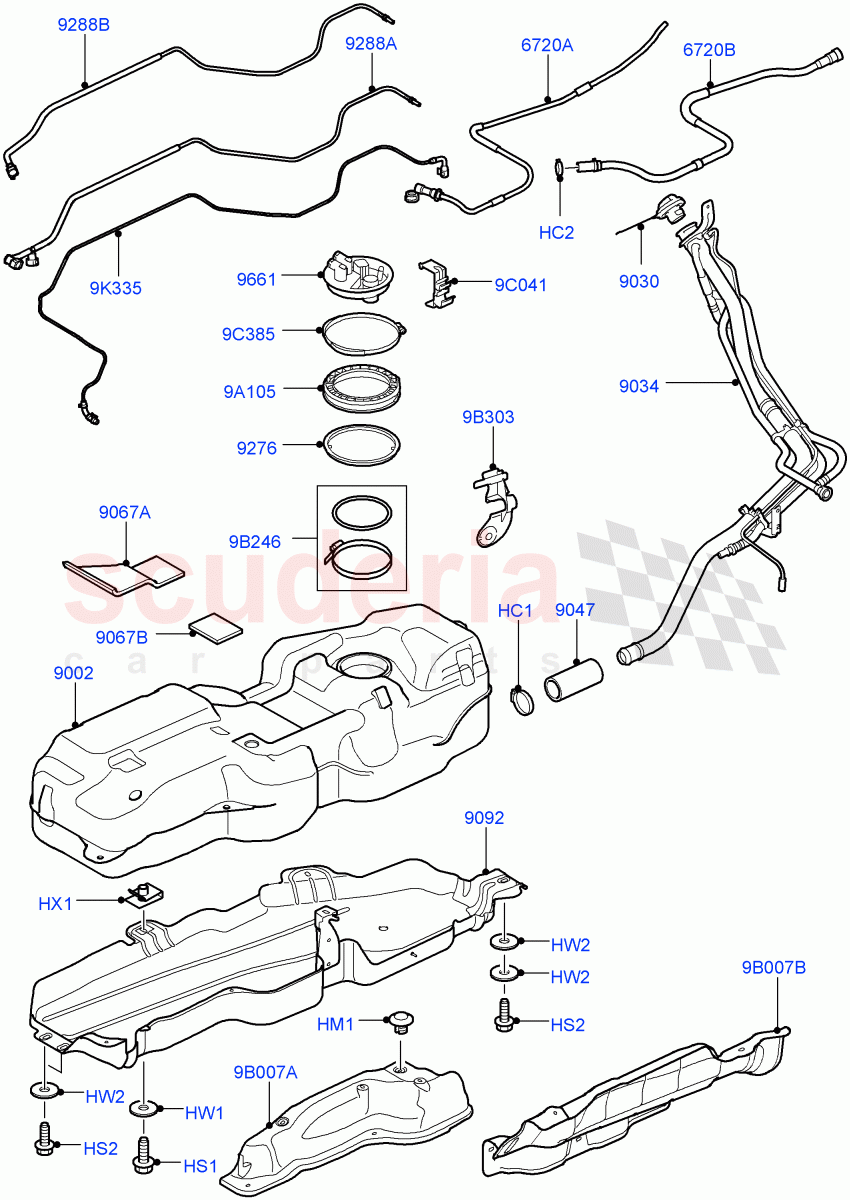

Fuel Tank & Related Parts (With 3 Vent Pipes, Vehicles With Original Fuel Tank) (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROM7A000001, (V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 WYC100780
CLIP
Pipe Clamp / From: 7A000001 		$2.77 2
HC2 WYC000080
CLIP - HOSE
27MM / From: 7A000001 		$4.61 1
HM1 WYQ000010
RIVET - PLASTIC
Plastic, Rivet Type / From: 7A000001
IN STOCK 		$5.86 2
HS1 WYP500070
SCREW
M10 X 25MM / From: 7A000001 		$9.49 3
HS2 RYG500270
SCREW
Hexagonal Head, M10 X 25MM / From: 7A000001 		$2.83 3
HW1 LR005624
RESTRICTOR
10 MM / From: 7A000001 		$0.37 3
HW2 WJ110006
WASHER
10 MM / From: 7A000001 		$1.41 4
HX1 KYH500100
NUT - SPRING
Fuel Tank Attaching, M10, Nut "U" Spring / From: 7A000001 		$1.64 2
9A105 WFM500011
COLLAR
From: 7A000001 		$104.46 1
9B007A WFZ500034
SHIELD
From: 7A000001 		$34.20 1
9B007B WFZ500130
SHIELD
From: 7A000001 		$71.06 1
9B246 LR006778
KIT - "O" RING
From: 7A000001 		$97.70 1
9B303 WFU500020
BRACKET
From: 7A000001 		$3.31 1
9C041 SPV500040
CLIP - PARKING BRAKE CABLE
From: 7A000001 		$1.51 2
9C385 WFG000033
RING - RETAINING
From: 7A000001 		$18.93 1
9K335 WJP501690
TUBE - FUEL FEED
With Fuel Fired Heater / From: 7A000001 		$97.90 1
6720A WFP500361
TUBE
From: 7A000001 		$132.40 1
6720B WFP500350
TUBE
From: 7A000001 		$105.22 1
9002 WHK500210
TANK - FUEL
With Fuel Fired Heater / Less Pump, Less Sender Assy. / From: 7A000001 		$837.40 1
9002 WHK500200
TANK - FUEL
Less Heater / Less Pump, Less Sender Assy. / From: 7A000001 		$837.40 1
9030 WLD500290
CAP - FUEL TANK FILLER
From: 7A000001 / To: 7A999999 		$11.04 1
9030 WLD500380
CAP - FUEL TANK FILLER
From: 8A000001 		$11.89 1
9030 LR021560
CAP - FUEL TANK FILLER
From: 7A000001 		$36.15 1
9034 WMJ500183
PIPE - FUEL FILLER
From: 7A000001 		$431.12 1
9047 WLH500020
PIPE - FUEL FILLER
From: 7A000001 		$12.24 1
9067A WFK500011
INSULATOR
From: 7A000001 		$18.87 1
9067B WFK000050
INSULATOR
From: 7A000001 		$5.73 1
9092 WFN500021
STRAP - FUEL TANK
From: 7A000001
IN STOCK 		$211.29 1
9276 WGQ000031
GASKET
From: 7A000001 		$17.69 1
9288A WFP500570
HOSE
Fuel Filter Outlet To Fuel Tank, Return / From: 7A000001 		$89.89 1
9288B WFP500500
PIPE - FUEL
Feed, From Fuel Tank To Fuel Filter / From: 7A000001 		$67.39 1
9661 WGC500110
COVER
With Fuel Fired Heater / From: 7A000001 		$133.48 1
9661 WGC500120
RETAINER - WEATHERSTRIP
Less Fuel Heater / From: 7A000001 		$176.25 1
