Fuel Lines (3.6L V8 32V Dohc Efi Diesel Lion) ((V) From7A000001, (V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] - Fuel Lines (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROM7A000001, (V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
WYC500240 CLIP $3.03 To Order
Photo Part No Description Price (each) Stock
WYC500280 CLIP $3.01 To Order
Photo Part No Description Price (each) Stock
WYC500270 CLIP $5.73 IN STOCK
Photo Part No Description Price (each) Stock
WYC100880 CLIP $1.36 To Order
Photo Part No Description Price (each) Stock
FA106127 SCREW $0.47 To Order
Photo Part No Description Price (each) Stock
WJP501032 PIPE - FUEL $115.23 To Order
WJP502450 PIPE - FUEL $120.29 To Order
Photo Part No Description Price (each) Stock
WJP501331 Pipe - Fuel Enquire To Order
Photo Part No Description Price (each) Stock
WKU500150 SHIELD - FUEL TUBES $7.29 To Order
Photo Part No Description Price (each) Stock
WJP501161 PIPE - FUEL $30.81 To Order
Photo Part No Description Price (each) Stock
JEX500020 PUMP - FUEL $377.45 To Order
Photo Part No Description Price (each) Stock
WKU500130 SHIELD $91.69 To Order
Photo Part No Description Price (each) Stock
WJP502030 Tube Enquire To Order
WJP502170 Tube Enquire To Order
WJP502230 TUBE $60.34 To Order
Photo Part No Description Price (each) Stock
WJP502240 TUBE - FUEL RETURN $123.47 To Order
Photo Part No Description Price (each) Stock
WJP502120 PIPE - FUEL $38.17 To Order
Photo Part No Description Price (each) Stock
WJC500230 CLIP $5.47 To Order
Photo Part No Description Price (each) Stock
WJC500240 CLIP $1.94 To Order
Photo Part No Description Price (each) Stock
WJU500420 BRACKET $18.69 To Order
Photo Part No Description Price (each) Stock
WJU500320 BRACKET $29.88 To Order
Photo Part No Description Price (each) Stock
WJU000265 BRACKET $9.42 To Order
Photo Part No Description Price (each) Stock
WJU500410 BRACKET $35.00 To Order
Photo Part No Description Price (each) Stock
WJP501152 Pipe - Fuel $155.28 To Order
LR010359 PIPE - FUEL $202.20 To Order
Photo Part No Description Price (each) Stock
WJP502110 PIPE - FUEL $38.66 To Order
Photo Part No Description Price (each) Stock
WJP502100 PIPE - FUEL $76.57 To Order
WJP502470 PIPE - FUEL $100.59 To Order
Photo Part No Description Price (each) Stock
WJP501950 Pipe - Fuel Enquire To Order
WJP502250 PIPE - FUEL $250.39 To Order
LR016986 PIPE - FUEL $335.05 To Order
Photo Part No Description Price (each) Stock
WJP502380 PIPE - FUEL $231.03 To Order
Photo Part No Description Price (each) Stock
WJP502270 Tube - Fuel Enquire To Order
WJP502390 TUBE - FUEL FEED $91.41 To Order
Photo Part No Description Price (each) Stock
WJP501042 TUBE - FUEL FEED $86.93 To Order
View All

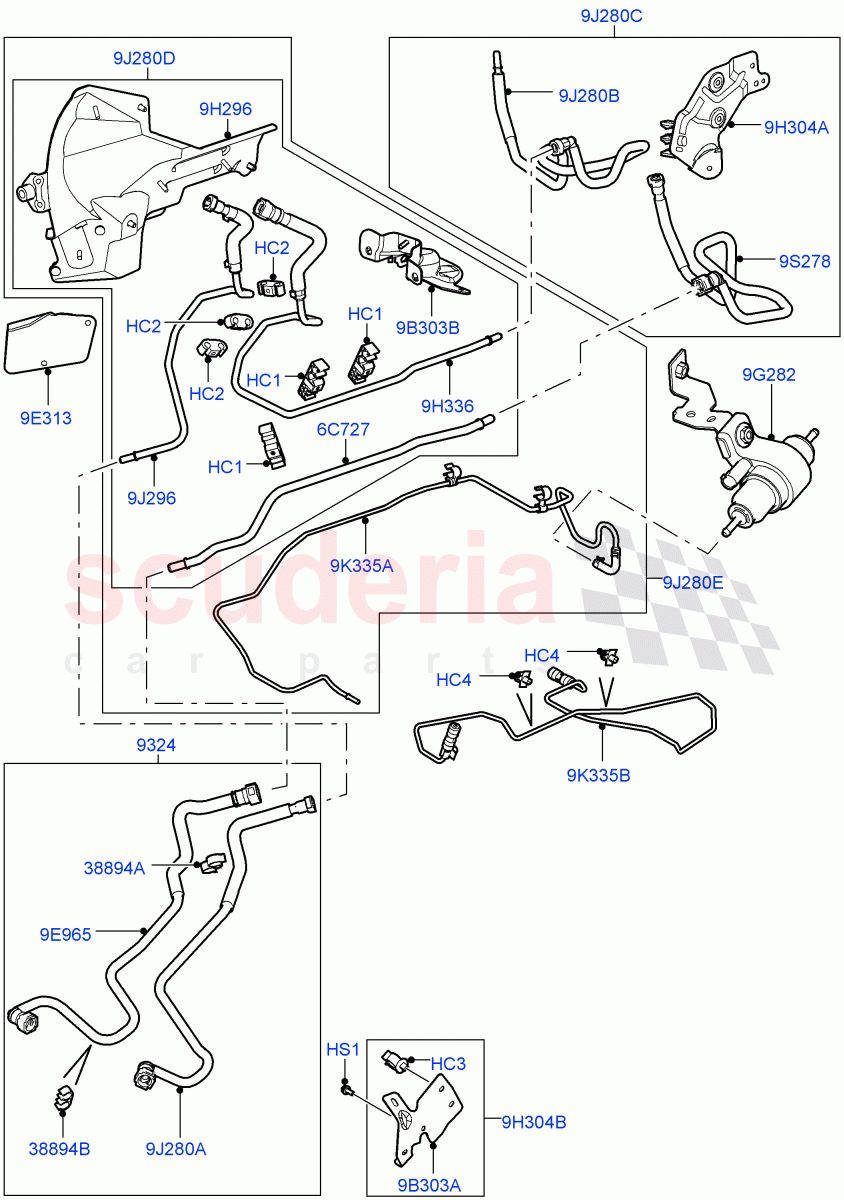

Fuel Lines (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROM7A000001, (V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 WYC500240
CLIP
4 Way, Tube Support / From: 7A000001 		$3.03 3
HC2 WYC500280
CLIP
Double, 		$3.01 3
HC3 WYC500270
CLIP
For
IN STOCK 		$5.73 3
HC4 WYC100880
CLIP
Tube Support / From: 7A000001 		$1.36 2
HS1 FA106127
SCREW
M6 x 12MM / From: 7A000001 		$0.47 1
6C727 WJP501331
Pipe - Fuel
From: 7A000001 		- 1 Enquire
9B303A WJU500420
BRACKET
From: 7A000001 		$18.69 1
9B303B WJU500320
BRACKET
From: 7A000001 		$29.88 1
9E313 WKU500150
SHIELD - FUEL TUBES
From: 7A000001 		$7.29 1
9E965 WJP501161
PIPE - FUEL
Return / From: 7A000001 / To: 9A198283 		$30.81 1
9G282 JEX500020
PUMP - FUEL
3.6L V8 32V DOHC EFi Diesel Lion / From: 7A000001 		$377.45 1
9H296 WKU500130
SHIELD
From: 7A000001 		$91.69 1
9H304A WJU000265
BRACKET
From: 7A000001 / To: 9A198283 		$9.42 1
9H304B WJU500410
BRACKET
From: 7A000001 		$35.00 1
9H336 WJP502030
Tube
From: 7A000001 / To: 7A000039 		- 1 Enquire
9H336 WJP502170
Tube
From: 7A000051 		- 1 Enquire
9H336 WJP502230
TUBE
From: 7A000040 / To: 7A000050 		$60.34 1
9J280A WJP501152
Pipe - Fuel
Supply / From: 7A000001 / To: 9A198283 		$155.28 1
9J280A LR010359
PIPE - FUEL
Supply / From: 9A198284 		$202.20 1
9J280B WJP502110
PIPE - FUEL
Supply / From: 7A000001 / To: 9A198283 		$38.66 1
9J280C WJP502100
PIPE - FUEL
From: 7A000001 / To: 9A198283 		$76.57 1
9J280C WJP502470
PIPE - FUEL
From: 9A198284 		$100.59 1
9J280D WJP501950
Pipe - Fuel
With Fresh Air Heater / From: 7A000001 / To: 7A106914 		- 1 Enquire
9J280D WJP502250
PIPE - FUEL
With Fresh Air Heater / From: 7A106915 / To: 9A211648 		$250.39 1
9J280D LR016986
PIPE - FUEL
With Fresh Air Heater / From: 9A211649 		$335.05 1
9J280E WJP502380
PIPE - FUEL
With Fuel Fired Heater / From: 7A000001 		$231.03 1
9J296 WJP502240
TUBE - FUEL RETURN
From: 7A000001 		$123.47 1
9K335A WJP502270
Tube - Fuel
With Fuel Fired Heater / From: 7A000001 / To: 7A246665 		- 1 Enquire
9K335A WJP502390
TUBE - FUEL FEED
3.6L V8 32V DOHC EFi Diesel Lion, With Fuel Fired Heater / From: 7A246666 		$91.41 1
9K335B WJP501042
TUBE - FUEL FEED
With Fuel Fired Heater / From: 7A000001 		$86.93 1
9S278 WJP502120
PIPE - FUEL
From: 7A000001 / To: 9A198283 		$38.17 1
9324 WJP501032
PIPE - FUEL
From: 7A000001 / To: 9A198283 		$115.23 1
9324 WJP502450
PIPE - FUEL
From: 9A198284 		$120.29 1
38894A WJC500230
CLIP
From: 7A000001 		$5.47 1
38894B WJC500240
CLIP
From: 7A000001 		$1.94 1
