Name: Exhaust Gas Recirculation (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROM7A000001, (V) TO9A999999)
Rating: 4.6 (1 reviews)

Exhaust Gas Recirculation (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROM7A000001, (V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] - Exhaust Gas Recirculation (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROM7A000001, (V) TO9A999999)

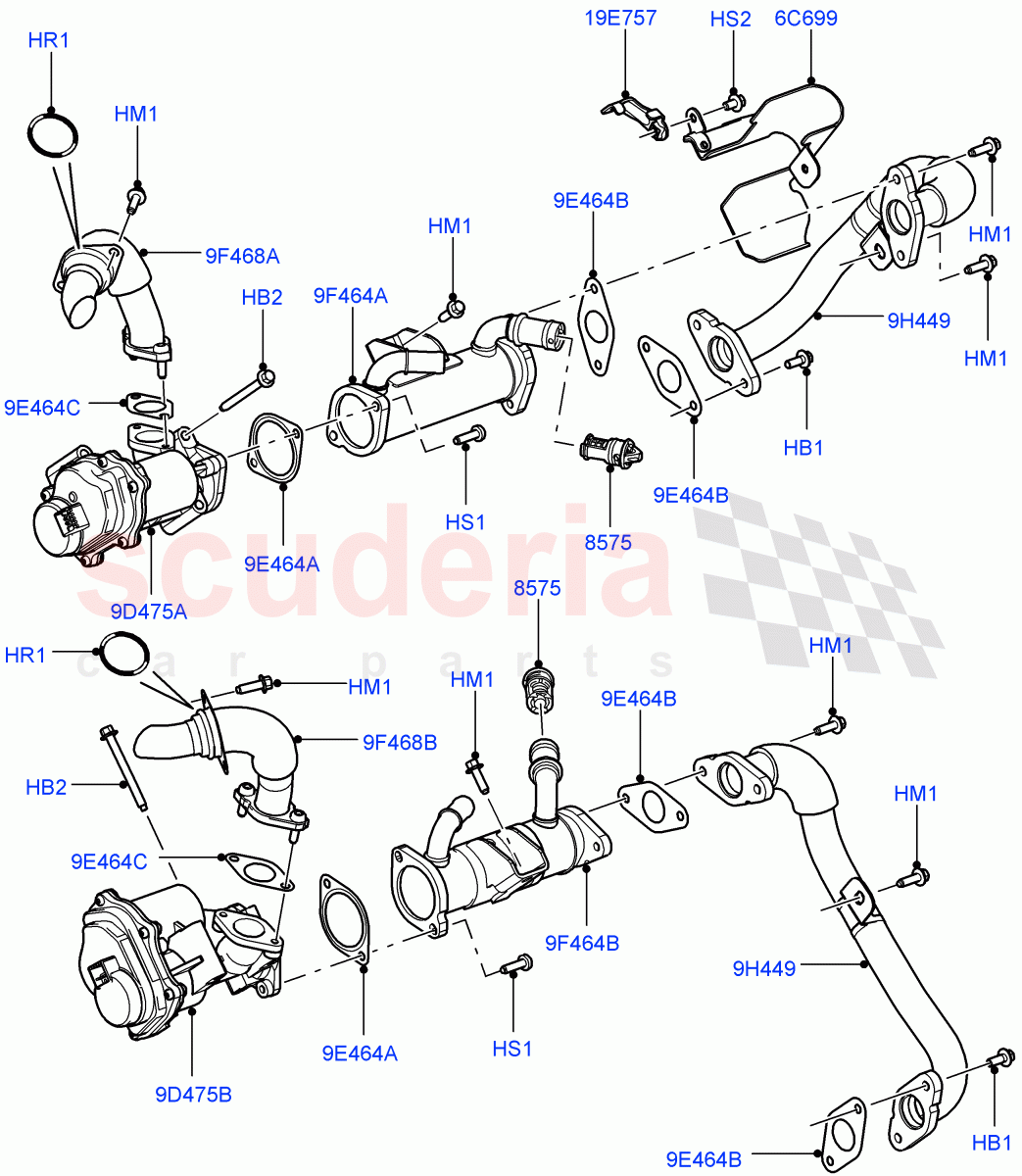

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1316028	BOLT	$1.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004123	BOLT	$3.51	To Order

Photo	Part No	Description	Price (each)	Stock
	4115041	BOLT	$0.49	To Order
	LR000624	BOLT	$2.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003898	RING - SEALING	$3.88	To Order

Photo	Part No	Description	Price (each)	Stock
	4126933	SCREW	$1.64	To Order
	RYP500960	SCREW	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106101	Screw	$0.53	To Order
	LR000621	SCREW	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	1418970	THERMOSTAT - EGR	$16.33	To Order
	LR006115	THERMOSTAT - EGR	$21.58	To Order

Photo	Part No	Description	Price (each)	Stock
	1418926	SHIELD	$24.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006215	TUBE - EXHAUST GAS RECIRCULATION	$108.47	To Order
	LR016789	TUBE - EXHAUST GAS RECIRCULATION	$332.57	To Order
	LR004252	TUBE - EXHAUST GAS RECIRCULATION	$105.32	To Order

Photo	Part No	Description	Price (each)	Stock
	1418949	BRACKET	$4.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003829	VALVE - EXHAUST GAS RECIRCULATION	$429.39	To Order
	LR009735	VALVE - EXHAUST GAS RECIRCULATION	$502.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003830	VALVE - EXHAUST GAS RECIRCULATION	$429.39	To Order
	LR009702	VALVE - EXHAUST GAS RECIRCULATION	$502.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003831	GASKET	$5.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004250	GASKET	$15.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003828	GASKET	$35.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003858	COOLER - EGR	$566.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003857	COOLER - EGR	$567.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002312	TUBE - EXHAUST GAS RECIRCULATION	$78.52	To Order
	LR006966	TUBE - EXHAUST GAS RECIRCULATION	$91.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001858	TUBE - EXHAUST GAS RECIRCULATION	$84.77	To Order
	LR006965	TUBE - EXHAUST GAS RECIRCULATION	$91.74	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	1316028	BOLT	1316028 BOLT M6 X 16MM / From: 7A000001	$1.31	4
HB2	LR004123	BOLT	LR004123 BOLT 4 Per Package, M6 x 60MM / From: 7A000001	$3.51	6
HM1	4115041	BOLT	4115041 BOLT M6 X 18.5 / From: 7A000001 / To: 7A999999	$0.49	16
HM1	LR000624	BOLT	LR000624 BOLT M6 X 18.5 / From: 8A000001	$2.47	16
HR1	LR003898	RING - SEALING	LR003898 RING - SEALING	$3.88	1
HS1	4126933	SCREW	4126933 SCREW M6 X 16MM / From: 7A000001 / To: 7A994287	$1.64	4
HS1	RYP500960	SCREW	RYP500960 SCREW M6 X 16MM, Torx / From: 7A994288	$0.57	4
HS2	FS106101	Screw	FS106101 Screw M6 X 10MM / From: 7A000001 / To: 7A999999	$0.53	1
HS2	LR000621	SCREW	LR000621 SCREW M6 X 10MM / From: 8A000001	$0.65	1
6C699	1418926	SHIELD	1418926 SHIELD EGR Valve, Inlet Pipe / From: 7A000001	$24.72	1
9D475A	LR003829	VALVE - EXHAUST GAS RECIRCULATION	LR003829 VALVE - EXHAUST GAS RECIRCULATION RH / From: 7A000001 / To: 7A112767	$429.39	1
9D475A	LR009735	VALVE - EXHAUST GAS RECIRCULATION	LR009735 VALVE - EXHAUST GAS RECIRCULATION RH / From: 7A112768	$502.20	1
9D475B	LR003830	VALVE - EXHAUST GAS RECIRCULATION	LR003830 VALVE - EXHAUST GAS RECIRCULATION LH / From: 7A000001 / To: 7A112767	$429.39	1
9D475B	LR009702	VALVE - EXHAUST GAS RECIRCULATION	LR009702 VALVE - EXHAUST GAS RECIRCULATION LH / From: 7A112768	$502.20	1
9E464A	LR003831	GASKET	LR003831 GASKET EGR Cooler, EGR Valve / From: 7A000001	$5.06	2
9E464B	LR004250	GASKET	LR004250 GASKET EGR Cooler, Inlet Pipe / From: 7A000001	$15.82	4
9E464C	LR003828	GASKET	LR003828 GASKET Outlet pipe / From: 7A000001	$35.24	1
9F464A	LR003858	COOLER - EGR	LR003858 COOLER - EGR RH / From: 7A000001	$566.05	1
9F464B	LR003857	COOLER - EGR	LR003857 COOLER - EGR LH / From: 7A000001	$567.89	1
9F468A	LR002312	TUBE - EXHAUST GAS RECIRCULATION	LR002312 TUBE - EXHAUST GAS RECIRCULATION RH / From: 7A000001 / To: 8A142900	$78.52	1
9F468A	LR006966	TUBE - EXHAUST GAS RECIRCULATION	LR006966 TUBE - EXHAUST GAS RECIRCULATION RH / From: 8A142901	$91.74	1
9F468B	LR001858	TUBE - EXHAUST GAS RECIRCULATION	LR001858 TUBE - EXHAUST GAS RECIRCULATION LH / From: 7A000001 / To: 8A142900	$84.77	1
9F468B	LR006965	TUBE - EXHAUST GAS RECIRCULATION	LR006965 TUBE - EXHAUST GAS RECIRCULATION LH / From: 8A142901	$91.74	1
9H449	LR006215	TUBE - EXHAUST GAS RECIRCULATION	LR006215 TUBE - EXHAUST GAS RECIRCULATION From: 8A142901 / To: 9A204626	$108.47	2
9H449	LR016789	TUBE - EXHAUST GAS RECIRCULATION	LR016789 TUBE - EXHAUST GAS RECIRCULATION From: 9A204627	$332.57	2
9H449	LR004252	TUBE - EXHAUST GAS RECIRCULATION	LR004252 TUBE - EXHAUST GAS RECIRCULATION From: 7A000001 / To: 8A142900	$105.32	1
19E757	1418949	BRACKET	1418949 BRACKET Heat Shield / From: 7A000001	$4.66	1
8575	1418970	THERMOSTAT - EGR	1418970 THERMOSTAT - EGR EGR Valve / From: 7A000001 / To: 7A989639	$16.33	1
8575	LR006115	THERMOSTAT - EGR	LR006115 THERMOSTAT - EGR EGR Valve / From: 7A989640	$21.58	1

Exhaust Gas Recirculation (3.6L V8 32V Dohc Efi Diesel Lion) ((V) From7A000001, (V) To9A999999)
