Emission Control - Crankcase (3.6L V8 32V Dohc Efi Diesel Lion) ((V) From7A000001, (V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] - Emission Control - Crankcase (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROM7A000001, (V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108206 BOLT $2.29 IN STOCK
Photo Part No Description Price (each) Stock
LR003642 BOLT $1.42 To Order
Photo Part No Description Price (each) Stock
LR004542 CLIP $1.21 To Order
Photo Part No Description Price (each) Stock
LR004543 CLIP $5.31 To Order
Photo Part No Description Price (each) Stock
LR004540 CLIP $1.21 To Order
Photo Part No Description Price (each) Stock
LR004541 CLIP $0.77 To Order
Photo Part No Description Price (each) Stock
1418851 SEAL $38.67 To Order
Photo Part No Description Price (each) Stock
1418849 TUBE $128.78 To Order
LR005256 TUBE $123.95 To Order
Photo Part No Description Price (each) Stock
LLP500070 TUBE $314.73 To Order
Photo Part No Description Price (each) Stock
LR004869 Hose Enquire To Order
LR006472 HOSE AND BRACKET $259.97 To Order
LR014302 HOSE AND BRACKET $315.88 To Order
Photo Part No Description Price (each) Stock
LR004273 HOSE $24.37 To Order
View All

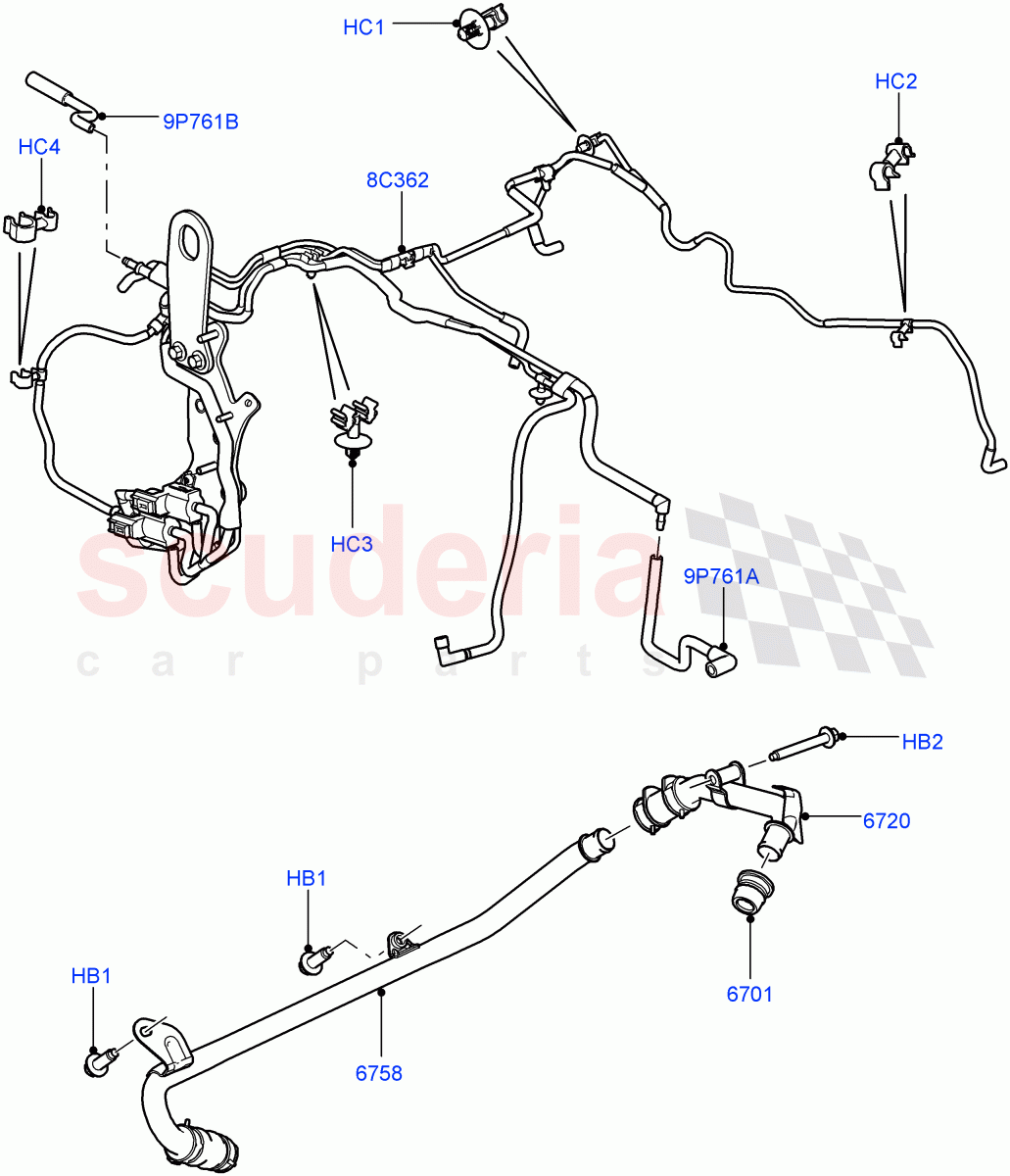

Emission Control - Crankcase (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROM7A000001, (V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108206
BOLT
Hexagonal Head, M8 X 20MM / From: 7A000001
IN STOCK 		$2.29 2
HB2 LR003642
BOLT
M6 X 45MM / From: 7A000001 		$1.42 1
HC1 LR004542
CLIP
4.3-5.2 X 6.5 X 0.8-6 / From: 7A000001 		$1.21 2
HC2 LR004543
CLIP
4.3-5.2 + 6-6.5 / From: 7A000001 		$5.31 1
HC3 LR004540
CLIP
5 + 5 X 6.5 X 0.8-6 / From: 7A000001 		$1.21 1
HC4 LR004541
CLIP
6-6.5 + 11-13 / From: 7A000001 		$0.77 1
8C362 LR004869
Hose
For Standard Crankcase Emission Control / From: 7A000001 / To: 7A994798 		- 1 Enquire
8C362 LR006472
HOSE AND BRACKET
For Standard Crankcase Emission Control / From: 7A994799 / To: 9A203051 		$259.97 1
8C362 LR014302
HOSE AND BRACKET
For Standard Crankcase Emission Control / From: 9A203052 		$315.88 1
9P761B LR004273
HOSE
RH / From: 7A000001 		$24.37 1
6701 1418851
SEAL
From: 7A000001 		$38.67 1
6720 1418849
TUBE
From: 7A000001 / To: 8A140060 		$128.78 1
6720 LR005256
TUBE
To Oil Separator / From: 8A140061 		$123.95 1
6758 LLP500070
TUBE
VENT / From: 7A000001 		$314.73 1
