Name: Exhaust Manifold (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROM7A000001, (V) TO9A999999)
Rating: 4.0 (1 reviews)

View All

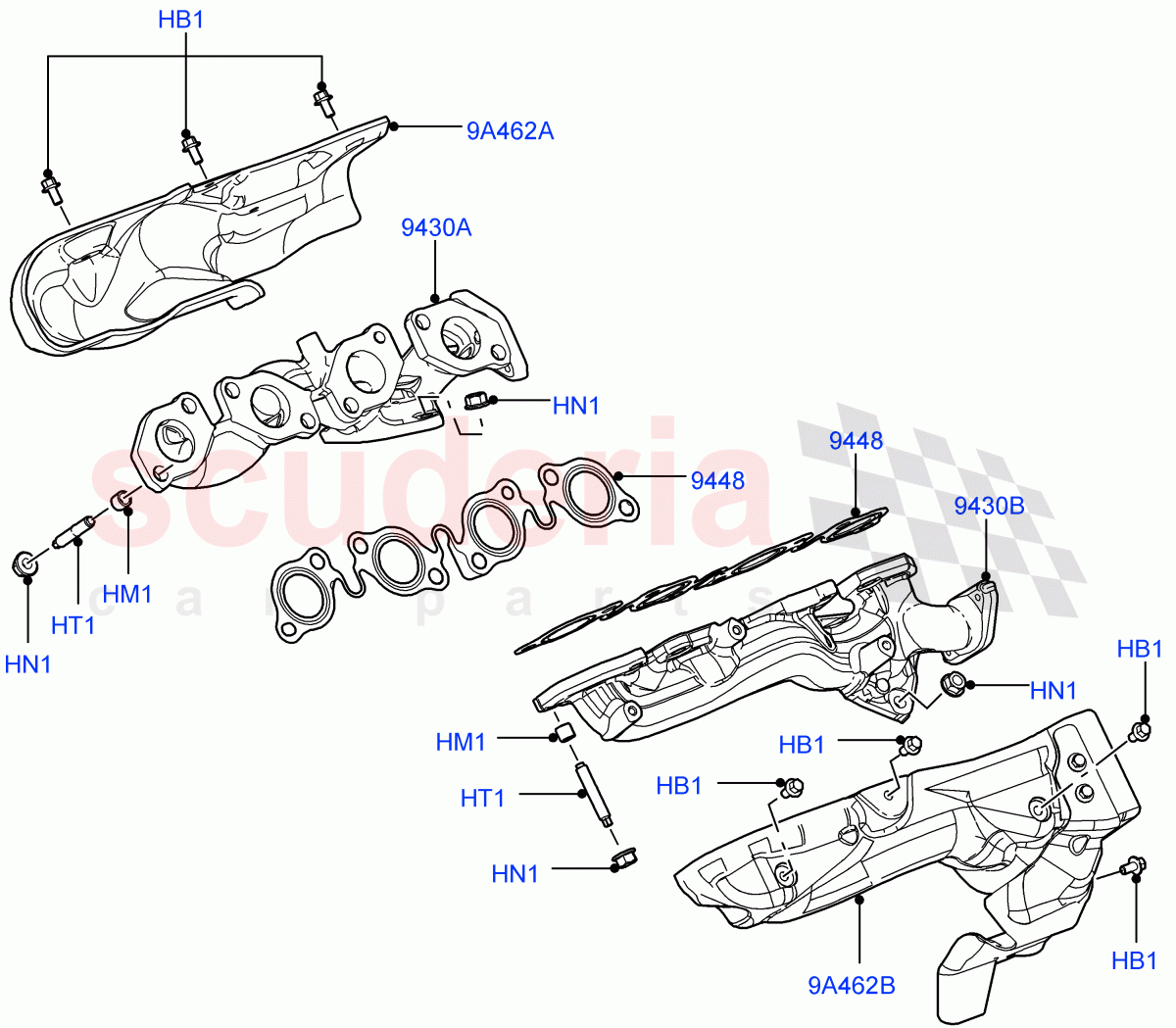

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LYG500210	BOLT - HEX.HEAD	$14.25	To Order

Photo	Part No	Description	Price (each)	Stock
	1003736	SPACER	$4.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106277	NUT - HEX. - FLANGED	$2.17	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1357627	STUD	$2.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1420910	GASKET	$29.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005685	MANIFOLD - EXHAUST	$1,970.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005686	MANIFOLD - EXHAUST	$1,356.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LWQ500230	SHIELD - EXHAUST MANIFOLD HEAT	$53.58	To Order
	LWQ500140	SHIELD - EXHAUST MANIFOLD HEAT	$40.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LWQ500150	SHIELD - EXHAUST MANIFOLD HEAT	$56.47	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LYG500210	BOLT - HEX.HEAD	LYG500210 BOLT - HEX.HEAD M6 X 8MM / From: 7A000001	$14.25	7
HM1	1003736	SPACER	1003736 SPACER 8.5 x 10MM, Spacer For Exhaust Manifold Bolt / From: 7A000001	$4.26	2
HN1	LR106277	NUT - HEX. - FLANGED IN STOCK	LR106277 NUT - HEX. - FLANGED M8 / From: 7A000001 IN STOCK	$2.17	16
HT1	1357627	STUD IN STOCK	1357627 STUD M8 X 17 + M8 X 19 / From: 7A000001 IN STOCK	$2.53	16
9A462A	LWQ500230	SHIELD - EXHAUST MANIFOLD HEAT	LWQ500230 SHIELD - EXHAUST MANIFOLD HEAT RH, Exhaust Manifold / From: 7A107123	$53.58	1
9A462A	LWQ500140	SHIELD - EXHAUST MANIFOLD HEAT	LWQ500140 SHIELD - EXHAUST MANIFOLD HEAT RH, Exhaust Manifold / From: 7A000001 / To: 7A107122	$40.37	1
9A462B	LWQ500150	SHIELD - EXHAUST MANIFOLD HEAT	LWQ500150 SHIELD - EXHAUST MANIFOLD HEAT LH, Exhaust Manifold / From: 7A000001	$56.47	1
9430A	LR005685	MANIFOLD - EXHAUST	LR005685 MANIFOLD - EXHAUST RH / From: 7A000001	$1,970.00	1
9430B	LR005686	MANIFOLD - EXHAUST	LR005686 MANIFOLD - EXHAUST LH / From: 7A000001	$1,356.12	1
9448	1420910	GASKET	1420910 GASKET Exhaust Manifold / From: 7A000001	$29.31	2

Exhaust Manifold (3.6L V8 32V Dohc Efi Diesel Lion) ((V) From7A000001, (V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel]
