Name: Cylinder Head (RH) (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROM7A000001, (V) TO9A999999)
Rating: 4.3 (1 reviews)

Cylinder Head (RH) (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROM7A000001, (V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] - Cylinder Head (RH) (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROM7A000001, (V) TO9A999999)

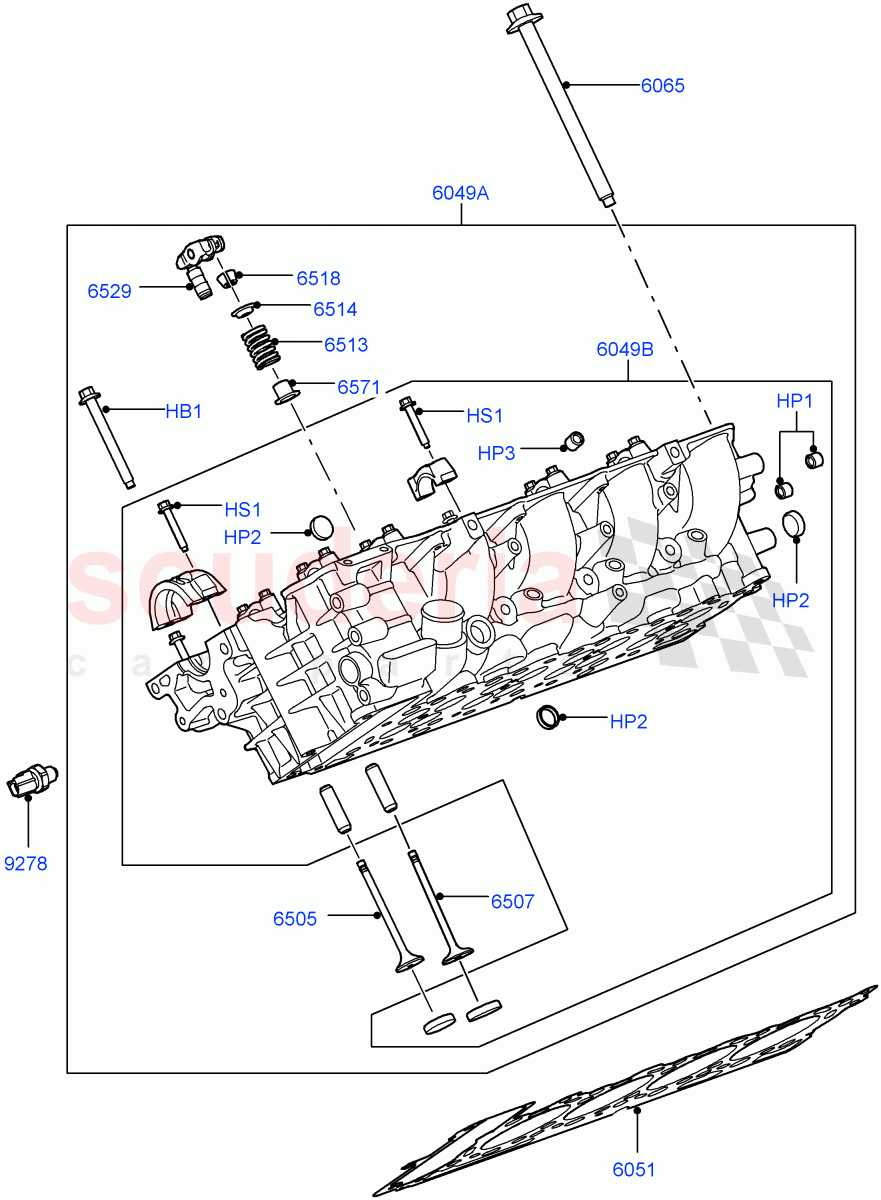

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1419374	BOLT	$4.15	To Order

Photo	Part No	Description	Price (each)	Stock
	1318815	PLUG	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	1102774	PLUG - ENGINE	$6.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000780	PLUG - ENGINE	$1.13	To Order

Photo	Part No	Description	Price (each)	Stock
	4556038	BOLT	$3.32	To Order

Photo	Part No	Description	Price (each)	Stock
	1418984	GASKET - CYLINDER HEAD	$112.76	To Order
	1418985	GASKET - CYLINDER HEAD	$112.76	To Order
	LR000635	GASKET - CYLINDER HEAD	$129.71	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1331316	BOLT - CYLINDER HEAD	$4.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008130	VALVE - EXHAUST	$32.54	To Order

Photo	Part No	Description	Price (each)	Stock
	1311281	VALVE - INLET	$21.67	To Order

Photo	Part No	Description	Price (each)	Stock
	1311282	SPRING - VALVE	$6.77	To Order
	LR006720	SPRING - VALVE	$7.47	To Order

Photo	Part No	Description	Price (each)	Stock
	1311283	RETAINER - VALVE SPRING	$3.89	To Order

Photo	Part No	Description	Price (each)	Stock
	1041831	COLLET - VALVE SPRING RETAINER	$7.27	To Order

Photo	Part No	Description	Price (each)	Stock
	1336545	ARM - FOLLOWER	$33.74	To Order

Photo	Part No	Description	Price (each)	Stock
	1311285	SEAL - VALVE STEM	$14.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000633	SWITCH - OIL PRESSURE	$15.28	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR002435	CYLINDER HEAD	$3,335.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002445	CYLINDER HEAD	$2,968.16	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	1419374	BOLT	1419374 BOLT M8 X 75MM / From: 7A000001	$4.15	3
HP1	1318815	PLUG	1318815 PLUG	$1.05	3
HP2	1102774	PLUG - ENGINE	1102774 PLUG - ENGINE 22MM / From: 7A000001	$6.56	3
HP3	LR000780	PLUG - ENGINE	LR000780 PLUG - ENGINE 10 MM / From: 7A000001	$1.13	2
HS1	4556038	BOLT	4556038 BOLT M6 x 35MM / From: 7A000001	$3.32	22
6049A	LR002435	CYLINDER HEAD	LR002435 CYLINDER HEAD With Valves / From: 7A000001	$3,335.28	1
6049B	LR002445	CYLINDER HEAD	LR002445 CYLINDER HEAD Less Valves / From: 7A000001	$2,968.16	1
6051	1418984	GASKET - CYLINDER HEAD	1418984 GASKET - CYLINDER HEAD Grade 1 / From: 7A000001	$112.76	-
6051	1418985	GASKET - CYLINDER HEAD	1418985 GASKET - CYLINDER HEAD Grade 2 / From: 7A000001	$112.76	-
6051	LR000635	GASKET - CYLINDER HEAD	LR000635 GASKET - CYLINDER HEAD Grade 3 / From: 7A000001	$129.71	-
6051	1418987	GASKET - CYLINDER HEAD	1418987 GASKET - CYLINDER HEAD Grade 4 / From: 7A000001	$112.76	-
6051	1418989	GASKET - CYLINDER HEAD	1418989 GASKET - CYLINDER HEAD Grade 5 / From: 7A000001	$112.76	-
6065	1331316	BOLT - CYLINDER HEAD	1331316 BOLT - CYLINDER HEAD M13 X 155 / From: 7A000001	$4.48	10
6505	LR008130	VALVE - EXHAUST	LR008130 VALVE - EXHAUST From: 7A000001	$32.54	8
6507	1311281	VALVE - INLET	1311281 VALVE - INLET From: 7A000001	$21.67	8
6513	1311282	SPRING - VALVE	1311282 SPRING - VALVE From: 7A000001 / To: 8A136253	$6.77	16
6513	LR006720	SPRING - VALVE	LR006720 SPRING - VALVE From: 8A136254	$7.47	16
6514	1311283	RETAINER - VALVE SPRING	1311283 RETAINER - VALVE SPRING From: 7A000001	$3.89	16
6518	1041831	COLLET - VALVE SPRING RETAINER	1041831 COLLET - VALVE SPRING RETAINER From: 7A000001	$7.27	32
6529	1336545	ARM - FOLLOWER	1336545 ARM - FOLLOWER From: 7A000001	$33.74	16
6571	1311285	SEAL - VALVE STEM	1311285 SEAL - VALVE STEM From: 7A000001	$14.02	16
9278	LR000633	SWITCH - OIL PRESSURE IN STOCK	LR000633 SWITCH - OIL PRESSURE From: 7A000001 IN STOCK	$15.28	1

Cylinder Head (Rh) (3.6L V8 32V Dohc Efi Diesel Lion) ((V) From7A000001, (V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel]

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] - Cylinder Head (RH) (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROM7A000001, (V) TO9A999999)
