Spare Wheel Carrier ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Spare Wheel Carrier ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
KTO000013 GROMMET $20.06 To Order
Photo Part No Description Price (each) Stock
RV612183 RIVET $7.54 To Order
Photo Part No Description Price (each) Stock
ADU7048 NUT - FLANGED $13.34 To Order
Photo Part No Description Price (each) Stock
RYH500420 NUT AND WASHER - HEX. $0.44 IN STOCK
Photo Part No Description Price (each) Stock
FN108047L NUT - HEX. $1.10 To Order
Photo Part No Description Price (each) Stock
FS108256 BOLT $3.56 IN STOCK
Photo Part No Description Price (each) Stock
DYP101310 SCREW $16.51 To Order
Photo Part No Description Price (each) Stock
RYF500130 SPACER $167.75 To Order
Photo Part No Description Price (each) Stock
KTI000017 WINCH $97.77 To Order
LR010453 WINCH $140.08 To Order
Photo Part No Description Price (each) Stock
RRY500120 STUD PLATE $35.98 To Order
Photo Part No Description Price (each) Stock
RRY500140 BRACKET $58.86 To Order
RRY500210 BRACKET $60.58 To Order
Photo Part No Description Price (each) Stock
RRY500150 BRACKET $58.86 To Order
RRY500200 BRACKET $60.58 To Order
Photo Part No Description Price (each) Stock
RRY500010 PANEL - VALANCE $178.68 To Order
Photo Part No Description Price (each) Stock
RRY500070 PANEL - VALANCE $58.86 To Order
View All

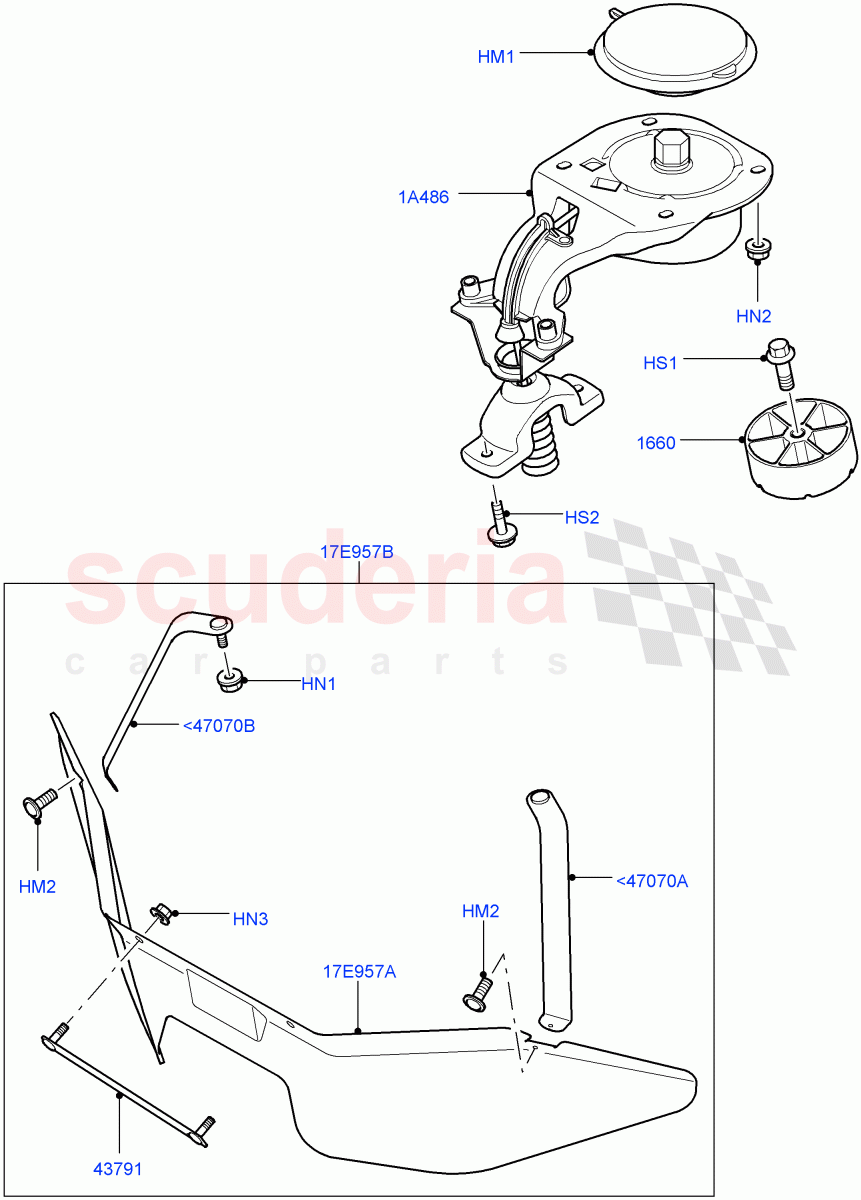

Spare Wheel Carrier ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<47070A RRY500140
BRACKET
LH / To: 8A142900 		$58.86 1
<47070A RRY500210
BRACKET
LH / From: 8A142901 		$60.58 1
<47070B RRY500150
BRACKET
RH / To: 8A142900 		$58.86 1
<47070B RRY500200
BRACKET
RH / From: 8A142901 		$60.58 1
HM1 KTO000013
GROMMET
Grommet 		$20.06 1
HM2 RV612183
RIVET
Rivet 		$7.54 2
HN1 ADU7048
NUT - FLANGED
M8 		$13.34 4
HN2 RYH500420
NUT AND WASHER - HEX.
M6
IN STOCK 		$0.44 4
HN3 FN108047L
NUT - HEX.
M8 		$1.10 2
HS1 FS108256
BOLT
M8 X 25MM
IN STOCK 		$3.56 4
HS2 DYP101310
SCREW
M6 x 30MM 		$16.51 2
1A486 KTI000017
WINCH
To: 8A193901 		$97.77 1
1A486 LR010453
WINCH
From: 8A193902 		$140.08 1
17E957A RRY500010
PANEL - VALANCE 		$178.68 1
17E957B RRY500070
PANEL - VALANCE
Assembly not available. Please order components. 		$58.86 1
1660 RYF500130
SPACER 		$167.75 4
43791 RRY500120
STUD PLATE 		$35.98 1
