Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Front Axle Case ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
KYG000230 BOLT $3.22 IN STOCK
Photo Part No Description Price (each) Stock
FC114207 BOLT $3.68 To Order
KYG500330 BOLT $7.19 To Order
FC114206 BOLT $8.14 To Order
Photo Part No Description Price (each) Stock
KYG000240 BOLT $10.04 To Order
Photo Part No Description Price (each) Stock
FY110056 NUT $4.25 IN STOCK
Photo Part No Description Price (each) Stock
TYP500090 SCREW $12.86 To Order
Photo Part No Description Price (each) Stock
TYP500100 SCREW $1.17 IN STOCK
Photo Part No Description Price (each) Stock
TAU500080 SUPPORT $163.28 To Order
Photo Part No Description Price (each) Stock
LR019450 VALVE - VENT $21.41 To Order
Photo Part No Description Price (each) Stock
TAG500140 DIFFERENTIAL - FRONT $3,730.52 To Order
TAG500160 DIFFERENTIAL - FRONT $3,730.52 To Order
LR006011 FRONT - AXLE ASSY $942.70 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
TYB500110 PLUG - OIL DRAIN $4.55 To Order
Photo Part No Description Price (each) Stock
LR158113 SEAL - OIL $22.83 To Order
Photo Part No Description Price (each) Stock
TYX500040 SEAL $12.47 To Order
Photo Part No Description Price (each) Stock
TAP500081 HOSE - VENT $18.50 To Order
TAP500130 HOSE - VENT $29.40 To Order
TAP500120 PIPE $28.23 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
TYB500060 PLUG - FILLER $3.52 To Order
Photo Part No Description Price (each) Stock
TAU500070 BRACKET $101.09 To Order
Photo Part No Description Price (each) Stock
KQB000152 INSULATOR - DIFFERENTIAL $16.24 To Order
Photo Part No Description Price (each) Stock
KQB000133 INSULATOR - DIFFERENTIAL $133.60 To Order
Photo Part No Description Price (each) Stock
KQB500151 INSULATOR - DIFFERENTIAL $141.71 To Order
Photo Part No Description Price (each) Stock
LR019019 SEAL - SPECIAL $19.67 To Order
View All

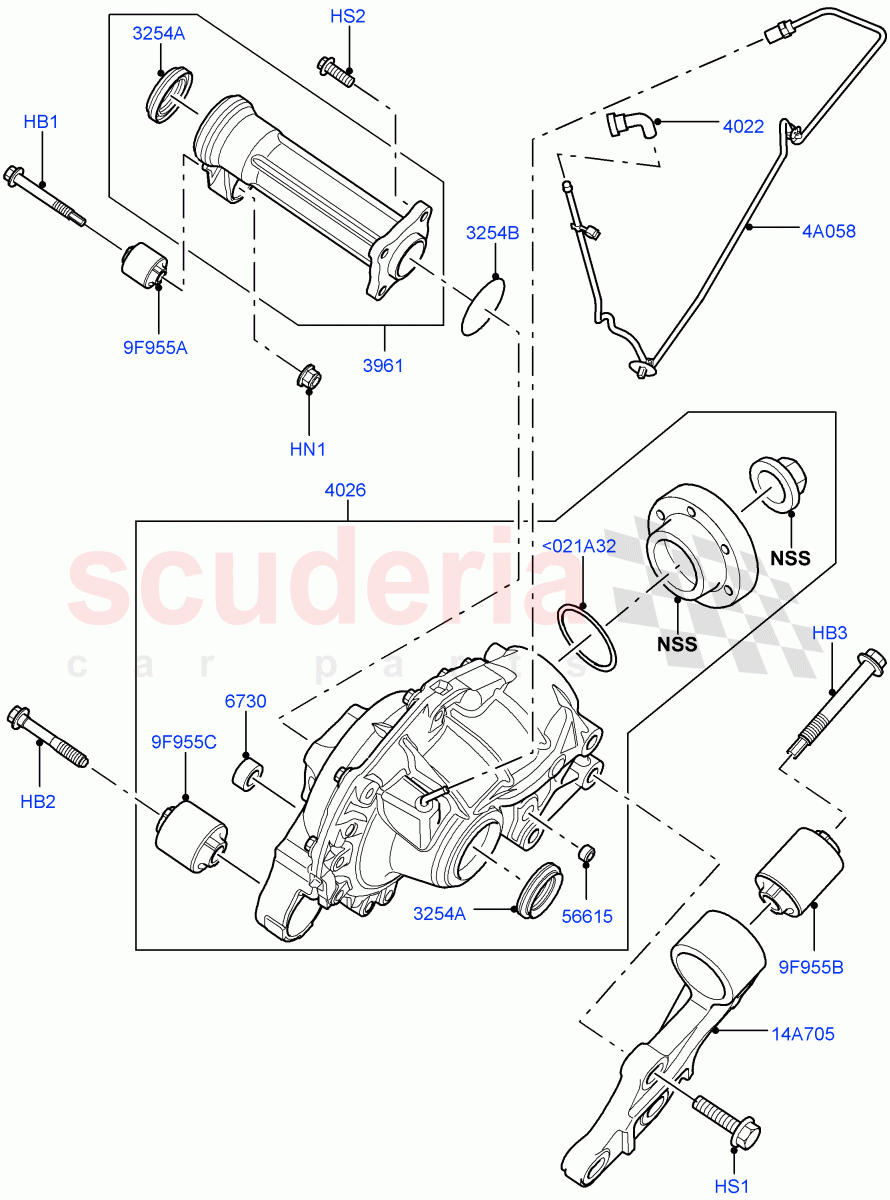

Front Axle Case ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<021A32 LR019019
SEAL - SPECIAL 		$19.67 1
HB1 KYG000230
BOLT
Hexagonal Head, M10 x 70MM
IN STOCK 		$3.22 1
HB2 FC114207
BOLT
M14 x 100MM / To: 6A914409 		$3.68 1
HB2 KYG500330
BOLT
M14 X 95MM / From: 6A914410 / To: 7A108443 		$7.19 1
HB2 FC114206
BOLT
Hexagonal Head, M14 x 100MM / From: 7A108444 		$8.14 2
HB3 KYG000240
BOLT
M16 X 120MM 		$10.04 1
HN1 FY110056
NUT
M10
IN STOCK 		$4.25 1
HS1 TYP500090
SCREW
Hexagonal Head, M14 x 50MM 		$12.86 3
HS2 TYP500100
SCREW
Hexagonal Head, M10 X 30MM
IN STOCK 		$1.17 4
4A058 TAP500081
HOSE - VENT
AJ Petrol 4.4 V8 EFI (220KW) / Breather, Required When Re-Fitting Axle/Drive Unit / To: 7A116189 		$18.50 1
4A058 TAP500130
HOSE - VENT
Lion Diesel 2.7 V6 (140KW) / Breather, Required When Re-Fitting Axle/Drive Unit / From: 7A116190 		$29.40 1
4A058 TAP500120
PIPE
3.6L V8 32V DOHC EFi Diesel Lion / Breather / From: 7A000001 / To: 7A116189 		$28.23 1
4A058 TAP500140
HOSE
3.6L V8 32V DOHC EFi Diesel Lion / Breather / From: 7A116190 		$36.90 1
9F955A KQB000152
INSULATOR - DIFFERENTIAL 		$16.24 1
9F955B KQB000133
INSULATOR - DIFFERENTIAL 		$133.60 1
9F955C KQB500151
INSULATOR - DIFFERENTIAL 		$141.71 1
14A705 TAU500070
BRACKET 		$101.09 1
3254A LR158113
SEAL - OIL
Driveshaft 		$22.83 2
3254B TYX500040
SEAL 		$12.47 1
3961 TAU500080
SUPPORT 		$163.28 1
4022 LR019450
VALVE - VENT 		$21.41 1
4026 TAG500140
DIFFERENTIAL - FRONT
AJ Petrol 4.2 V8 Supercharged, Automatic Transmission / Also Order Breather Hose In Addition To This Item, New Part-Please Check For Reman Version 		$3,730.52 1
4026 TAG500160
DIFFERENTIAL - FRONT
AJ Petrol 4.4 V8 EFI (220KW), Automatic Transmission / Also Order Breather Hose In Addition To This Item, New Part-Please Check For Reman Version / To: 8A999999 		$3,730.52 1
4026 LR006011
FRONT - AXLE ASSY
AJ Petrol 4.2 V8 Supercharged, Automatic Transmission / Also Order Breather Hose In Addition To This Item, Remanufactured Part 		$942.70 1
4026 LR009478
AXLE ASSEMBLY FRONT
AJ Petrol 4.4 V8 EFI (220KW), Automatic Transmission / Also Order Breather Hose In Addition To This Item, Remanufactured Part 		$961.38 1
4026 LR055677
DIFFERENTIAL - FRONT
AJ Petrol 4.4 V8 EFI (220KW), Automatic Transmission / Also Order Breather Hose In Addition To This Item, New Part-Please Check For Reman Version / From: 9A000001 		$3,730.52 1
6730 TYB500110
PLUG - OIL DRAIN
Drain Plug, Plug - Oil Drain 		$4.55 1
56615 TYB500060
PLUG - FILLER
Filler Plug 		$3.52 1
