Exhaust Manifold (Lion Diesel 2.7 V6 (140Kw)) ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Exhaust Manifold (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LYG500220 BOLT $1.40 To Order
Photo Part No Description Price (each) Stock
LYG500210 BOLT - HEX.HEAD $14.22 To Order
LYG500280 BOLT - HEX.HEAD $2.08 To Order
Photo Part No Description Price (each) Stock
1003736 SPACER $4.26 To Order
Photo Part No Description Price (each) Stock
LR106277 NUT - HEX. - FLANGED $2.17 IN STOCK
Photo Part No Description Price (each) Stock
FS108187 SCREW - SOCKET HEAD CAP $0.77 To Order
FS108186 SCREW - SOCKET HEAD CAP $2.25 To Order
Photo Part No Description Price (each) Stock
1357627 STUD $2.53 IN STOCK
Photo Part No Description Price (each) Stock
LR113358 STUD $4.43 To Order
Photo Part No Description Price (each) Stock
1336543 GASKET - EXHAUST MANIFOLD $19.89 To Order
Photo Part No Description Price (each) Stock
1331259 GASKET $15.13 To Order
Photo Part No Description Price (each) Stock
1357035 PIPE $617.75 To Order
Photo Part No Description Price (each) Stock
1334641 MANIFOLD - EXHAUST $78.54 To Order
Photo Part No Description Price (each) Stock
1334640 MANIFOLD - EXHAUST $82.86 To Order
Photo Part No Description Price (each) Stock
LWQ500050 SHIELD $15.65 To Order
Photo Part No Description Price (each) Stock
WCU500130 BRACKET - EXHAUST PIPE MOUNTING $87.80 To Order
Photo Part No Description Price (each) Stock
WCU500160 BRACKET $19.73 To Order
Photo Part No Description Price (each) Stock
WCU500190 BRACKET $22.21 To Order
Photo Part No Description Price (each) Stock
1339251 HEAT SHIELD $17.23 To Order
1387382 Heat Shield Enquire To Order
LR002482 HEAT SHIELD $43.52 To Order
Photo Part No Description Price (each) Stock
1331358 HEAT SHIELD $24.02 To Order
1387385 HEAT SHIELD $22.74 To Order
Photo Part No Description Price (each) Stock
LWQ500060 SHIELD - EXHAUST MANIFOLD HEAT $23.26 To Order
LR009325 SHIELD - EXHAUST MANIFOLD HEAT $15.26 To Order
View All

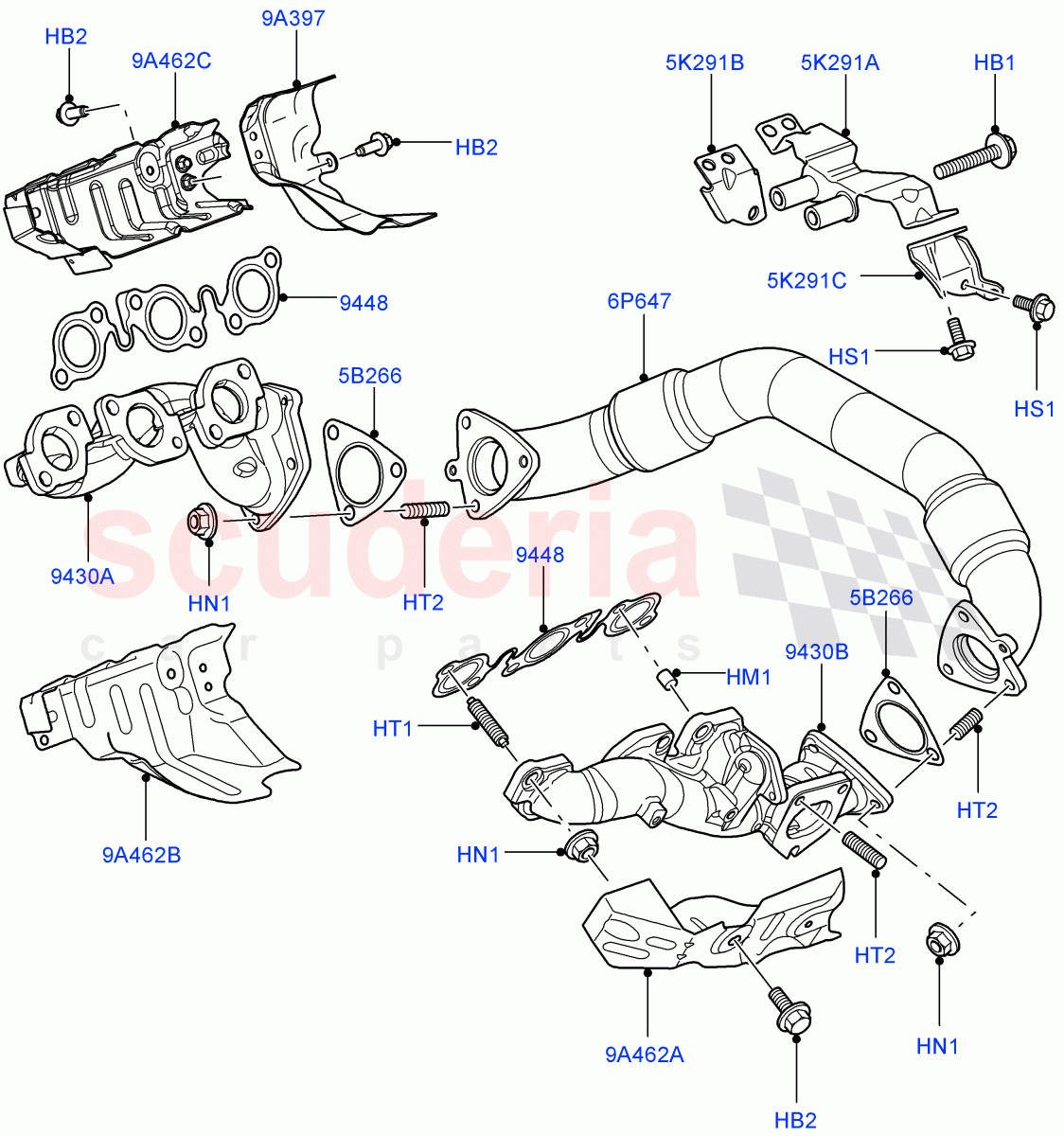

Exhaust Manifold (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LYG500220
BOLT
Hexagonal Head, M8 X 56MM 		$1.40 2
HB2 LYG500210
BOLT - HEX.HEAD
M6 X 8MM / To: 5A999999 		$14.22 4
HB2 LYG500280
BOLT - HEX.HEAD
M6 X 14MM / From: 6A000001 		$2.08 6
HM1 1003736
SPACER
8.5 x 10MM, Spacer For Exhaust Manifold Bolt 		$4.26 2
HN1 LR106277
NUT - HEX. - FLANGED
M8
IN STOCK 		$2.17 18
HS1 FS108187
SCREW - SOCKET HEAD CAP
M8 X 18MM / To: 6A999999 		$0.77 6
HS1 FS108186
SCREW - SOCKET HEAD CAP
M8 x 18MM / From: 7A000001 		$2.25 6
HT1 1357627
STUD
M8 X 17 + M8 X 19
IN STOCK 		$2.53 12
HT2 LR113358
STUD
M8 X 16MM, M8 x 8MM 		$4.43 8
5B266 1331259
GASKET 		$15.13 2
5K291A WCU500130
BRACKET - EXHAUST PIPE MOUNTING
Centre, For Exhaust Crossover Pipe 		$87.80 1
5K291B WCU500160
BRACKET
6 Speed Auto ZF 6HP26 Steptronic / RH 		$19.73 1
5K291C WCU500190
BRACKET
6 Speed Auto ZF 6HP26 Steptronic / LH 		$22.21 1
6P647 1357035
PIPE 		$617.75 1
9A397 LWQ500050
SHIELD 		$15.65 1
9A462A 1339251
HEAT SHIELD
To: 6A916350 		$17.23 1
9A462A 1387382
Heat Shield
From: 6A916351 / To: 6A999999 		- 1 Enquire
9A462A LR002482
HEAT SHIELD
From: 7A000001 		$43.52 1
9A462B 1331358
HEAT SHIELD
To: 6A916350 		$24.02 1
9A462B 1387385
HEAT SHIELD
From: 6A916351 		$22.74 1
9A462C LWQ500060
SHIELD - EXHAUST MANIFOLD HEAT
To: 8A180793 		$23.26 1
9A462C LR009325
SHIELD - EXHAUST MANIFOLD HEAT
Exhaust Manifold, RH Front / From: 8A180794 		$15.26 1
9430A 1334641
MANIFOLD - EXHAUST
RH 		$78.54 1
9430B 1334640
MANIFOLD - EXHAUST
LH 		$82.86 1
9448 1336543
GASKET - EXHAUST MANIFOLD
Exhaust Manifold 		$19.89 2
