Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Cylinder Head (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

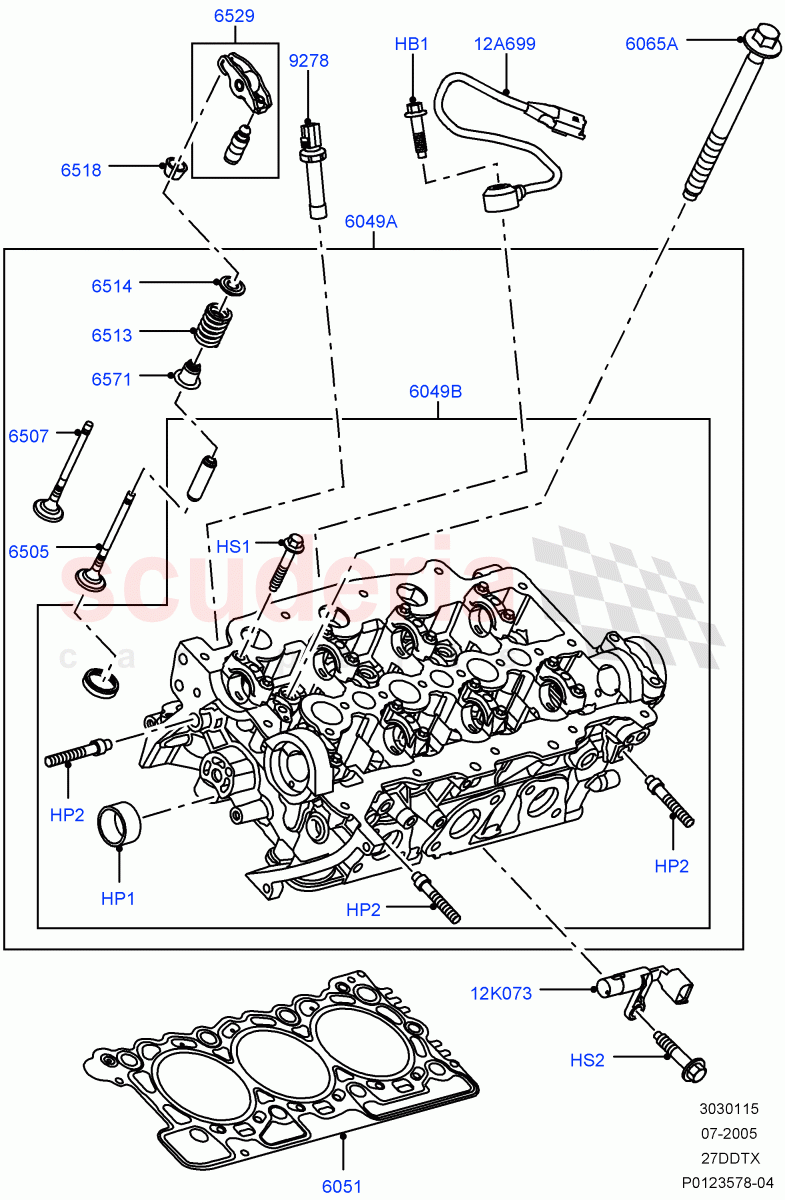

Cylinder Head (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 6746838
BOLT - HEX.HEAD
M8 x 30MM 		$0.76 2
HP1 1102774
PLUG - ENGINE
22MM 		$6.55 4
HP2 4185951
PLUG - EXPANSION
O = 10MM / To: 9A666665 		$1.16 7
HP2 1331356
PLUG - EXPANSION 		$2.02 -
HP2 LR029603
PLUG - EXPANSION
O = 10MM / From: 9A666666 		$2.46 7
HS1 7062845
SCREW
M6 x 35MM 		$3.03 36
HS2 6729404
SCREW
M6 X 20MM 		$0.76 1
12A699 LR007808
SENSOR - ENGINE KNOCK
To: 6A999999
IN STOCK 		$124.88 2
12A699 LR007808
SENSOR - ENGINE KNOCK
Euro Consolidated Directive 3 / From: 7A000001
IN STOCK 		$124.88 2
12K073 LR019287
SENSOR - CAMSHAFT POSITION
Camshaft Position Sensor / To: 6A999999 		$312.18 2
12K073 LR005252
SENSOR - CAMSHAFT POSITION
Camshaft Position Sensor / From: 7A000001 		$151.49 2
6049A 1311302
CYLINDER HEAD
RH, With Valves 		$1,996.31 1
6049A 1311303
CYLINDER HEAD
LH, With Valves 		$1,996.31 1
6049B 1357023
CYLINDER HEAD
RH / To: 6A999999 		$2,571.04 1
6049B 1357030
CYLINDER HEAD
LH / To: 6A999999 		$805.44 1
6049B LR004062
CYLINDER HEAD
RH / From: 7A000001 / To: 9A194475 		$2,016.45 1
6049B LR004063
CYLINDER HEAD
LH / From: 7A000001 / To: 9A194475 		$2,056.75 1
6049B LR012732
CYLINDER HEAD
RH, Less Valves / From: 9A194476 		$2,760.64 1
6049B LR012733
CYLINDER HEAD
LH, Less Valves / From: 9A194476 		$2,760.64 1
6051 1348677
GASKET-CYLINDER HEAD
Grade 1 / To: 9A190673 		$48.76 -
6051 1348681
GASKET-CYLINDER HEAD
Grade 2 / To: 9A190673 		$22.34 -
6051 1348683
GASKET-CYLINDER HEAD
Grade 3 / To: 9A190673 		$21.91 -
6051 1348686
GASKET-CYLINDER HEAD
Grade 4 / To: 9A190673 		$24.14 -
6051 1348688
GASKET-CYLINDER HEAD
Grade 5 / To: 9A190673 		$21.91 -
6051 LR009719
GASKET - CYLINDER HEAD
Grade 2 / From: 9A190674 		$96.14 -
6051 LR009721
GASKET - CYLINDER HEAD
Grade 3 / From: 9A190674 		$96.14 -
6051 LR009722
GASKET - CYLINDER HEAD
Grade 4 / From: 9A190674 		$96.14 -
6051 LR009723
GASKET-CYLINDER HEAD
Grade 5 / From: 9A190674 		$96.14 -
6065A 1331316
BOLT - CYLINDER HEAD
M13 X 155 		$4.47 16
6505 1316137
VALVE - EXHAUST
To: 8A149462 		$14.80 12
6505 LR008130
VALVE - EXHAUST
From: 8A149463 		$32.47 12
6507 1311281
VALVE - INLET 		$21.63 12
6513 1311282
SPRING - VALVE
To: 8A136253 		$6.76 24
6513 LR006720
SPRING - VALVE
From: 8A136254 		$7.45 24
6514 1311283
RETAINER - VALVE SPRING 		$3.89 24
6518 1072051
COLLET - VALVE SPRING RETAINER 		$7.37 48
6529 1336545
ARM - FOLLOWER 		$33.67 12
6571 1311285
SEAL - VALVE STEM 		$13.99 24
9278 1316119
SWITCH - OIL PRESSURE
From: 6A000001 		$28.79 1
9278 LR000281
SWITCH - OIL PRESSURE
To: 5A999999 		$18.06 1
