Fuel Lines (2.0L Aj20P4 Petrol E100 Pta, Halewood (Uk), Pet Tank - Flex Fuel) ((V) Fromlh033495)

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] - Fuel Lines (2.0L AJ20P4 Petrol E100 PTA, Halewood (UK), Pet Tank - Flex Fuel) ((V) FROMLH033495)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500200 BOLT $0.66 To Order
Photo Part No Description Price (each) Stock
LR105597 CLIP $5.93 To Order
Photo Part No Description Price (each) Stock
LR050522 CLIP - HOSE $3.63 IN STOCK
Photo Part No Description Price (each) Stock
LR113126 CLIP - BRAKE PIPE $0.61 To Order
Photo Part No Description Price (each) Stock
RYH500570 NUT - ADJUSTING $2.85 To Order
Photo Part No Description Price (each) Stock
RYG500470 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.60 IN STOCK
Photo Part No Description Price (each) Stock
LR089197 STUD $3.99 To Order
Photo Part No Description Price (each) Stock
LR167098 FILTER - FUEL $72.16 To Order
Photo Part No Description Price (each) Stock
LR126837 BRACKET $32.68 To Order
Photo Part No Description Price (each) Stock
LR126839 TUBE - FUEL $54.56 To Order
Photo Part No Description Price (each) Stock
LR126841 FUEL PUMP AND FILTER $431.19 To Order
Photo Part No Description Price (each) Stock
LR117825 SHIELD - FUEL TUBES $82.03 To Order
LR133032 SHIELD - FUEL TUBES $80.23 To Order
Photo Part No Description Price (each) Stock
LR139136 PIPE - FUEL $270.72 To Order
LR139953 PIPE - FUEL $283.32 To Order
LR126842 PIPE - FUEL $213.63 To Order
Photo Part No Description Price (each) Stock
LR126843 TUBE - INJECTION PUMP LEAK-OFF $80.40 To Order
Photo Part No Description Price (each) Stock
LR115337 PIPE - FUEL $188.94 To Order
LR139954 PIPE - FUEL $125.32 To Order
Photo Part No Description Price (each) Stock
LR115338 TUBE - FUEL $189.94 To Order
Photo Part No Description Price (each) Stock
LR126845 BRACKET - FUEL TUBE SUPPORT $33.02 To Order
Photo Part No Description Price (each) Stock
LR113753 SENSOR - FUEL QUALITY $176.71 To Order
Photo Part No Description Price (each) Stock
LR115399 SHIELD - FUEL TUBES $44.13 To Order
Photo Part No Description Price (each) Stock
LR117831 CLIP $3.59 To Order
Photo Part No Description Price (each) Stock
LR126844 TUBE - FUEL SUPPLY AND VAPOUR $175.08 To Order
Photo Part No Description Price (each) Stock
LR126491 TUBE - FUEL SUPPLY AND VAPOUR $181.67 To Order
LR162697 TUBE - FUEL VAPOUR $200.42 To Order
Photo Part No Description Price (each) Stock
LR115331 TUBE - AUXILIARY HEATER SUPPLY $42.62 To Order
Photo Part No Description Price (each) Stock
LR115332 TUBE - FUEL SUPPLY $39.94 To Order
View All

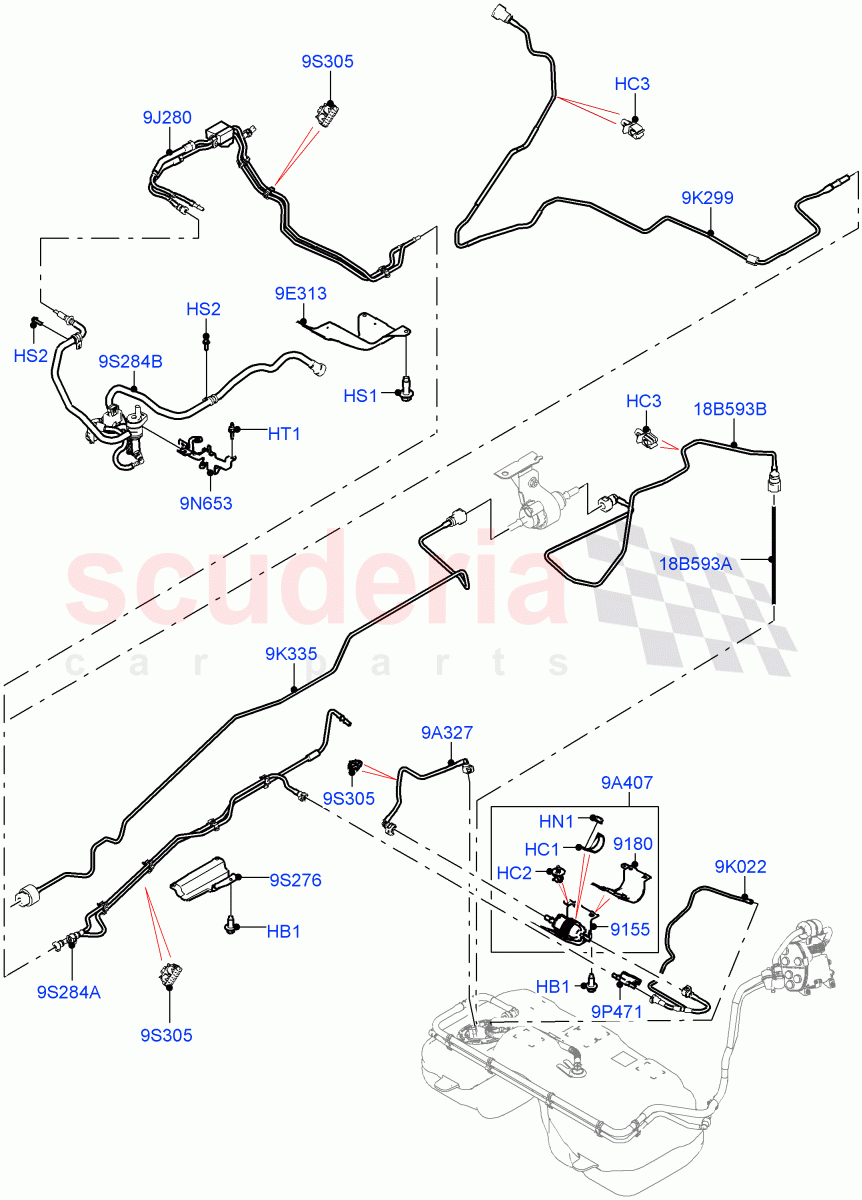

Fuel Lines (2.0L AJ20P4 Petrol E100 PTA, Halewood (UK), Pet Tank - Flex Fuel) ((V) FROMLH033495) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500200
BOLT
Hexagonal Head, M8 X 16MM / From: LH000001 		$0.66 5
HC1 LR105597
CLIP
From: LH000001 		$5.93 1
HC2 LR050522
CLIP - HOSE
Clip 8-9X6.5X1.5-5 / From: LH000001
IN STOCK 		$3.63 2
HC3 LR113126
CLIP - BRAKE PIPE
Fuel Heater W/Pk Heat With Remote / 4.75X8X0.8-4, Fuel Fired Heater Pipe, Single / From: LH000001 		$0.61 6
HN1 RYH500570
NUT - ADJUSTING
M6 / From: LH000001 		$2.85 1
HS1 RYG500470
SCREW
Hexagonal Head, M10 X 25MM / From: LH000001 		$0.61 3
HS2 LR073655
SCREW
Hexagonal Head, M6 X 20MM / From: LH000001
IN STOCK 		$1.60 2
HT1 LR089197
STUD
M6 x 22 mm + M6 x 12 mm / From: LH000001 		$3.99 1
9A327 LR126839
TUBE - FUEL
From: LH000001 		$54.56 1
9A407 LR126841
FUEL PUMP AND FILTER
From: LH000001 		$431.19 1
9E313 LR117825
SHIELD - FUEL TUBES
Front / From: LH000001 / To: LH071806 		$82.03 1
9E313 LR133032
SHIELD - FUEL TUBES
Front / From: LH071807 		$80.23 1
9J280 LR139136
PIPE - FUEL
Front / From: LH072005 / To: LH999999 		$270.72 1
9J280 LR139953
PIPE - FUEL
Front / From: MH000001 		$283.32 1
9J280 LR126842
PIPE - FUEL
Front / From: LH000001 / To: LH072004 		$213.63 1
9K022 LR126843
TUBE - INJECTION PUMP LEAK-OFF
Leak Off / From: LH000001 		$80.40 1
9K299 LR115337
PIPE - FUEL
Fuel Heater W/Pk Heat With Remote / To Fuel Fired Heater / From: LH000001 / To: LH999999 		$188.94 1
9K299 LR139954
PIPE - FUEL
With Fuel Fired Heater / To Fuel Fired Heater / From: MH000001 		$125.32 1
9K335 LR115338
TUBE - FUEL
Fuel Heater W/Pk Heat With Remote / Pump To Heater / From: LH000001 		$189.94 1
9N653 LR126845
BRACKET - FUEL TUBE SUPPORT
Purge Valve To Carrier / From: LH000001 		$33.02 1
9P471 LR113753
SENSOR - FUEL QUALITY
From: LH000001 		$176.71 1
9S276 LR115399
SHIELD - FUEL TUBES
Rear / From: LH000001 		$44.13 1
9S284A LR126844
TUBE - FUEL SUPPLY AND VAPOUR
Rear / From: LH000001 		$175.08 1
9S284B LR126491
TUBE - FUEL SUPPLY AND VAPOUR
Front / From: LH000001 / To: MH160900 		$181.67 1
9S284B LR162697
TUBE - FUEL VAPOUR
Front / From: MH160901 		$200.42 1
9S305 LR117831
CLIP
Clip-Fuel Tube(Dual Latch) / From: LH000001 		$3.59 8
18B593A LR115331
TUBE - AUXILIARY HEATER SUPPLY
Fuel Heater W/Pk Heat With Remote / In Tank / From: LH000001 		$42.62 1
18B593B LR115332
TUBE - FUEL SUPPLY
With Fuel Fired Heater / Tank To Pump / From: LH000001 		$39.94 1
9155 LR167098
FILTER - FUEL
From: LH000001 		$72.16 1
9180 LR126837
BRACKET
From: LH000001 		$32.68 1
