Fuel Lines (2.0L Aj20P4 Petrol Mid Pta, Halewood (Uk), 2.0L Aj20P4 Petrol High Pta) ((V) Tolh033494)

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] - Fuel Lines (2.0L AJ20P4 Petrol Mid PTA, Halewood (UK), 2.0L AJ20P4 Petrol High PTA) ((V) TOLH033494)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500200 BOLT $0.67 To Order
Photo Part No Description Price (each) Stock
LR113126 CLIP - BRAKE PIPE $0.61 To Order
Photo Part No Description Price (each) Stock
RYG500470 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
LR117825 SHIELD - FUEL TUBES $82.22 To Order
LR133032 SHIELD - FUEL TUBES $80.42 To Order
Photo Part No Description Price (each) Stock
LR139134 PIPE - FUEL $223.12 To Order
LR115335 PIPE - FUEL $188.00 To Order
Photo Part No Description Price (each) Stock
LR115337 PIPE - FUEL $189.39 To Order
Photo Part No Description Price (each) Stock
LR115338 TUBE - FUEL $190.39 To Order
Photo Part No Description Price (each) Stock
LR126243 BRACKET $35.91 To Order
Photo Part No Description Price (each) Stock
LR115399 SHIELD - FUEL TUBES $44.24 To Order
Photo Part No Description Price (each) Stock
LR117831 CLIP $3.60 To Order
Photo Part No Description Price (each) Stock
LR115401 TUBE - FUEL SUPPLY AND VAPOUR $216.34 To Order
LR135720 TUBE - FUEL SUPPLY AND VAPOUR $217.87 To Order
Photo Part No Description Price (each) Stock
LR094430 TUBE - FUEL SUPPLY AND VAPOUR $182.41 To Order
Photo Part No Description Price (each) Stock
LR115331 TUBE - AUXILIARY HEATER SUPPLY $42.72 To Order
Photo Part No Description Price (each) Stock
LR115332 TUBE - FUEL SUPPLY $40.04 To Order
View All

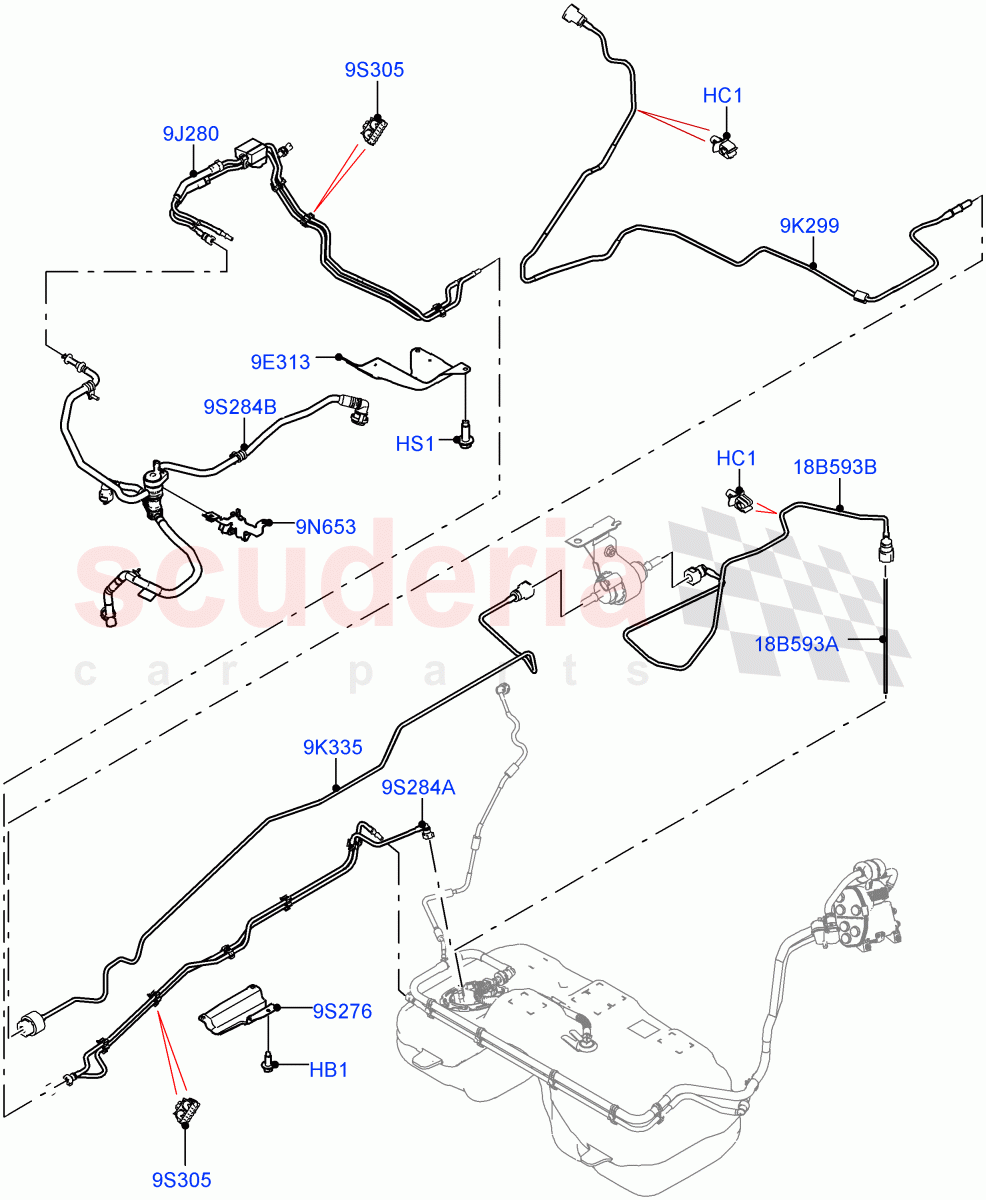

Fuel Lines (2.0L AJ20P4 Petrol Mid PTA, Halewood (UK), 2.0L AJ20P4 Petrol High PTA) ((V) TOLH033494) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500200
BOLT
Hexagonal Head, M8 X 16MM 		$0.67 3
HC1 LR113126
CLIP - BRAKE PIPE
With Fuel Fired Heater / 4.75X8X0.8-4, Fuel Fired Heater Pipe, Single 		$0.61 6
HS1 RYG500470
SCREW
Hexagonal Head, M10 X 25MM 		$0.61 3
9E313 LR117825
SHIELD - FUEL TUBES
Front / To: LH071806 		$82.22 1
9E313 LR133032
SHIELD - FUEL TUBES
Front / From: LH071807 		$80.42 1
9J280 LR139134
PIPE - FUEL
Front / From: LH072005 		$223.12 1
9J280 LR115335
PIPE - FUEL
Front / To: LH072004 		$188.00 1
9K299 LR115337
PIPE - FUEL
With Fuel Fired Heater / To Fuel Fired Heater 		$189.39 1
9K335 LR115338
TUBE - FUEL
With Fuel Fired Heater / Pump To Heater 		$190.39 1
9N653 LR126243
BRACKET
Purge Valve To Carrier 		$35.91 1
9S276 LR115399
SHIELD - FUEL TUBES
Rear 		$44.24 1
9S284A LR115401
TUBE - FUEL SUPPLY AND VAPOUR
Rear / To: LH067401 		$216.34 1
9S284A LR135720
TUBE - FUEL SUPPLY AND VAPOUR
Rear / From: LH067402 		$217.87 1
9S284B LR094430
TUBE - FUEL SUPPLY AND VAPOUR
Front 		$182.41 1
9S305 LR117831
CLIP
Clip-Fuel Tube(Dual Latch) 		$3.60 8
18B593A LR115331
TUBE - AUXILIARY HEATER SUPPLY
With Fuel Fired Heater / In Tank 		$42.72 1
18B593B LR115332
TUBE - FUEL SUPPLY
With Fuel Fired Heater / Tank To Pump 		$40.04 1
