Intercooler/Air Ducts And Hoses (2.0L Aj20P4 Petrol High Pta, Halewood (Uk), 2.0L Aj20P4 Petrol...

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] - Intercooler/Air Ducts And Hoses (2.0L AJ20P4 Petrol High PTA, Halewood (UK), 2.0L AJ20P4 Petrol...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR033002 BOLT AND WASHER - TORX HEAD $1.51 To Order
Photo Part No Description Price (each) Stock
LR001080 BOLT $1.37 IN STOCK
Photo Part No Description Price (each) Stock
FS108166 BOLT $0.68 IN STOCK
Photo Part No Description Price (each) Stock
FB108106 BOLT $10.96 To Order
Photo Part No Description Price (each) Stock
LR045542 NUT $1.37 To Order
Photo Part No Description Price (each) Stock
RYP500810 SCREW $0.63 To Order
Photo Part No Description Price (each) Stock
FS108186 SCREW - SOCKET HEAD CAP $2.25 To Order
Photo Part No Description Price (each) Stock
LR048608 STUD $3.85 To Order
Photo Part No Description Price (each) Stock
LR126503 DUCT - AIR $176.54 To Order
Photo Part No Description Price (each) Stock
LR114113 BRACKET - CHARGE AIR COOLER $74.69 To Order
Photo Part No Description Price (each) Stock
LR093490 ACTUATOR - SUPERCHARGER BYPASS $281.77 To Order
Photo Part No Description Price (each) Stock
LR094064 COOLER - ENGINE CHARGE AIR $530.12 To Order
LR139049 COOLER - ENGINE CHARGE AIR $601.13 To Order
Photo Part No Description Price (each) Stock
LR091865 SENSOR - AIR TEMPERATURE & PRESSURE $140.04 To Order
Photo Part No Description Price (each) Stock
LR126504 HOSE - AIR $157.82 To Order
Photo Part No Description Price (each) Stock
LR094067 DUCT - AIR INTAKE $160.08 To Order
LR133951 HOSE $144.94 To Order
View All

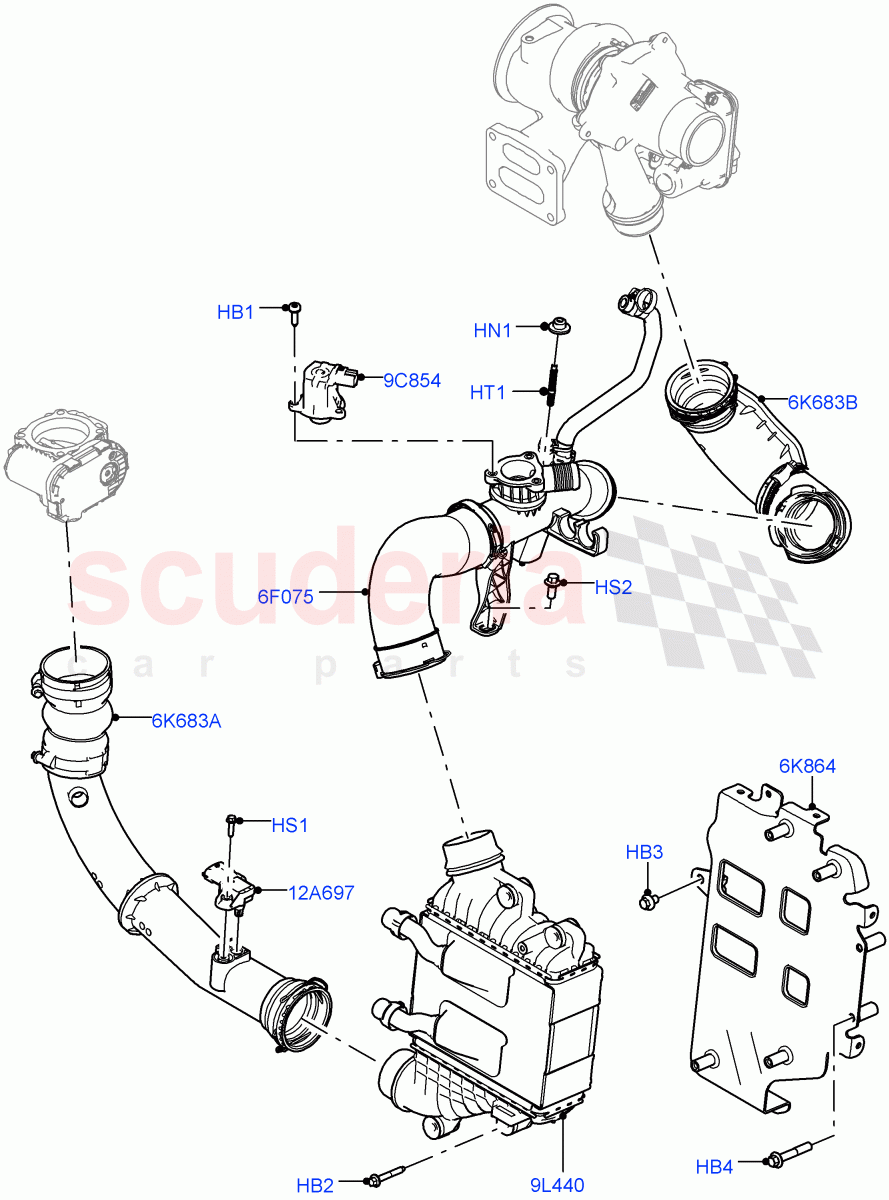

Intercooler/Air Ducts And Hoses (2.0L AJ20P4 Petrol High PTA, Halewood (UK), 2.0L AJ20P4 Petrol E100 PTA, 2.0L AJ20P4 Petrol Mid PTA) ((V) FROMLH033467) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR033002
BOLT AND WASHER - TORX HEAD
Actuator, M6 X 20.5, Torx / From: LH033467 		$1.51 3
HB2 LR001080
BOLT
Hexagonal Head, Intercooler, M6 X 40MM / From: LH033467
IN STOCK 		$1.37 4
HB3 FS108166
BOLT
Bracket, Hexagonal Head, M8 X 16MM, To Transmission / From: LH033467
IN STOCK 		$0.68 2
HB4 FB108106
BOLT
Bracket, Hexagonal Head, M8 x 50MM, To Transmission / From: LH033467 		$10.96 2
HN1 LR045542
NUT
M6, Nut And Washer / From: LH033467 		$1.37 1
HS1 RYP500810
SCREW
Hexagonal Head, M5 x 20MM, MAP Sensor / From: LH033467 		$0.63 1
HS2 FS108186
SCREW - SOCKET HEAD CAP
M8 x 18MM / From: LH033467 		$2.25 1
HT1 LR048608
STUD
M6 / From: LH033467 		$3.85 1
6F075 LR126503
DUCT - AIR
Intercooler Inlet / From: LH033467 		$176.54 1
6K683A LR126504
HOSE - AIR
Intercooler To Throttle Body / From: LH033467 		$157.82 1
6K683B LR094067
DUCT - AIR INTAKE
2.0L AJ20P4 Petrol E100 PTA / Turbocharger Outlet / From: LH033467 		$160.08 1
6K683B LR133951
HOSE
2.0L AJ20P4 Petrol High PTA / Turbocharger Outlet / From: LH033467 		$144.94 1
6K864 LR114113
BRACKET - CHARGE AIR COOLER
From: LH033467 		$74.69 1
9C854 LR093490
ACTUATOR - SUPERCHARGER BYPASS
From: LH033467 		$281.77 1
9L440 LR094064
COOLER - ENGINE CHARGE AIR
From: LH033467 / To: LH999999 		$530.12 1
9L440 LR139049
COOLER - ENGINE CHARGE AIR
From: MH000001 		$601.13 1
12A697 LR091865
SENSOR - AIR TEMPERATURE & PRESSURE
From: LH033467 		$140.04 1
