Name: Intercooler/Air Ducts And Hoses (2.0L AJ20P4 Petrol E100 PTA, Halewood (UK), 2.0L AJ20P4 Petrol High PTA, 2.0L AJ20P4 Petrol Mid PTA) ((V) TOLH033466)
Rating: 5.0 (1 reviews)

Intercooler/Air Ducts And Hoses (2.0L AJ20P4 Petrol E100 PTA, Halewood (UK), 2.0L AJ20P4 Petrol High PTA, 2.0L AJ20P4 Petrol Mid PTA) ((V) TOLH033466) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] - Intercooler/Air Ducts And Hoses (2.0L AJ20P4 Petrol E100 PTA, Halewood (UK), 2.0L AJ20P4 Petrol...

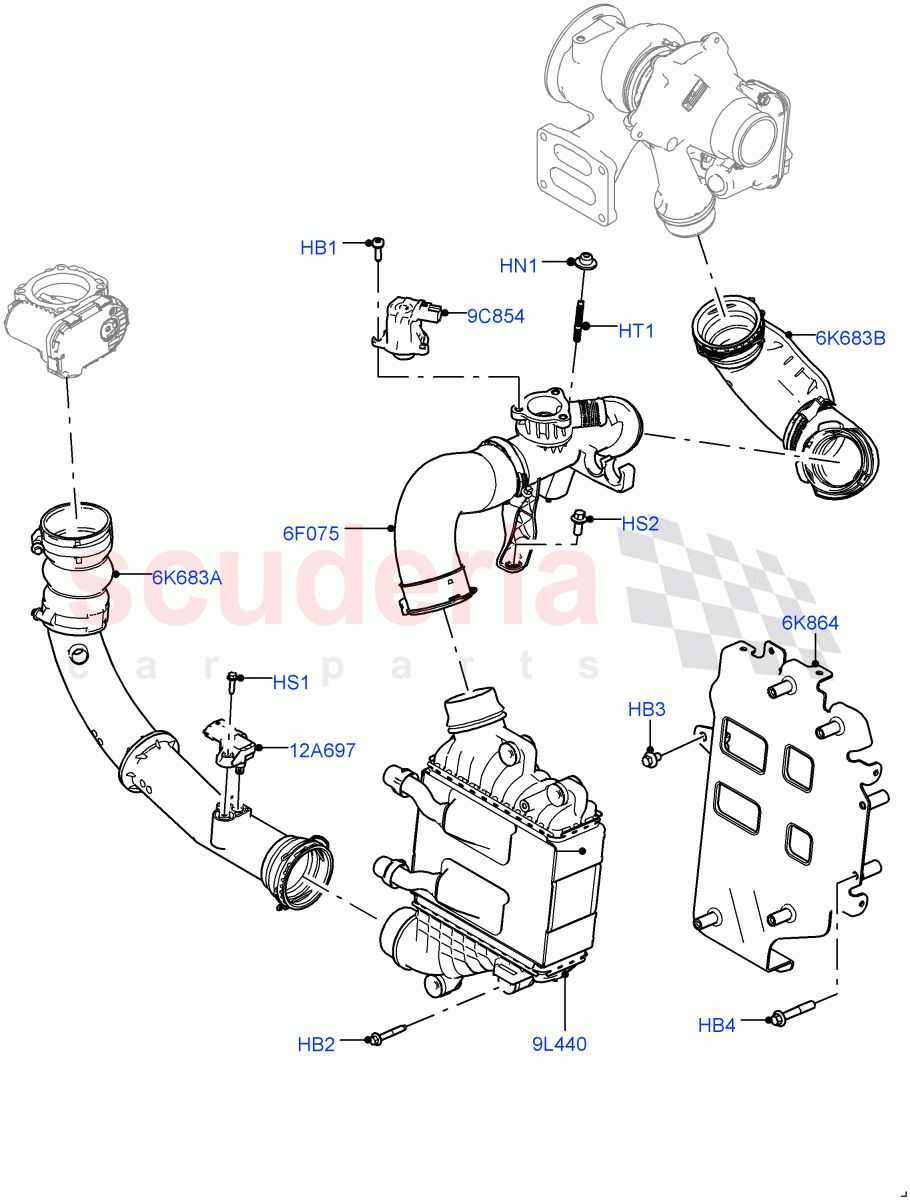

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR033002	BOLT AND WASHER - TORX HEAD	$1.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001080	BOLT	$1.37	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS108166	BOLT	$0.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FB108106	BOLT	$10.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045542	NUT	$1.37	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500810	SCREW	$0.62	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108186	SCREW - SOCKET HEAD CAP	$2.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048608	STUD	$3.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094068	HOSE - TURBOCHARGER OUTLET	$181.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114113	BRACKET - CHARGE AIR COOLER	$74.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093490	ACTUATOR - SUPERCHARGER BYPASS	$281.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094064	COOLER - ENGINE CHARGE AIR	$528.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091865	SENSOR - AIR TEMPERATURE & PRESSURE	$139.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094069	HOSE - INTERCOOLER	$259.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094067	DUCT - AIR INTAKE	$159.70	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR033002	BOLT AND WASHER - TORX HEAD	LR033002 BOLT AND WASHER - TORX HEAD Actuator, M6 X 20.5, Torx	$1.50	3
HB2	LR001080	BOLT IN STOCK	LR001080 BOLT Hexagonal Head, Intercooler, M6 X 40MM IN STOCK	$1.37	4
HB3	FS108166	BOLT IN STOCK	FS108166 BOLT Bracket, Hexagonal Head, M8 X 16MM, To Transmission IN STOCK	$0.68	2
HB4	FB108106	BOLT	FB108106 BOLT Bracket, Hexagonal Head, M8 x 50MM, To Transmission	$10.93	2
HN1	LR045542	NUT	LR045542 NUT M6, Nut And Washer	$1.37	1
HS1	RYP500810	SCREW	RYP500810 SCREW Hexagonal Head, M5 x 20MM, MAP Sensor	$0.62	1
HS2	FS108186	SCREW - SOCKET HEAD CAP	FS108186 SCREW - SOCKET HEAD CAP M8 x 18MM	$2.25	1
HT1	LR048608	STUD	LR048608 STUD M6	$3.84	1
6F075	LR094068	HOSE - TURBOCHARGER OUTLET	LR094068 HOSE - TURBOCHARGER OUTLET Intercooler Inlet	$181.88	1
6K683A	LR094069	HOSE - INTERCOOLER	LR094069 HOSE - INTERCOOLER Intercooler To Throttle Body	$259.84	1
6K683B	LR094067	DUCT - AIR INTAKE	LR094067 DUCT - AIR INTAKE Turbocharger Outlet	$159.70	1
6K864	LR114113	BRACKET - CHARGE AIR COOLER	LR114113 BRACKET - CHARGE AIR COOLER	$74.51	1
9C854	LR093490	ACTUATOR - SUPERCHARGER BYPASS	LR093490 ACTUATOR - SUPERCHARGER BYPASS	$281.10	1
9L440	LR094064	COOLER - ENGINE CHARGE AIR	LR094064 COOLER - ENGINE CHARGE AIR	$528.87	1
12A697	LR091865	SENSOR - AIR TEMPERATURE & PRESSURE	LR091865 SENSOR - AIR TEMPERATURE & PRESSURE	$139.71	1
