Rear Brake Discs And Calipers (Changsu (China), Disc And Caliper Size-Frt 18/Rr 17) ((V)...

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Rear Brake Discs And Calipers (Changsu (China), Disc And Caliper Size-Frt 18/RR 17) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR139520 BOLT $1.72 To Order
Photo Part No Description Price (each) Stock
LR042690 BOLT $6.09 IN STOCK
Photo Part No Description Price (each) Stock
RYP500920 SCREW $0.75 IN STOCK
Photo Part No Description Price (each) Stock
RYP500190 SCREW $0.65 IN STOCK
Photo Part No Description Price (each) Stock
RYG500160 SCREW $0.63 To Order
Photo Part No Description Price (each) Stock
LR018509 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR061096 SCREW - BLEED $7.09 To Order
Photo Part No Description Price (each) Stock
LR090701 SHIELD - BRAKE DISC SPLASH $82.20 To Order
LR090702 SHIELD - BRAKE DISC SPLASH $82.20 To Order
Photo Part No Description Price (each) Stock
LR139981 CALIPER - BRAKE $312.35 To Order
LR154996 CALIPER - BRAKE $323.10 To Order
Photo Part No Description Price (each) Stock
LR090821 GREASE - CHASSIS LUBRICATION $8.34 To Order
Photo Part No Description Price (each) Stock
LR062657 SPRING - BRAKE CALIPER $11.00 IN STOCK
Photo Part No Description Price (each) Stock
LR090706 BRACKET $95.83 To Order
Photo Part No Description Price (each) Stock
LR114564 DISC - BRAKE - SOLID $162.34 To Order
Photo Part No Description Price (each) Stock
LR027312 CAP - BLEED SCREW $1.32 IN STOCK
Photo Part No Description Price (each) Stock
LR090705 BOOT - BRAKE CALIPER $35.73 To Order
Photo Part No Description Price (each) Stock
LR123595 KIT - BRAKE LINING $90.99 To Order
Photo Part No Description Price (each) Stock
LR000751 KIT - CALIPER REPAIR $33.63 IN STOCK
Photo Part No Description Price (each) Stock
LR003977 KIT - RETAINING PIN $27.35 IN STOCK
Photo Part No Description Price (each) Stock
LR092060 WIRE - BRAKE PAD WEAR WARNING $40.84 To Order
Photo Part No Description Price (each) Stock
LR000760 COVER - DUST $8.81 To Order
Photo Part No Description Price (each) Stock
LR061399 BRACKET - WIRING $14.66 To Order
LR061401 BRACKET - WIRING $14.71 To Order
Photo Part No Description Price (each) Stock
LR092059 BRACKET - WIRING $11.00 To Order
LR092058 BRACKET - WIRING $11.00 To Order
Photo Part No Description Price (each) Stock
LR061398 BRACKET - WIRING $13.16 To Order
Photo Part No Description Price (each) Stock
LR066162 BRACKET - WIRING $12.82 To Order
LR066163 BRACKET - WIRING $12.92 To Order
View All

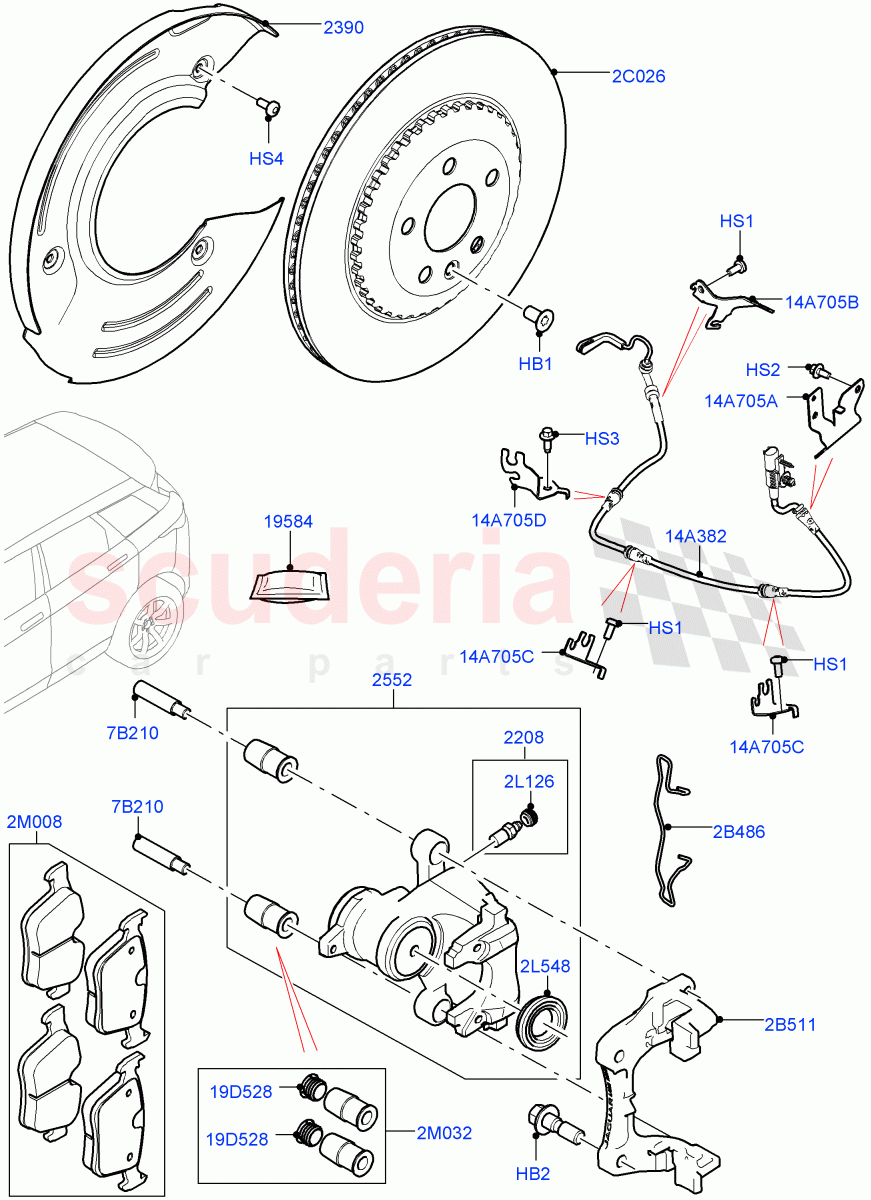

Rear Brake Discs And Calipers (Changsu (China), Disc And Caliper Size-Frt 18/RR 17) ((V) FROMMG575835) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR139520
BOLT
M8 X 12, Torx / From: MG575835 		$1.72 2
HB2 LR042690
BOLT
M12 x 36MM / From: MG575835
IN STOCK 		$6.09 4
HS1 RYP500920
SCREW
M6 X 14MM, Torx / From: MG575835
IN STOCK 		$0.75 6
HS2 RYP500190
SCREW
Hexagonal Head, M6 x 12MM / From: MG575835
IN STOCK 		$0.65 2
HS3 RYG500160
SCREW
Hexagonal Head, M6 X 14MM / From: MG575835 		$0.63 2
HS4 LR018509
SCREW
M6 X 10MM, Torx / From: MG575835
IN STOCK 		$1.24 6
2B486 LR062657
SPRING - BRAKE CALIPER
From: MG575835
IN STOCK 		$11.00 2
2B511 LR090706
BRACKET
With Non Painted Brake Calipers / RH/LH / From: MG575835 		$95.83 2
2C026 LR114564
DISC - BRAKE - SOLID
325MM / From: MG575835 		$162.34 2
2L126 LR027312
CAP - BLEED SCREW
From: MG575835
IN STOCK 		$1.32 2
2L548 LR090705
BOOT - BRAKE CALIPER
Brake Caliper / From: MG575835 		$35.73 2
2M008 LR123595
KIT - BRAKE LINING
Axle Set / From: MG575835 		$90.99 1
2M032 LR000751
KIT - CALIPER REPAIR
Includes 2 Slide Pin Bushes And 2 Caps / From: MG575835
IN STOCK 		$33.63 2
7B210 LR003977
KIT - RETAINING PIN
Pin - Slide / From: MG575835
IN STOCK 		$27.35 4
14A382 LR092060
WIRE - BRAKE PAD WEAR WARNING
From: MG575835 		$40.84 1
14A705A LR061399
BRACKET - WIRING
RH / From: MG575835 		$14.66 1
14A705A LR061401
BRACKET - WIRING
LH / From: MG575835 		$14.71 1
14A705B LR092059
BRACKET - WIRING
RH, To Caliper / From: MG575835 		$11.00 1
14A705B LR092058
BRACKET - WIRING
LH, To Caliper / From: MG575835 		$11.00 1
14A705C LR061398
BRACKET - WIRING
From: MG575835 		$13.16 4
14A705D LR066162
BRACKET - WIRING
RH / From: MG575835 		$12.82 1
14A705D LR066163
BRACKET - WIRING
LH / From: MG575835 		$12.92 1
19D528 LR000760
COVER - DUST
From: MG575835 		$8.81 4
2208 LR061096
SCREW - BLEED
With Cap / From: MG575835 		$7.09 2
2390 LR090701
SHIELD - BRAKE DISC SPLASH
RH / From: MG575835 		$82.20 1
2390 LR090702
SHIELD - BRAKE DISC SPLASH
LH / From: MG575835 		$82.20 1
2552 LR139981
CALIPER - BRAKE
With Non Painted Brake Calipers / RH / From: MG575835 		$312.35 1
2552 LR154996
CALIPER - BRAKE
With Non Painted Brake Calipers / LH / From: MG575835 		$323.10 1
19584 LR090821
GREASE - CHASSIS LUBRICATION
From: MG575835 		$8.34 1
