Name: Brake And Clutch Controls (6 Speed Manual Trans BG6, Halewood (UK)) ((V) FROMMH000001)
Rating: 5.0 (1 reviews)

Brake And Clutch Controls (6 Speed Manual Trans BG6, Halewood (UK)) ((V) FROMMH000001) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Brake And Clutch Controls (6 Speed Manual Trans BG6, Halewood (UK)) ((V) FROMMH000001)

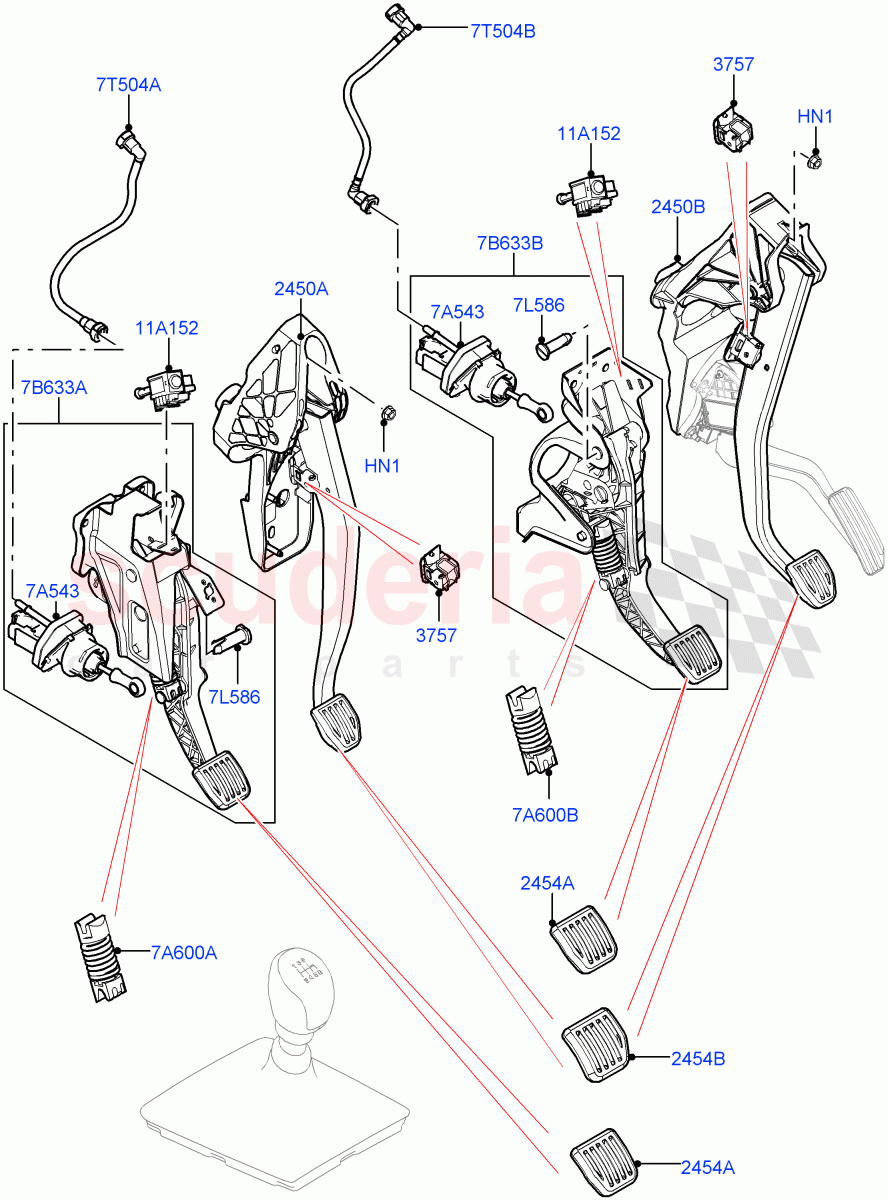

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR140056	NUT	$1.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR147284	CLIP	$6.64	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR139989	PEDAL AND BRACKET	$292.75	To Order
	LR153940	PEDAL AND BRACKET	$290.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139990	PEDAL AND BRACKET	$291.33	To Order
	LR153941	PEDAL AND BRACKET	$289.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007254	PAD - PEDAL	$27.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138092	PAD - PEDAL	$29.65	To Order
	LR138278	PAD - PEDAL	$30.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044439	CYLINDER - CLUTCH MASTER	$171.69	To Order
	LR044440	CYLINDER - CLUTCH MASTER	$176.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007255	PIN - LOCKING	$25.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003563	SWITCH - CLUTCH CONTROL	$27.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136412	SPRING - CLUTCH PEDAL RETRACTING	$45.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136414	SPRING - CLUTCH PEDAL RETRACTING	$24.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137624	PEDAL - CLUTCH	$256.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114636	PEDAL - CLUTCH	$206.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139991	HOSE - CLUTCH PEDAL	$13.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139992	HOSE - CLUTCH PEDAL	$11.80	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	LR140056	NUT	LR140056 NUT Hexagonal Head, M8 / From: MH000001	$1.34	-
7A543	LR044439	CYLINDER - CLUTCH MASTER	LR044439 CYLINDER - CLUTCH MASTER LHD / From: MH000001	$171.69	1
7A543	LR044440	CYLINDER - CLUTCH MASTER	LR044440 CYLINDER - CLUTCH MASTER RHD / From: MH000001	$176.86	1
7A600A	LR136412	SPRING - CLUTCH PEDAL RETRACTING	LR136412 SPRING - CLUTCH PEDAL RETRACTING LHD / Clutch Pedal / From: MH000001	$45.02	1
7A600B	LR136414	SPRING - CLUTCH PEDAL RETRACTING	LR136414 SPRING - CLUTCH PEDAL RETRACTING RHD / Clutch Pedal / From: MH000001	$24.18	1
7B633A	LR137624	PEDAL - CLUTCH	LR137624 PEDAL - CLUTCH LHD / With Clutch Master Cylinder / From: MH000001	$256.56	1
7B633B	LR114636	PEDAL - CLUTCH	LR114636 PEDAL - CLUTCH RHD / With Clutch Master Cylinder / From: MH000001	$206.49	1
7L586	LR007255	PIN - LOCKING	LR007255 PIN - LOCKING From: MH000001	$25.02	1
7T504A	LR139991	HOSE - CLUTCH PEDAL	LR139991 HOSE - CLUTCH PEDAL LHD / Clutch Master Cylinder To Brake Master Cylinder / From: MH000001	$13.32	1
7T504B	LR139992	HOSE - CLUTCH PEDAL	LR139992 HOSE - CLUTCH PEDAL RHD / Clutch Master Cylinder To Brake Master Cylinder / From: MH000001	$11.80	1
11A152	LR003563	SWITCH - CLUTCH CONTROL	LR003563 SWITCH - CLUTCH CONTROL From: MH000001	$27.88	1
2450A	LR139989	PEDAL AND BRACKET	LR139989 PEDAL AND BRACKET LHD / Brake Pedal / From: MH000001 / To: MH150868	$292.75	1
2450A	LR153940	PEDAL AND BRACKET	LR153940 PEDAL AND BRACKET LHD / Brake Pedal / From: MH150869	$290.48	1
2450B	LR139990	PEDAL AND BRACKET	LR139990 PEDAL AND BRACKET RHD / Brake Pedal / From: MH000001 / To: MH157091	$291.33	1
2450B	LR153941	PEDAL AND BRACKET	LR153941 PEDAL AND BRACKET RHD / Brake Pedal / From: MH157092	$289.08	1
2454A	LR007254	PAD - PEDAL	LR007254 PAD - PEDAL Clutch Pedal / From: MH000001	$27.80	1
2454B	LR138092	PAD - PEDAL	LR138092 PAD - PEDAL Standard Foot Pedal Pad Design / Brake Pedal / From: MH000001	$29.65	1
2454B	LR138278	PAD - PEDAL	LR138278 PAD - PEDAL Unique Met Finish Foot Pedals Pads / Brake Pedal / From: MH000001	$30.26	1
3757	LR147284	CLIP IN STOCK	LR147284 CLIP Brake Pedal / From: MH000001 IN STOCK	$6.64	1

Brake And Clutch Controls (6 Speed Manual Trans Bg6, Halewood (Uk)) ((V) Frommh000001)

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]
