Front Door Lock Controls (Halewood (Uk))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Front Door Lock Controls (Halewood (UK))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR038526 BOLT $1.40 To Order
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. $3.08 IN STOCK
Photo Part No Description Price (each) Stock
LR058114 PLUG - BLANKING $8.72 To Order
Photo Part No Description Price (each) Stock
LR000804 PLUG $2.00 To Order
Photo Part No Description Price (each) Stock
LR042467 BOLT $1.93 To Order
Photo Part No Description Price (each) Stock
LR059989 PLUG - BLANKING $5.07 To Order
Photo Part No Description Price (each) Stock
LR172460 RIVET - BLIND $4.48 To Order
Photo Part No Description Price (each) Stock
LR070434 LATCH - FRONT DOOR $180.64 To Order
LR070435 LATCH - FRONT DOOR $169.75 To Order
LR070436 LATCH - FRONT DOOR $188.72 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR059010 STRIKER - DOOR LOCKING MECHANISM $15.98 To Order
Photo Part No Description Price (each) Stock
LR115198 HANDLE - DOOR - OUTER $207.58 To Order
LR115199 HANDLE - DOOR - OUTER $175.67 To Order
LR115192 HANDLE - DOOR - OUTER $186.81 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR124746 SHIELD - DOOR LOCK $27.32 To Order
LR124747 SHIELD - DOOR LOCK $28.62 To Order
Photo Part No Description Price (each) Stock
LR093368 ESCUTCHEON - DOOR LOCK $11.64 To Order
LR093369 ESCUTCHEON - DOOR LOCK $10.88 To Order
Photo Part No Description Price (each) Stock
LR115184 HANDLE - COVER $32.11 To Order
LR115185 HANDLE - COVER $32.11 To Order
LR115186 HANDLE - COVER $32.11 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR124317 CABLE - DOOR LATCH $23.18 To Order
Photo Part No Description Price (each) Stock
LR124360 CABLE - DOOR LATCH $23.18 To Order
Photo Part No Description Price (each) Stock
LR124394 CABLE - DOOR LATCH $26.24 To Order
Photo Part No Description Price (each) Stock
LR070443 COVER - LATCH $36.30 To Order
LR070459 COVER - LATCH $36.30 To Order
Photo Part No Description Price (each) Stock
LR070444 COVER - LATCH $36.30 To Order
LR070460 COVER - LATCH $36.30 To Order
View All

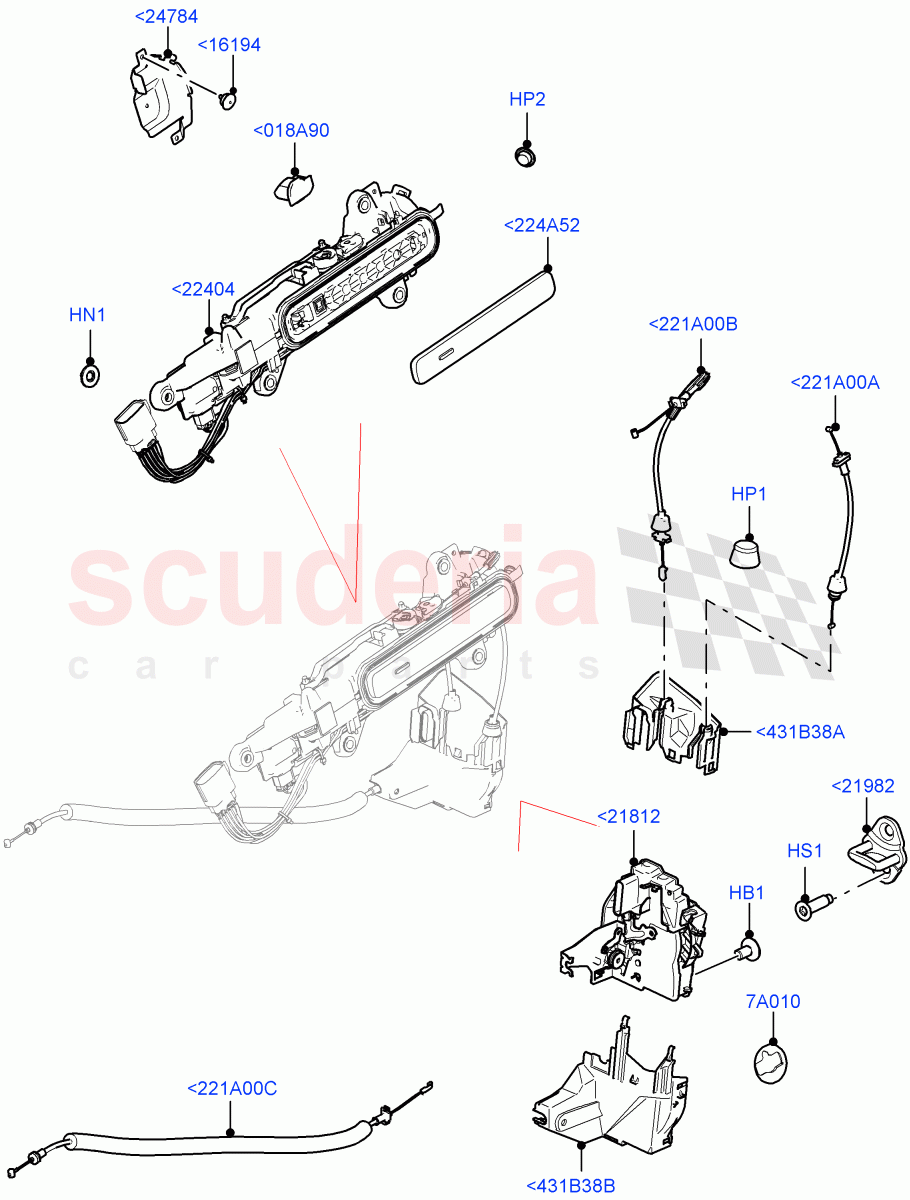

Front Door Lock Controls (Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<018A90 LR093368
ESCUTCHEON - DOOR LOCK
LHD / RH 		$11.64 1
<018A90 LR093369
ESCUTCHEON - DOOR LOCK
RHD / LH 		$10.88 1
<221A00A LR124317
CABLE - DOOR LATCH
RH/LH 		$23.18 2
<221A00B LR124360
CABLE - DOOR LATCH
Outside Door Release Handle To Latch, RH/LH 		$23.18 2
<221A00C LR124394
CABLE - DOOR LATCH
Handle, Inner, RH/LH 		$26.24 2
<224A52 LR115184
HANDLE - COVER
Keyless Entry/Start - Passive / RH, Primed / To: LH091382 		$32.11 1
<224A52 LR115185
HANDLE - COVER
With Keyless Start / RH, Primed 		$32.11 1
<224A52 LR115186
HANDLE - COVER
Keyless Entry/Start - Passive / LH, Primed / To: LH091382 		$32.11 1
<224A52 LR115187
HANDLE - COVER
With Keyless Start / LH, Primed 		$32.11 1
<224A52 LR135272
HANDLE - COVER
Keyless Entry/Start - Passive / RH, Primed / From: LH091383 		$30.96 1
<224A52 LR135275
HANDLE - COVER
Keyless Entry/Start - Passive / LH, Primed / From: LH091383 		$30.96 1
<431B38A LR070443
COVER - LATCH
RH, Upper 		$36.30 1
<431B38A LR070459
COVER - LATCH
LH, Upper 		$36.30 1
<431B38B LR070444
COVER - LATCH
RH, Lower 		$36.30 1
<431B38B LR070460
COVER - LATCH
LH, Lower 		$36.30 1
<16194 LR172460
RIVET - BLIND
4.8 x 15MM, Shield 		$4.48 2
<21812 LR070434
LATCH - FRONT DOOR
Double Locking Power Lock Latch, RHD / RH, Inner 		$180.64 1
<21812 LR070435
LATCH - FRONT DOOR
Central Locking Power Lock Latch, RHD / RH, Inner 		$169.75 1
<21812 LR070436
LATCH - FRONT DOOR
Double Locking Power Lock Latch, LHD / RH, Inner 		$188.72 1
<21812 LR070437
LATCH - FRONT DOOR
Central Locking Power Lock Latch, LHD / RH, Inner 		$166.40 1
<21812 LR070438
LATCH - FRONT DOOR
Double Locking Power Lock Latch, LHD / LH, Inner 		$181.82 1
<21812 LR070440
LATCH - FRONT DOOR
Central Locking Power Lock Latch, LHD / LH, Inner 		$163.55 1
<21812 LR070441
LATCH - FRONT DOOR
Double Locking Power Lock Latch, RHD / LH, Inner 		$190.57 1
<21812 LR070442
LATCH - FRONT DOOR
Central Locking Power Lock Latch, RHD / LH, Inner 		$152.43 1
<21982 LR059010
STRIKER - DOOR LOCKING MECHANISM
RH/LH 		$15.98 2
<22404 LR115198
HANDLE - DOOR - OUTER
Keyless Entry/Start - Passive / RH / To: LH033466 		$207.58 1
<22404 LR115199
HANDLE - DOOR - OUTER
With Keyless Start / RH / To: LH033466 		$175.67 1
<22404 LR115192
HANDLE - DOOR - OUTER
Keyless Entry/Start - Passive / LH / To: LH033466 		$186.81 1
<22404 LR115193
HANDLE - DOOR - OUTER
With Keyless Start / LH / To: LH033466 		$161.44 1
<22404 LR135304
HANDLE - DOOR - OUTER
Keyless Entry/Start - Passive / RH / From: LH033467 / To: LH106451 		$192.96 1
<22404 LR135556
HANDLE - DOOR - OUTER
With Keyless Start / RH / From: LH033467 / To: LH106451 		$156.97 1
<22404 LR178923
HANDLE - DOOR - OUTER
Keyless Entry/Start - Passive / LH / From: LH033467 / To: LH106451 		$207.56 1
<22404 LR135557
HANDLE - DOOR - OUTER
With Keyless Start / LH / From: LH033467 / To: LH106451 		$175.67 1
<22404 LR144884
HANDLE - DOOR - OUTER
Keyless Entry/Start - Passive / RH / From: LH106452 		$161.52 1
<22404 LR144885
HANDLE - DOOR - OUTER
With Keyless Start / RH / From: LH106452 		$141.19 1
<22404 LR144889
HANDLE - DOOR - OUTER
Keyless Entry/Start - Passive / LH / From: LH106452 		$160.39 1
<22404 LR144890
HANDLE - DOOR - OUTER
With Keyless Start / LH / From: LH106452 		$150.06 1
<24784 LR124746
SHIELD - DOOR LOCK
Double Locking Power Lock Latch, Keyless Entry/Start - Passive, RHD / RH 		$27.32 1
<24784 LR124747
SHIELD - DOOR LOCK
Double Locking Power Lock Latch, Keyless Entry/Start - Passive, LHD / LH 		$28.62 1
HB1 LR038526
BOLT
M6 X 11MM, On Door Latch 		$1.40 6
HN1 RYH500310
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer
IN STOCK 		$3.08 2
HP1 LR058114
PLUG - BLANKING
LHD / Seal 		$8.72 2
HP2 LR000804
PLUG
10 X 0.75 X 1.0, Access Hole Cover, On Door, RH/LH 		$2.00 2
HS1 LR042467
BOLT
M8 X 25MM, Striker 		$1.93 4
7A010 LR059989
PLUG - BLANKING
Latch, RH/LH 		$5.07 2
