Name: Rear Doors, Hinges & Weatherstrips (Door And Fixings) (Changsu (China))
Rating: 5.0 (1 reviews)

View All

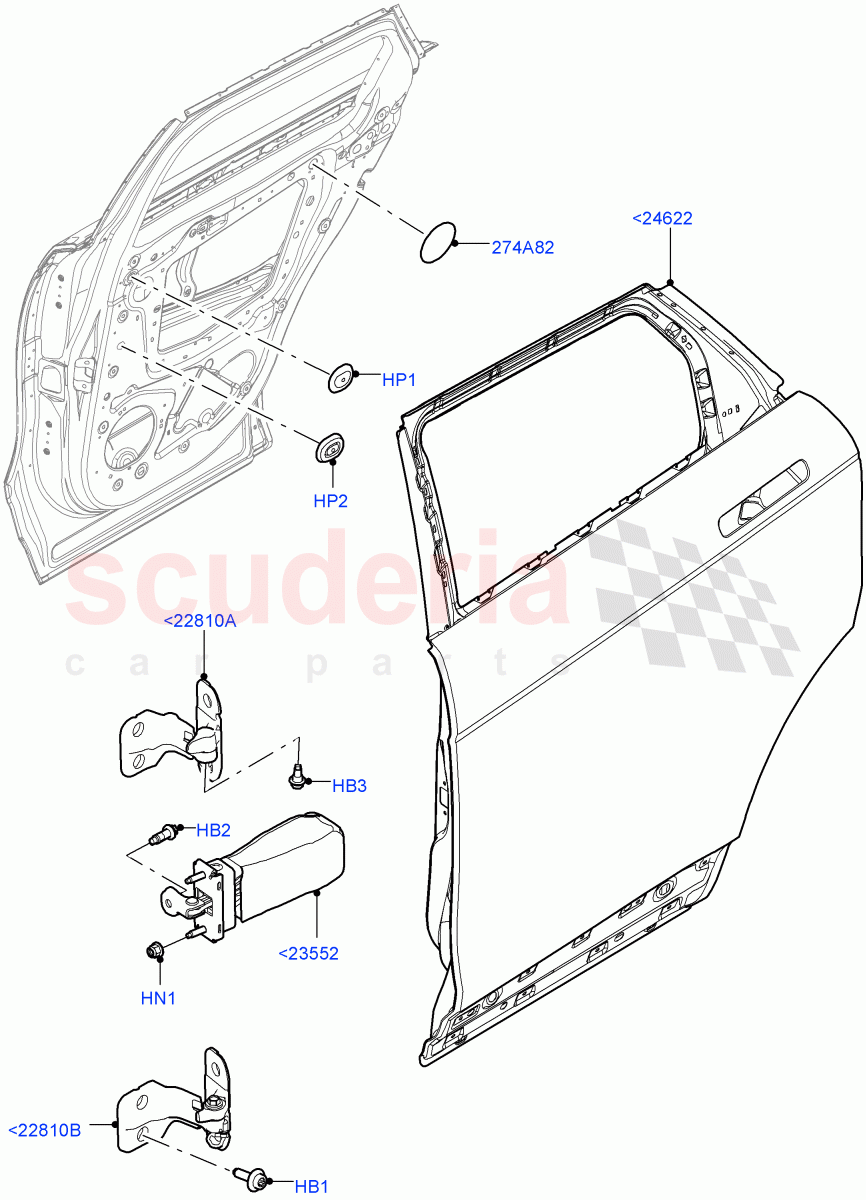

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR025399	BOLT	$2.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032819	BOLT AND WASHER - TORX HEAD	$1.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037063	BOLT	$1.80	To Order

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	$0.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR003553	PLUG	$3.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127905	PLUG	$4.38	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR086056	SEAL - COVER	$0.67	IN STOCK

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<22810A	LR056353	HINGE - DOOR	LR056353 HINGE - DOOR RH, Upper	$73.16	2
<22810A	LR056354	HINGE - DOOR	LR056354 HINGE - DOOR LH, Upper	$78.15	2
<22810B	LR056351	HINGE - DOOR	LR056351 HINGE - DOOR RH, Lower	$78.15	2
<22810B	LR056352	HINGE - DOOR	LR056352 HINGE - DOOR LH, Lower	$69.99	2
<23552	LR117206	CHECK - DOOR	LR117206 CHECK - DOOR Standard Wheelbase / RH/LH	$51.52	2
<23552	LR155732	CHECK - DOOR	LR155732 CHECK - DOOR Long Wheelbase / RH/LH / From: MG575835	$51.52	2
<24622	LR138384	DOOR - REAR - LESS HINGES	LR138384 DOOR - REAR - LESS HINGES LH / To: MG575834	$1,193.61	1
<24622	LR138383	DOOR - REAR	LR138383 DOOR - REAR RH / To: MG575834	$1,193.61	1
<24622	LR155799	DOOR - REAR	LR155799 DOOR - REAR RH / From: MG575835	$1,193.61	1
<24622	LR155798	DOOR - REAR	LR155798 DOOR - REAR LH / From: MG575835	$1,155.52	1
HB1	LR025399	BOLT	LR025399 BOLT M8 X 25MM	$2.00	16
HB2	LR032819	BOLT AND WASHER - TORX HEAD	LR032819 BOLT AND WASHER - TORX HEAD M8 X 20MM	$1.23	4
HB3	LR037063	BOLT	LR037063 BOLT M7 X 14.4	$1.80	4
HN1	FY106046	NUT - HEX. IN STOCK	FY106046 NUT - HEX. Hexagonal Head, M6 IN STOCK	$0.67	4
HP1	LR003553	PLUG	LR003553 PLUG 19.5 X 24.5MM	$3.35	2
HP2	LR127905	PLUG	LR127905 PLUG	$4.38	2
274A82	LR086056	SEAL - COVER IN STOCK	LR086056 SEAL - COVER IN STOCK	$0.67	9

Rear Doors, Hinges & Weatherstrips (Door And Fixings) (Changsu (China))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]
