Name: Inlet Manifold (2.0L AJ21D4 Diesel Mid, Itatiaia (Brazil))
Rating: 5.0 (1 reviews)

View All

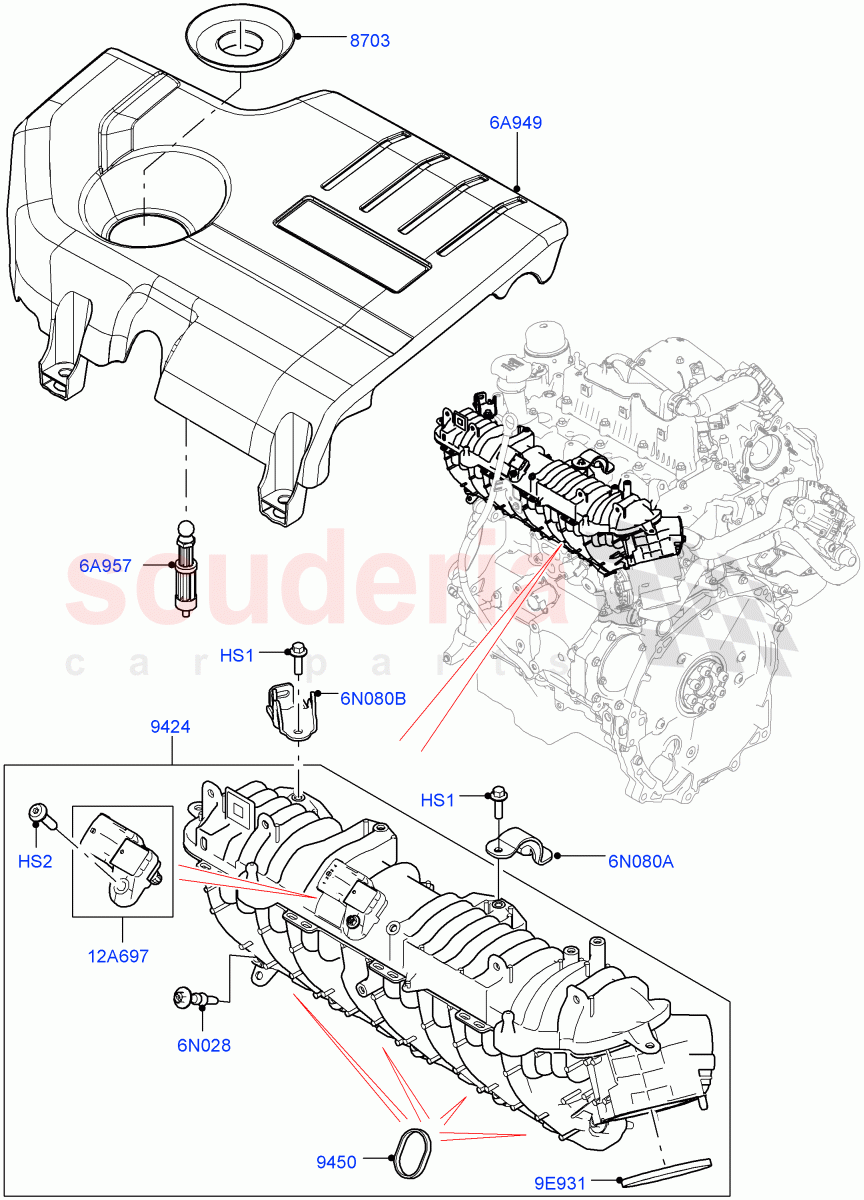

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR130401	SCREW	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074074	OIL SPILL GAITER	$13.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139770	MANIFOLD - INLET	$745.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139769	GASKET - INTAKE MANIFOLD	$11.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139670	COVER - ENGINE TOP	$250.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010871	STUD - BALL	$7.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074085	BOLT - SPECIAL	$5.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139766	GASKET - THROTTLE	$14.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR144572	SENSOR - AIR TEMPERATURE & PRESSURE	$98.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139685	BRACKET - MANIFOLD	$72.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139684	BRACKET - MANIFOLD	$56.24	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR073655	SCREW IN STOCK	LR073655 SCREW Bracket, Hexagonal Head, M6 X 20MM IN STOCK	$1.60	4
HS2	LR130401	SCREW	LR130401 SCREW Hexagonal Head, M5 x 20MM, Sensor	$0.76	1
6A949	LR139670	COVER - ENGINE TOP	LR139670 COVER - ENGINE TOP Engine	$250.14	1
6A957	LR010871	STUD - BALL	LR010871 STUD - BALL Engine Cover	$7.09	1
6N028	LR074085	BOLT - SPECIAL	LR074085 BOLT - SPECIAL M6 x 42MM, Manifold To Cylinder Head	$5.05	9
6N080A	LR139685	BRACKET - MANIFOLD	LR139685 BRACKET - MANIFOLD LH	$72.38	1
6N080B	LR139684	BRACKET - MANIFOLD	LR139684 BRACKET - MANIFOLD RH	$56.24	1
9E931	LR139766	GASKET - THROTTLE	LR139766 GASKET - THROTTLE Throttle Body To Intake	$14.43	1
12A697	LR144572	SENSOR - AIR TEMPERATURE & PRESSURE	LR144572 SENSOR - AIR TEMPERATURE & PRESSURE Pressure, Temperature	$98.93	1
8703	LR074074	OIL SPILL GAITER	LR074074 OIL SPILL GAITER Oil Spill	$13.42	1
9424	LR139770	MANIFOLD - INLET	LR139770 MANIFOLD - INLET	$745.32	1
9450	LR139769	GASKET - INTAKE MANIFOLD	LR139769 GASKET - INTAKE MANIFOLD Inlet Manifold	$11.34	8

Inlet Manifold (2.0L Aj21D4 Diesel Mid, Itatiaia (Brazil))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]
