Cylinder Block And Plugs (2.0L Aj21D4 Diesel Mid, Itatiaia (Brazil))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Cylinder Block And Plugs (2.0L AJ21D4 Diesel Mid, Itatiaia (Brazil))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR101794 BOLT $1.69 To Order
Photo Part No Description Price (each) Stock
LR073637 DOWEL - PIN $2.48 To Order
Photo Part No Description Price (each) Stock
RZM500070 PIN - SPECIAL $1.05 IN STOCK
Photo Part No Description Price (each) Stock
LR073636 PLUG - BLANKING $4.43 To Order
Photo Part No Description Price (each) Stock
LR163193 PLUG - ENGINE $4.25 To Order
Photo Part No Description Price (each) Stock
LR163194 PLUG - ENGINE $11.28 To Order
Photo Part No Description Price (each) Stock
LR163195 PLUG - ENGINE $11.28 To Order
Photo Part No Description Price (each) Stock
LR095786 O-RING $4.68 IN STOCK
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.60 IN STOCK
LR073655 SCREW $1.60 IN STOCK
Photo Part No Description Price (each) Stock
LR073666 SCREW $1.43 To Order
Photo Part No Description Price (each) Stock
LR101795 SCREW $1.21 To Order
Photo Part No Description Price (each) Stock
LR073720 SCREW $1.59 To Order
Photo Part No Description Price (each) Stock
LR162083 STUD $1.75 To Order
Photo Part No Description Price (each) Stock
LR126160 PIN - FASTENING $0.59 IN STOCK
Photo Part No Description Price (each) Stock
LR133742 COVER - CYLINDER FRONT $99.41 To Order
Photo Part No Description Price (each) Stock
LR139681 VALVE - PISTON OIL COOLNG $175.10 To Order
Photo Part No Description Price (each) Stock
LR107013 KIT - "O" RING $14.42 To Order
Photo Part No Description Price (each) Stock
LR095896 NOZZLE - PISTON COOLING $17.26 To Order
Photo Part No Description Price (each) Stock
LR121757 SEAL - CRANKSHAFT OIL - FRONT $67.96 To Order
Photo Part No Description Price (each) Stock
LR148201 CONNECTOR - VACUUM TUBE $53.85 To Order
Photo Part No Description Price (each) Stock
LR057802 DOWEL - PIN $3.52 IN STOCK
Photo Part No Description Price (each) Stock
LR084238 INSULATOR PAD - CYLINDER BLOCK $34.68 To Order
Photo Part No Description Price (each) Stock
LR083682 INSULATOR - ENGINE COMPARTMENT $53.35 To Order
Photo Part No Description Price (each) Stock
LR140692 INSULATOR - CYLINDER HEAD $18.44 To Order
View All

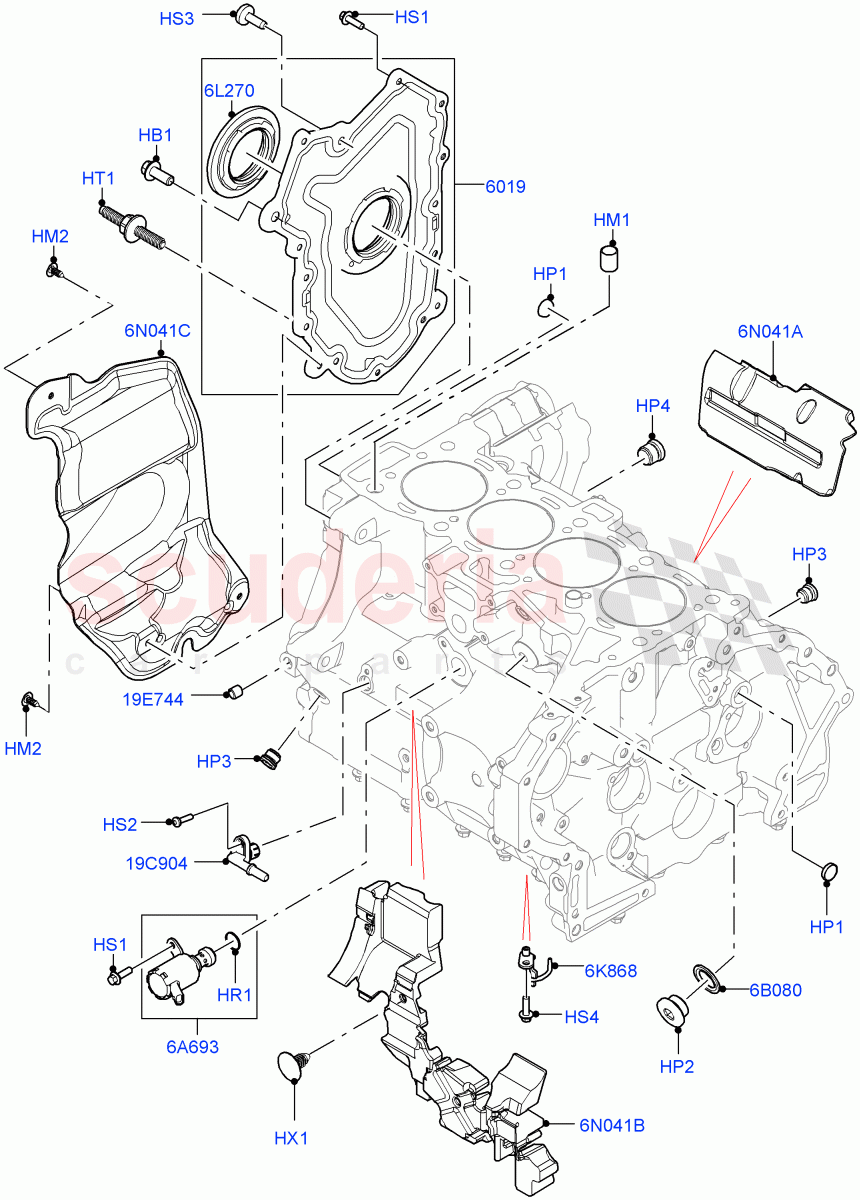

Cylinder Block And Plugs (2.0L AJ21D4 Diesel Mid, Itatiaia (Brazil)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR101794
BOLT
Cover, M10 X 25MM, Torx 		$1.69 1
HM1 LR073637
DOWEL - PIN
16.5 x 20, Pin - Dowell 		$2.48 2
HM2 RZM500070
PIN - SPECIAL
6.4 X 20.4, Push Pin
IN STOCK 		$1.05 3
HP1 LR073636
PLUG - BLANKING
18MM, Blanking 		$4.43 4
HP2 LR163193
PLUG - ENGINE
M22 X 1.5MM 		$4.25 1
HP3 LR163194
PLUG - ENGINE
M14 x 9 mm 		$11.28 2
HP4 LR163195
PLUG - ENGINE
M18 x 1.5 		$11.28 1
HR1 LR095786
O-RING
15.3MM, Valve - piston oil cooling
IN STOCK 		$4.68 1
HS1 LR073655
SCREW
Cover, Hexagonal Head, M6 X 20MM
IN STOCK 		$1.60 12
HS1 LR073655
SCREW
Hexagonal Head, M6 X 20MM, Valve - piston oil cooling
IN STOCK 		$1.60 1
HS2 LR073666
SCREW
M5 x 20MM, Vacuum Connector 		$1.43 1
HS3 LR101795
SCREW
M8X25, Torx 		$1.21 1
HS4 LR073720
SCREW
M6 X 20MM, Oil Lubrication Jet 		$1.59 4
HT1 LR162083
STUD
Cover, M6 X 20 + M6 X 16 		$1.75 1
HX1 LR126160
PIN - FASTENING
6.5 x 6, Insulator
IN STOCK 		$0.59 1
6A693 LR139681
VALVE - PISTON OIL COOLNG 		$175.10 1
6B080 LR107013
KIT - "O" RING 		$14.42 1
6K868 LR095896
NOZZLE - PISTON COOLING 		$17.26 4
6L270 LR121757
SEAL - CRANKSHAFT OIL - FRONT 		$67.96 1
6N041A LR084238
INSULATOR PAD - CYLINDER BLOCK
Cylinder Block, Rear 		$34.68 1
6N041B LR083682
INSULATOR - ENGINE COMPARTMENT
Cylinder Block, Front 		$53.35 1
6N041C LR140692
INSULATOR - CYLINDER HEAD
Front Cover to Cyl Block 		$18.44 1
19C904 LR148201
CONNECTOR - VACUUM TUBE 		$53.85 1
19E744 LR057802
DOWEL - PIN
Air Conditioning Compressor Bracket,
IN STOCK 		$3.52 1
6019 LR133742
COVER - CYLINDER FRONT
Engine Front, Includes Seal 		$99.41 1
