Name: Floor Trim (Changsu (China))
Rating: 4.2 (1 reviews)

Floor Trim (Changsu (China)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Floor Trim (Changsu (China))

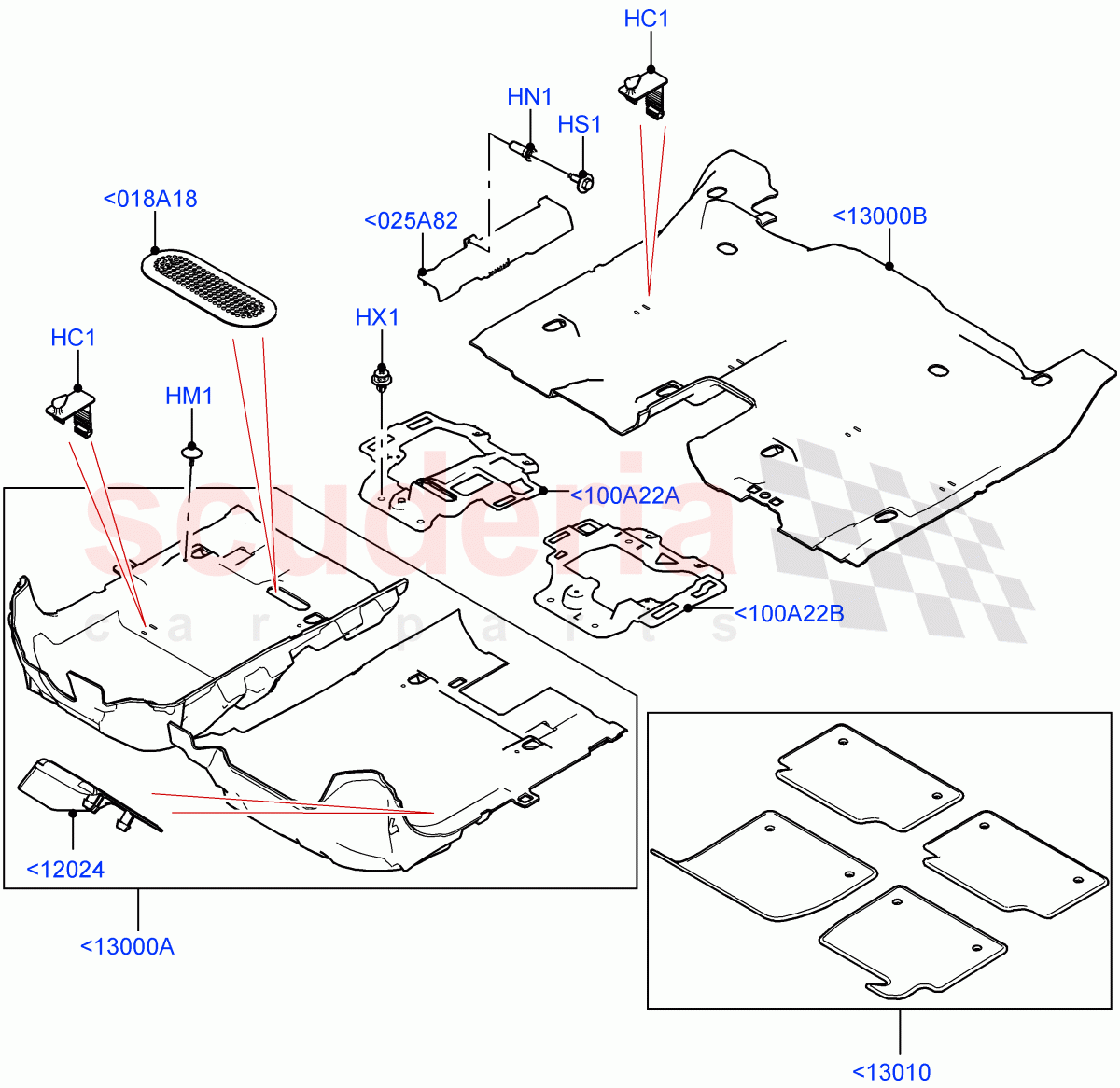

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR030413	CLIP - FLOOR MAT RETENTION	$2.87	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR000891	PIN - FASTENING	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	DYH500010	NUT	$3.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006025	BOLT	$1.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR005896	RETAINER - RIVET	$1.49	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR171038	FOOTREST	$9.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114751	MATS - FLOOR - CARPET - SET	$221.18	To Order
	LR114753	MATS - FLOOR - CARPET - SET	$165.62	To Order
	LR114755	MATS - FLOOR - CARPET - SET	$331.73	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR094280	COVER - VENT AIR	$87.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114455	MOULDING - CARPET SUPPORT	$17.28	To Order
	LR114467	MOULDING - CARPET SUPPORT	$17.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124679	CARPET - FLOOR	$618.98	To Order
	LR124674	CARPET - FLOOR	$618.98	To Order
	LR155309	CARPET - FLOOR	$618.98	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR155311	CARPET - FLOOR	$549.06	To Order
	LR114385	CARPET - FLOOR	$533.06	To Order
	LR114385	CARPET - FLOOR	$533.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128861	BRACKET - FLOOR CARPET MOUNTING	$30.38	To Order
	LR137426	BRACKET - FLOOR CARPET MOUNTING	$28.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114452	BRACKET - FLOOR CARPET MOUNTING	$23.53	To Order
	LR140250	BRACKET - FLOOR CARPET MOUNTING	$26.72	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<018A18	LR094280	COVER - VENT AIR	LR094280 COVER - VENT AIR	$87.24	1
<025A82	LR114455	MOULDING - CARPET SUPPORT	LR114455 MOULDING - CARPET SUPPORT RH	$17.28	1
<025A82	LR114467	MOULDING - CARPET SUPPORT	LR114467 MOULDING - CARPET SUPPORT LH	$17.24	1
<100A22A	LR128861	BRACKET - FLOOR CARPET MOUNTING	LR128861 BRACKET - FLOOR CARPET MOUNTING RH / To: LG564746	$30.38	1
<100A22A	LR137426	BRACKET - FLOOR CARPET MOUNTING	LR137426 BRACKET - FLOOR CARPET MOUNTING RH / From: LG564747	$28.59	1
<100A22B	LR114452	BRACKET - FLOOR CARPET MOUNTING	LR114452 BRACKET - FLOOR CARPET MOUNTING LH / To: LG563443	$23.53	1
<100A22B	LR140250	BRACKET - FLOOR CARPET MOUNTING	LR140250 BRACKET - FLOOR CARPET MOUNTING LH / From: LG563444	$26.72	1
<12024	LR171038	FOOTREST	LR171038 FOOTREST	$9.08	1
<13000A	LR124679	CARPET - FLOOR	LR124679 CARPET - FLOOR Less Fire Extinguisher / Front / To: MG575834	$618.98	1
<13000A	LR124674	CARPET - FLOOR	LR124674 CARPET - FLOOR With Fire Extinguisher / Front / To: MG575834	$618.98	1
<13000A	LR155309	CARPET - FLOOR	LR155309 CARPET - FLOOR Long Wheelbase / Front / From: MG575835	$618.98	1
<13000A	LR134922	CARPET - FLOOR	LR134922 CARPET - FLOOR Less Fire Extinguisher, Standard Wheelbase / Front / From: MG575835	$567.67	1
<13000B	LR155311	CARPET - FLOOR	LR155311 CARPET - FLOOR Long Wheelbase / Rear / From: MG575835	$549.06	1
<13000B	LR114385	CARPET - FLOOR	LR114385 CARPET - FLOOR Rear / To: MG575834	$533.06	1
<13000B	LR114385	CARPET - FLOOR	LR114385 CARPET - FLOOR Standard Wheelbase / Rear / From: MG575835	$533.06	1
<13010	LR114751	MATS - FLOOR - CARPET - SET	LR114751 MATS - FLOOR - CARPET - SET Front Floor Carpet Mats / To: MG575834	$221.18	1
<13010	LR114753	MATS - FLOOR - CARPET - SET	LR114753 MATS - FLOOR - CARPET - SET Front Floor Mats - Premium / To: MG575834	$165.62	1
<13010	LR114755	MATS - FLOOR - CARPET - SET	LR114755 MATS - FLOOR - CARPET - SET Floor Mats - First Edition / To: MG575834	$331.73	1
<13010	LR114751	MATS - FLOOR - CARPET - SET	LR114751 MATS - FLOOR - CARPET - SET Front Floor Carpet Mats, Standard Wheelbase / From: MG575835	$221.18	1
<13010	LR114753	MATS - FLOOR - CARPET - SET	LR114753 MATS - FLOOR - CARPET - SET Front Floor Mats - Premium, Standard Wheelbase / From: MG575835	$165.62	1
<13010	LR114755	MATS - FLOOR - CARPET - SET	LR114755 MATS - FLOOR - CARPET - SET Front Floor Mats - Black And Red LE, Standard Wheelbase / From: MG575835	$331.73	1
<13010	LR155310	MATS - FLOOR - CARPET - SET	LR155310 MATS - FLOOR - CARPET - SET Front Floor Mats - Premium, Long Wheelbase / From: MG575835	$366.60	1
HC1	LR030413	CLIP - FLOOR MAT RETENTION IN STOCK	LR030413 CLIP - FLOOR MAT RETENTION Front And Rear IN STOCK	$2.87	8
HM1	LR000891	PIN - FASTENING	LR000891 PIN - FASTENING 15 X 6, Floor Carpets, Pin	$0.63	4
HN1	DYH500010	NUT	DYH500010 NUT M6, Secures Carpet Support Mouldings	$3.64	2
HS1	LR006025	BOLT IN STOCK	LR006025 BOLT Bolt And Washer, M6 X 15 Hex IN STOCK	$1.38	2
HX1	LR005896	RETAINER - RIVET IN STOCK	LR005896 RETAINER - RIVET 10 X 4 - 5, Fixes Bracket To Carpet IN STOCK	$1.49	8
